Type: Dryer-Twin Shell & Double Cone
Manufacturer: Pfaudler
Condition: Re-glassed
Material: Glasslined
Capacity Design: 2.8 m3 (100 ft3)
Capacity Operating: 1.98 m3 (70 ft3)

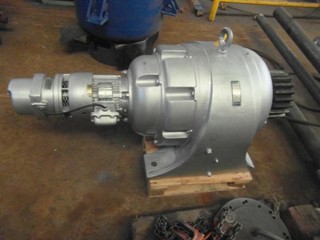

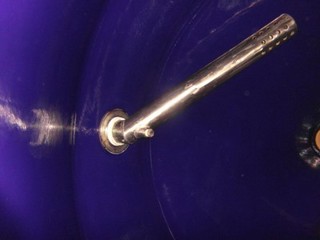

standard 6' diameter bucket with 18" diameter manway and 8" diameter outlet with 9 to 45 rpm on bucket with Hastelloy vacuum arm with stuffing box. With bull and pinion Reconditioned gear box, driven by 3HP XP class 1, div 2 , 3 phase, 60HZ, 230, 460 Volt motor with electric 10 ft-lbs. brake.
Vessel Pressure: 2.1 bar (30 psi). Vessel Temperature: 232.2 °C (450 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 176.7 °C (350 °F). Full Vacuum: Yes.
Type: Dryer-Twin Shell & Double Cone

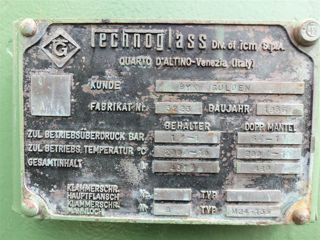

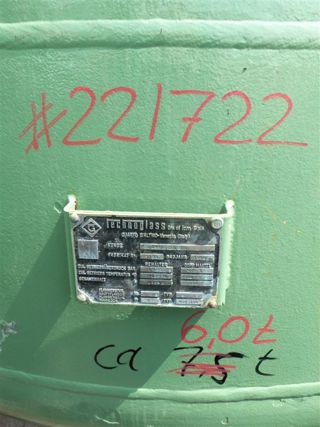

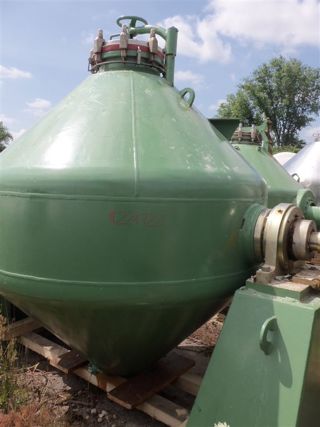

Manufacturer: Technoglass
Model: DA-4000l
Condition: Used
Material: Glasslined
Capacity Design: 4 m3 (141.3 ft3)
Capacity Operating: 3 m3 (105.9 ft3)
internal pressure -1/1 bar @ -10/200 deg C (4310ltr), jacket 6 bar @ -10/200 deg C (480ltr) 1m high top and bottom cones gear driven by a vari-speed drive 3/50/300/660 volt Hastelloy vacuum arm, mechanical seal, rotary union joint top cone with 1-450mm manway, bottom cone with 1-250mm discharge with valve (1) s/steel plate heat exchanger, 70 kw, pressure 16 bar @ 150 deg C (1) 8-28 m3/hr c/steel centrifugal pump, 14.5-9.5m hd,
Vessel Pressure: 1 bar (14.5 psi). Vessel Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Full Vacuum: Yes.
Type: Dryer-Twin Shell & Double Cone
Manufacturer: Patterson Process Equipment
Condition: Used
Material: Stainless Steel 316
Capacity Design: 4 m3 (141 ft3)
Capacity Operating: 2.8 m3 (99 ft3)

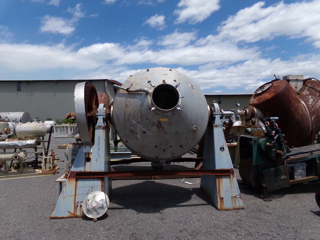

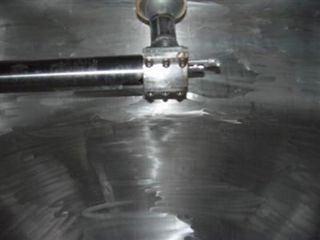

Shell 6' diameter x 20" straight side x 4' long conical sections With vacuum arm.
Vessel Pressure: 1.38 bar (20 psi). Vessel Temperature: 148.9 °C (300 °F). Jacket Pressure: 2.1 bar (30 psi). Jacket Temperature: 148.9 °C (300 °F). Full Vacuum: Yes. Product Density: 1.42 m3 (50 ft3).
Type: Dryer-Twin Shell & Double Cone
Manufacturer: Patterson Kelly
Condition: Used
Material: Stainless Steel 304
Capacity Design: 3.8 m3 (133 ft3)
Capacity Operating: 2.8 m3 (100 ft3)

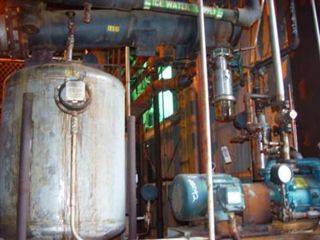

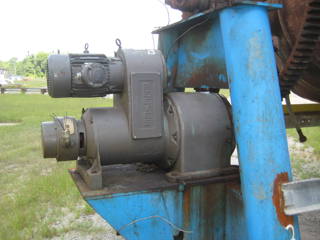

vacuum tumble dryer system. jacket serial number 199161. (Jacket side only built to ASME code). Rated density 75 lbs/ cubic foot. With stainless steel vacuum arm. Top heads have (2) 8" quick opening manways , bottom has an 18" discharge set up for valve mounting. Shell turning speed: 0.86- 73 RPM. Driven by 10 HP 3/60/440 V XP motor V belt driven by Reeves varispeed gear. Skid mounted vacuum system consists of a 168 square foot condenser manufactured by Yula, serial number 9034, rated 100 PSI & 250 degrees F on shell side, 100 PSI @ 250 degrees F on tube side. National Board number 5118. Tubes, tube sheets and heads made of 304LSS; Shell carbon steel. Shell 10" diameter x 4'10" long. With Graham 316 stainless steel two stage liquid ring vacuum pump model 2V5212 ( rated for 199 cfm) ,mechanical seal on shaft, driven by 15/10 HP 3/60/230/460V, 1760 RPM EX Marathon motor. With vertical 225 gallon separator tank. Gas contact area's are stainless steel. Also includes a PK Heating /cooling system (250 degrees F at 30 psi), electric immersion with two Chromalux Immersion elements, Model # TM-126015, 60 Kw, 3 ph, 480 volt., Durco Mark II centrifugal pump 1.5 x 1 x 6/50 driven by a 1 hp electric motor, and a 30 gallon expansion tank. W202092 stored at DW12 (S).JB
Jacket Pressure: 2.1 bar (30 psi). Jacket Temperature: 176.7 °C (350 °F). Full Vacuum: Yes. Product Density: 2.1 m3 (75 ft3).
Twin shell and double cone dryers are rotating batch dryers used for low-shear, uniform drying of powders, granules and crystalline materials. Their simple, sealed design makes them ideal for vacuum drying and mixing sensitive or friable compounds. With over 47 years of experience, IPP offers a large inventory of secondhand and surplus twin shell and double cone dryers from 20 complete plant sites and more than 15,000 ready-to-ship systems.
These dryers operate by rotating the vessel to gently tumble the product while applying indirect heat through a jacket. Vacuum can be applied to reduce drying temperature, which is especially valuable for thermally sensitive materials or solvent removal.
These dryers are built for corrosion resistance, cleanability and safe operation under vacuum:
Learn more about vacuum tumble dryers and their industrial applications from Pharmaceutical Technology.
Search the IPP inventory or contact IPP’s equipment experts to find a used, secondhand or surplus twin shell or double cone dryer. With global reach and systems ready to ship, IPP helps you save time and money on premium processing equipment.
