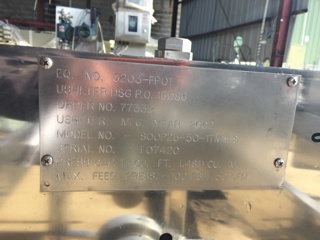

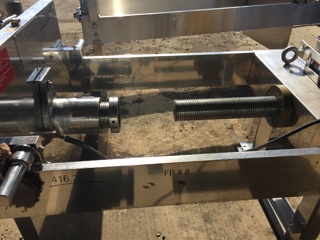

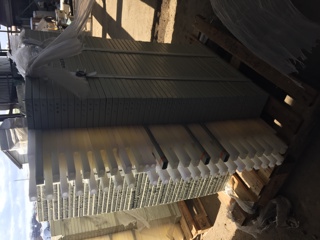

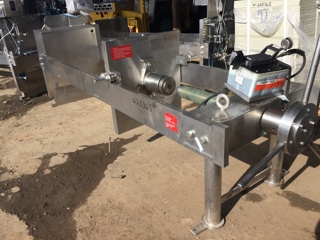

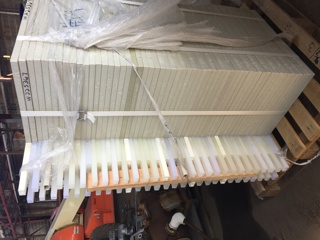

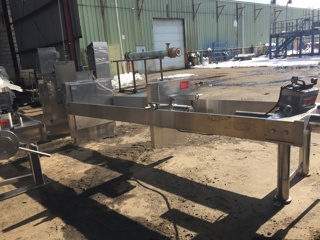

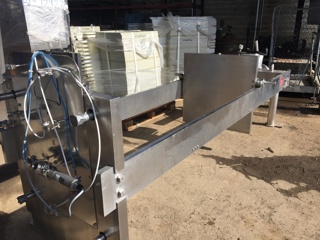

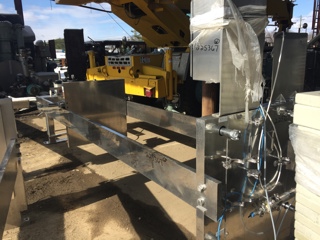

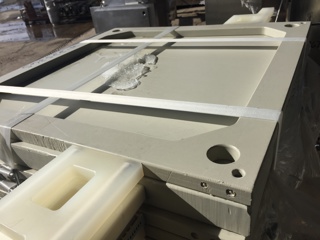

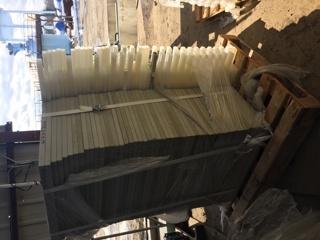

Type: Filter

Subtype: Press

Manufacturer: Perrin

Model: 800—P25-50-37-17MNLS

Condition: Used

Material: Polypropylene

Filtration Area: 33 m² (355.2 ft²)

Pressure: 6.9 bar (100 psi)

• Plates are FDA approved and non gasketed.

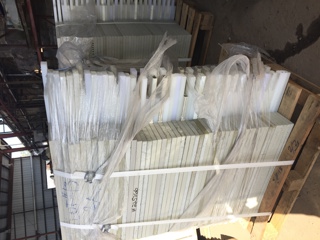

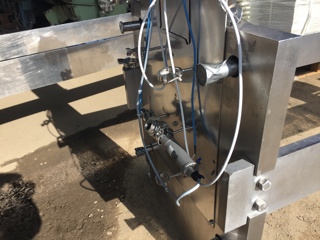

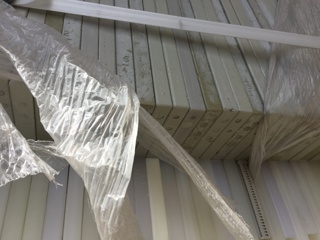

• Polypropylene plates and frames and all Stainless Steel skeleton.
• Approximately 38 chambers.
• 4 eye closed delivery, 1" inlet and outlets.

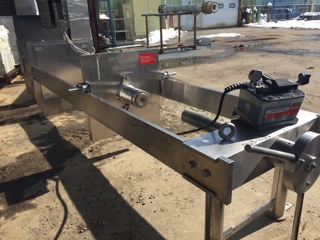

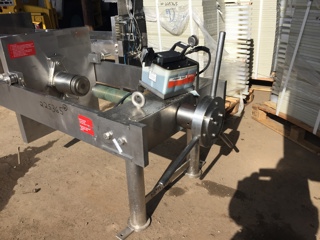

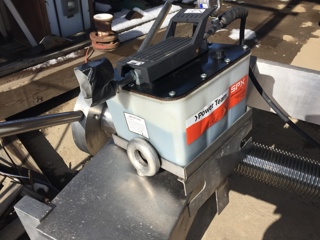

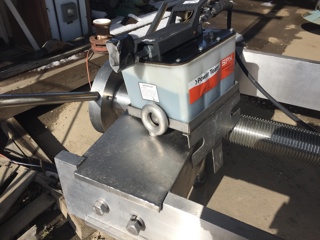

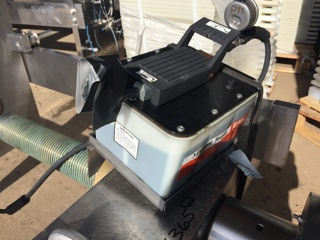

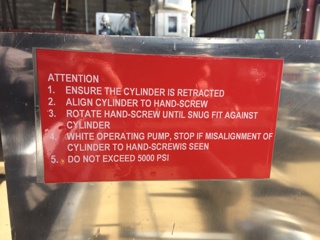

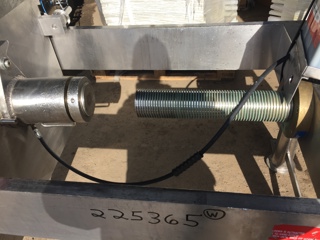

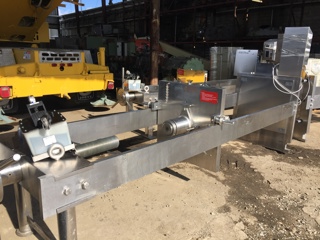

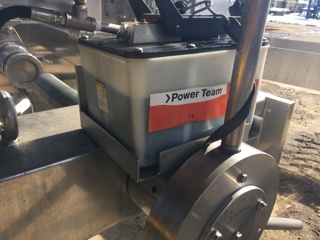

• Manual closure with Hydraulic Assist manufactured by SPX.

Temperature: 21.1 °C (70 °F). Cake Volume: 0.46 m3 (16.3 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 38. Number of Plates: 80. Plate MOC: Polypropylene. Skeleton MOC: 316 SS with a 20 Ra polish. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in). Plates Shifted By: Manual.

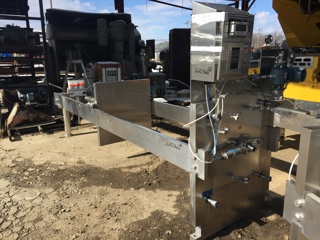

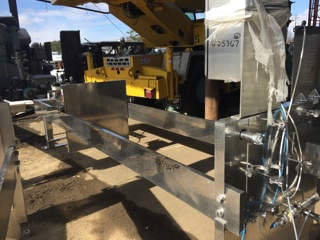

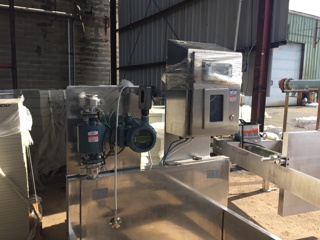

Type: Filter

Subtype: Press

Manufacturer: Perrin

Model: 100-M-30-37-PF1.0

Condition: Used

Material: Polypropylene

Filtration Area: 37 m² (398.3 ft²)

Pressure: 6.9 bar (100 psi)

• Plates are FDA approved- Non Gasketed.
• Polypropylene plates and frames and all Stainless Steel skeleton.
• 44 chambers.4 eye closed delivery,1" inlet and outlet.

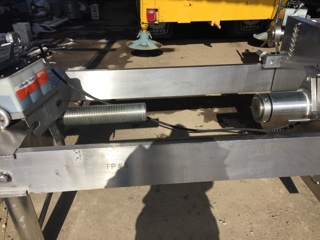

• Manual closure with Hydraulic Assist manufactured by SPX.

Temperature: 21.1 °C (70 °F). Cake Volume: 0.46 m3 (16.3 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 44. Number of Plates: 90. Plate MOC: Polypropylene. Skeleton MOC: 316 SS with a 20Ra finish. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in). Plates Shifted By: Manual.

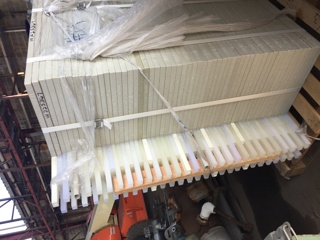

Type: Filter

Subtype: Press

Manufacturer: Perrin

Model: 100-M-30-37-PF1.0

Condition: Used

Material: Polypropylene

Filtration Area: 37 m² (398.3 ft²)

Pressure: 6.9 bar (100 psi)

• Plates are FDA approved, non Gasketed.

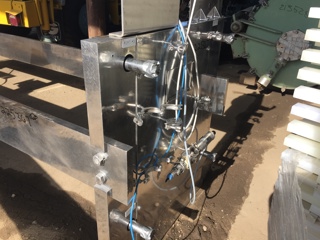

• Polypropylene plates and frames and all Stainless Steel skeleton.
• 95 plates with 44 chambers.
• 4 eye closed delivery, 1" inlet and outlet.
• Manual closure with Hydraulic Assist manufactured by SPX.

Temperature: 21.1 °C (70 °F). Cake Volume: 462 m3 (16,300 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 44. Number of Plates: 95. Plate MOC: Polypropylene. Skeleton MOC: 316 SS with a 20 Ra finish. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in). Plates Shifted By: Manual.

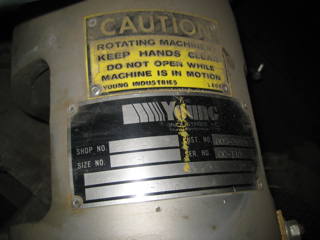

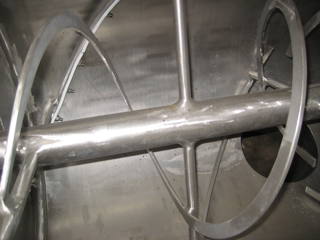

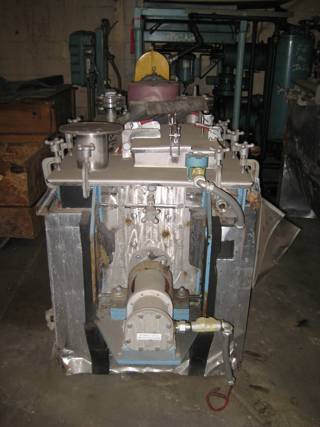

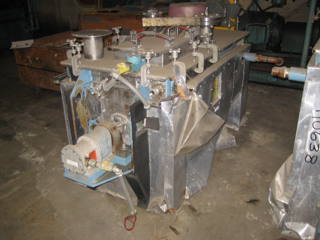

Type: Mixer-Ribbon & Paddle

Manufacturer: Young Industrial Machinery

Condition: Used

Material: Stainless Steel 304

Design Capacity: 0.28 m3 (10 ft3)

Operating Capacity: 0.17 m3 (6 ft3)

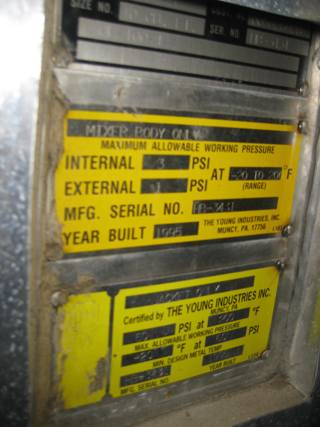

CS jacketed ribbon blender Internal pressure rated 3 psi @ 200 deg. F to -20 deg. F min.

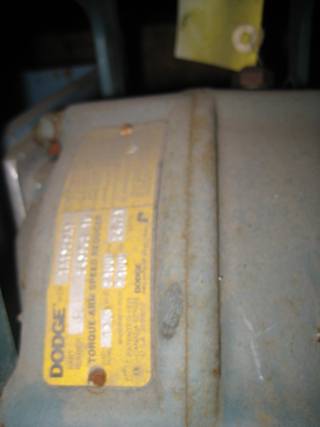

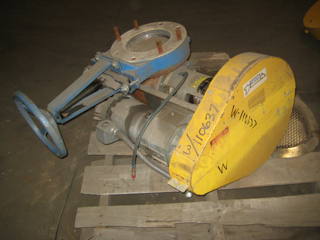

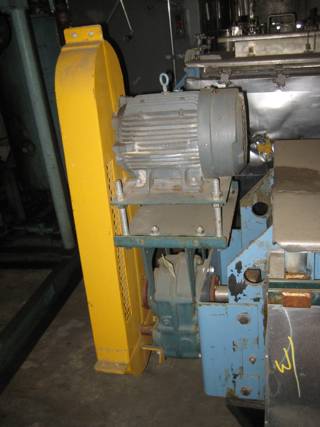

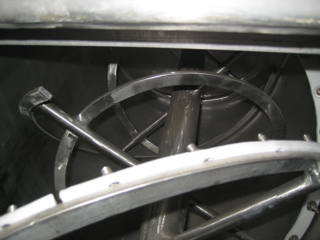

Jacket is rated 60 psi @ 200 deg. F to -20 deg. F min. Blender configuration is full flat top cover with center bottom outlet. Shaft has stuffing box, ribbon design is removable, continuous double ribbon with Teflon wipers Shaft is driven through a Dodge shaft mounted reducer with a 24.7/1 gear reducer. Top cover is clamp on removable design. Top cover openings include 2-4", 1-8", 2-1", and 1 top feed/manway opening of 12"x16". Vessel is fully insulated. Center bottom outlet is approx. 6" and discharges through a knife gate into a Young motorized 2-3 hp delumper.

Vessel Pressure: 13.8 bar (200 psi). Vessel Temperature: -16.1 °C (3 °F). Ribbon Type: Double Helix.

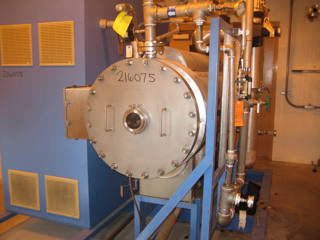

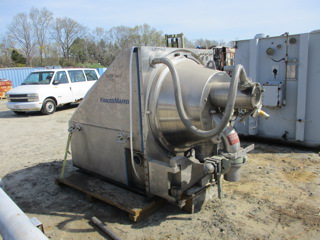

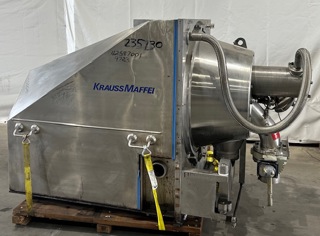

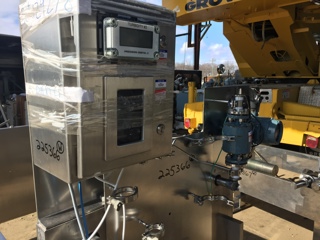

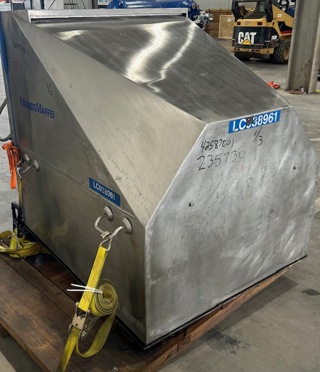

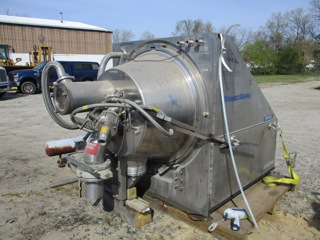

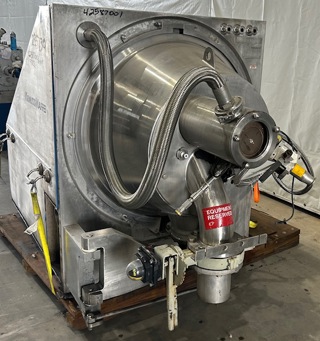

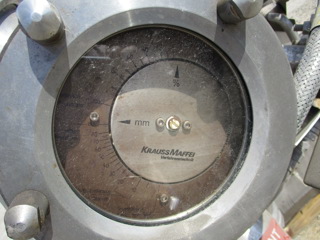

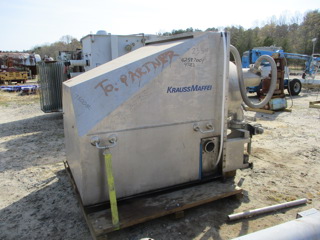

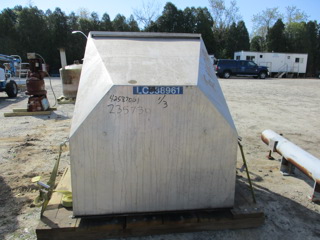

Type: Centrifuge-Peeler

Manufacturer: Krauss Maffei

Model: HZ630 PH

Condition: Used

Material: Hastelloy - C22

Basket Diameter: 630 mm (24.8 in)

Basket Depth: 315 mm (12.4 in)

• Pharmaceutical design. This centrifuge has a clear distinction between the process area/clean room and the drive area. The processing area is free of dead space and allows for complete inspection and sterilization.
• The filter medium is installed inside the cantilever mounted screen basket.
• This centrifuge is Gas tight (over -pressure) to 0.04 bar. With feed and wash pipes, hydraulic plow with pneumatic heel cake removal system and solids discharge chute, with door lock switch.
• Internal accessories are Hastelloy C-22, Gasketing is PTFE.

Filtration Area: 0.6 m² (6.5 ft²). Motor Power: 18 kW (24.1 HP). Speed-RPM Maximum: 2,365. G Force: 1,960. Load Weight: 54 kg (119 lb). Gas Tight: Yes.

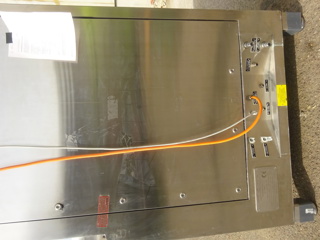

Type: Centrifuge-Lab

Manufacturer: Carr Centritech

Model: CC 46

Condition: Used

Material: Stainless Steel 316L

Lab Centrifuge Type: Micro

Maximum Capacity: 6-120 L/Hr.

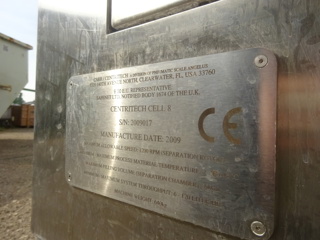

• Centritec Cell 8 single use insert centrifuge
• This type of flow centrifuge is for harvesting mammalian and insect cells in a single use insert. The system offers these advantages Single use, rapid changeover disposable, Precise servo drive system that minimizes vibration, User friendly, and low maintenance. Cells are pumped peristaltically from the bio reactor to the cell 8, Live cells can be recycled to the reactor, separation occurs in a gamma irritated disposable bladder and tubing system (Separation Insert) The process is three steps separation, isolation, and discharge. An inflatable barrier segregates cell rich material for the superannuant Min/Max Temp=2 -150 degrees C. (this machine has been modified with switches ,plc, and others to control temperature at an exact setpoint) Separation chamber volume 200 ml. Through put 6-120 L/Hr. Width 32.23 ", depth 46.86 ", height 67.99" Weight 640 kg.

Maximum Speed: 1,200. Maximum G Force: 320. Temperature Control Range: 2-150 deg C. HMI: Yes. Voltage: 400. Cycles (Hertz): 50. Phase: 3.

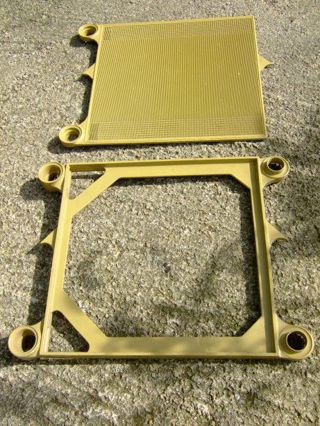

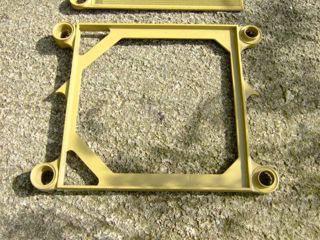

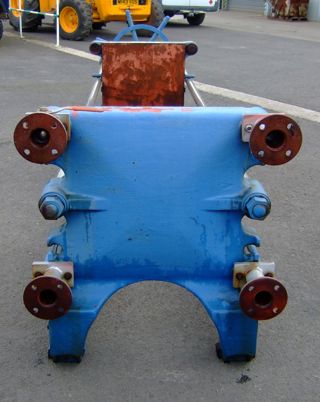

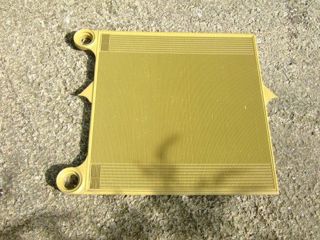

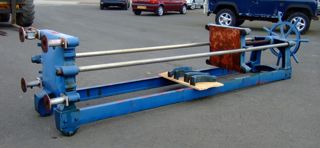

Type: Filter

Subtype: Press

Manufacturer: Seitz-Werke

Model: 60

Condition: Used

Material: Aluminum

Filtration Area: 12.8 m² (137.8 ft²)

Temperature:

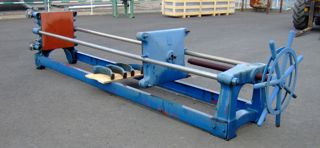

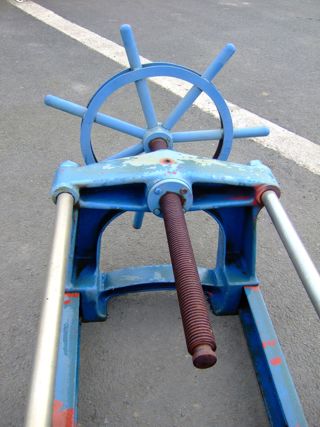

• Manual screw closure.
• 4-eye closed delivery. Openings: 4-2".

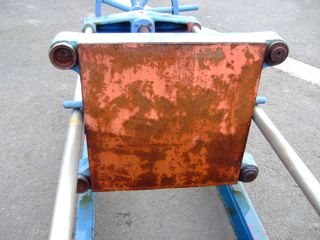

Cake Volume: 2,400 m3 (84,750 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 32. Number of Plates: 33. Plate MOC: Aluminum. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 600 mm (23.6 in). Plate Height: 600 mm (23.6 in). Plate Thickness: 12 mm (0.47 in). Plates Shifted By: Manual.

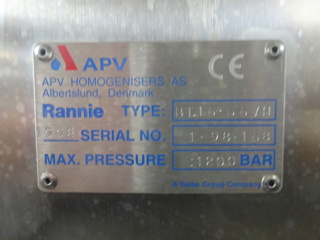

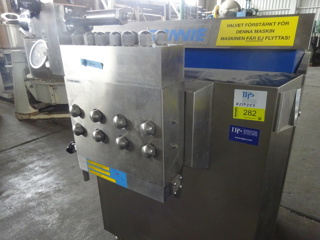

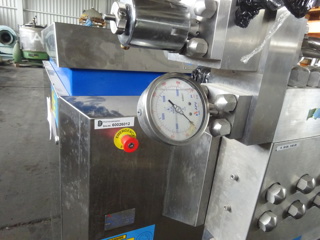

Type: Homogenizer

Manufacturer: SPX

Model: BT16-66VH

Condition: Used

Material: Stainless Steel 316L

Flow Rate: 160 L/h (0.7 GPM)

Pressure: 1,200 bar (17,400 psi)

• Product contact polished and sanitary.
• 3 pc valve and plunger.
• Free standing with its own cabinet

Number of Stages: 3. Piston MOC: Stainless Steel 316L.
