Used pulverizer equipment for sale: cost-effective solutions for material size reduction and processing

Type: Pulverizer

Subtype: Jet

Manufacturer: Mikro

Model: 6MA

Condition: Used

Material: Stainless Steel Other

Outlet Discharge Diameter: 76.2 mm (3 in)

Inlet Diameter: 139.7 mm (5.5 in)

Mikro Atomizer Rated for 6,000 rpm. Capable of handling capacities from 100 to 1000 lbs/hr, dependent on the material, this machine handles 3 functions in one machine. Pulverizes, air classifies and conveys the material.

Motor Power (Design): 22.4 kW (30 HP). Speed (RPM): 6,000. Orientation: Horizontal.

Type: Pulverizer

Subtype: Jet

Manufacturer: Alpine (Hosokawa)

Model: 800 AFG-1

Condition: Used

Material: Carbon Steel

Capacity: 1,250 m3 (44,143 ft3)

Outlet Discharge Diameter: 400 mm (15.7 in)

fluidised opposed jet milling (grinding air pressure 6 barg, nozzle 0 16mm) 1250 dm3 grinding bin volume, 80 mbar permissible operating pressure in grinding bin, max operating pressure in grinding bin, 5- nozzles, nozzle diameters 14mm, 16mm, 18mm, classifier has 3-wheels, each wheel with 60 vanes wide pitch, narrow pitch 120 vanes, max wheel speed 4000 rpm, each whees driven by 5.12 - 16 kw, 3/50/415 volt, 940/2940 rpm motor, (1) 1100 liter carbon steel feed hopper weld dished top, weld coned bottom, bottom outlet with 150mm diameter carbon steel screw conveyor, 15.1 rpm speed,

Inlet Diameter: 16 mm (0.63 in). Motor Power (Design): 16 kW (21.5 HP). Orientation: Vertical. Pressure: 0.09 bar (1.31 psi). Temperature: 50 °C (122 °F). Air Flow Rate: 5,200 m3/h (3,061 CFM). Clarifier: Yes.

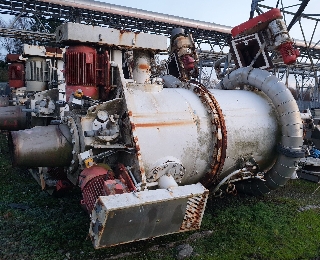

Type: Pulverizer

Subtype: Jet

Manufacturer: Alpine (Hosokawa)

Model: 800 AFG-1

Condition: Used

Material: Carbon Steel

Capacity: 1,250 m3 (44,143 ft3)

Outlet Discharge Diameter: 400 mm (15.7 in)

fluidised opposed jet milling (grinding air pressure 6 barg, nozzle 0 16mm), 1250 dm3 grinding bin volume, 80 mbar permissible operating pressure in grinding bin, max operating pressure in grinding bin, 5- nozzles, nozzle diameters 14mm, 16mm, 18mm, classifier has 3-wheels, each wheel with 60 vanes wide pitch, narrow pitch 120 vanes, max wheel speed 4000 rpm each whees driven by 5.12 - 16 kw,3/50/415 volt, 940/2940 rpm motor, (1) 1100 liter carbon steel feed hopper weld dished top, weld coned bottom, bottom outlet with 150mm diameter carbon steel screw conveyor, 15.1 rpm speed,

Inlet Diameter: 16 mm (0.63 in). Motor Power (Design): 16 kW (21.5 HP). Orientation: Vertical. Pressure: 0.09 bar (1.31 psi). Temperature: 50 °C (122 °F). Air Flow Rate: 5,200 m3/h (3,061 CFM). Clarifier: Yes.

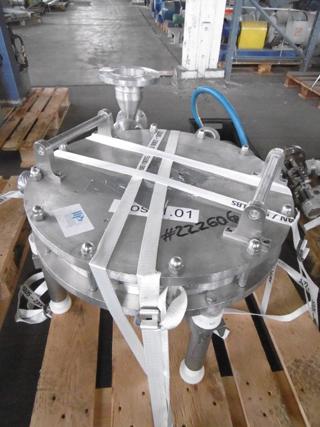

Type: Pulverizer

Subtype: Jet

Manufacturer: Chrispro micronizer

Model: MC-500-KX

Condition: Used

Material: Stainless Steel 304

Inlet Diameter: 150 mm (5.9 in)

Orientation: Horizontal

500 kg/hr @ 105 psi, feed rate 5-500 kg/hr initial particle size 1mm, final particle size 0.5-10 micrometer. Mill size 500mm (20"), sanitary design, top opening: 1-75mm, side openings: 1-50mm with a 100mm offshoot, 1-50mm, Suitable for any friable or crystalline material and those materials that must remain ultra-pure well as heat sensitive products. High pressure air is introduced into the cylindrical grinding chamber through interchangeable nozzles. This creates a high speed vortex into which the material to be ground is introduced. No moving parts or grinding media are inside the mill chamber. Size reduction is the result of the high-velocity collision between particles of the process material itself. The chambers is designed to allow re-circulation of over-size particles until the correct size for discharge.

Pressure: 7.2 bar (105 psi). Air Flow Rate: 1,150 m3/h (676.9 CFM).
