Type: Evaporator
Subtype: Wiped/Thin Film
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 4.5 kg/h (10 lb/h)
Total Heat Transfer Surface Area: 0.2 m² (2.2 ft²)

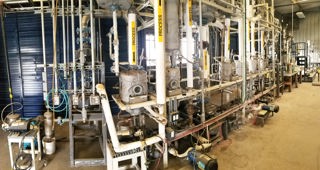

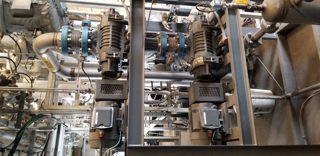

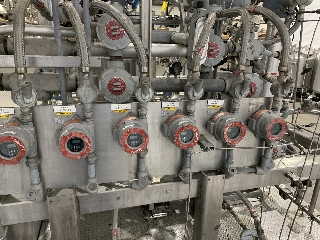

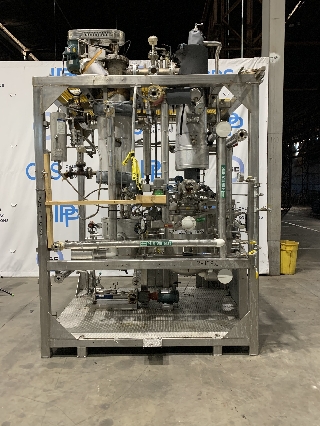

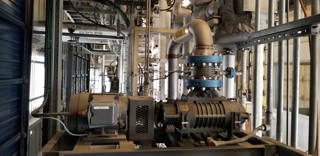

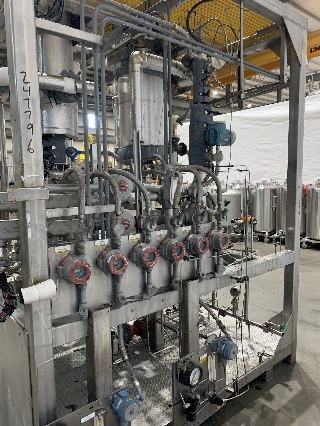

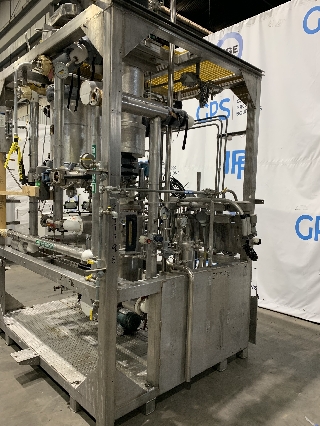

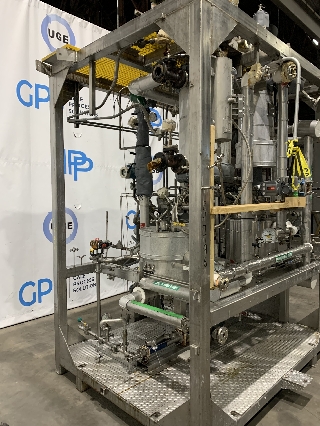

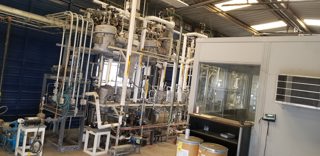

(Two SPDU's) product contact, complete Short path distillation plant. This unit was previously used to process 300 lbs/day of product. The system consists of two, 0.1 m2 short path distillation units, three cold traps, six hold up receivers, and a degassing column with a pre heater. All equipment is piped and mounted in a steel framework, including all pumps, vacuum pumps, heater, valves, and controls. This process system has the following attributes: Can operate up to 340 degrees C, It is capable of vacuum to 0.01 mbar. , has a short resonance time, is good for heat sensitive products and hazardous materials, is suitable for viscous products, and has an excellent turn down capacity. Product contact surfaces are finished to 0.62 um RA The process piping and hold up tank are jacketed. The cold traps feature double coils for hot and cold brine. The system includes all process pumps and vacuum pumps. Primary and secondary heaters are supplied by Sterling. Chillers are supplied by Micro Therm.
Orientation: Vertical. Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Balfour
Model: Stratavap
Condition: Used
Material: Stainless Steel 304
Total Heat Transfer Surface Area: 0.23 m² (2.5 ft²)
Orientation: Vertical

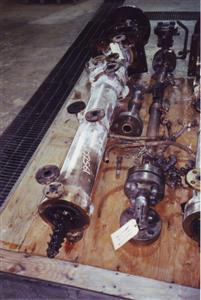

wiped film lab size evaporator system. jacket 13.8 bar @ 200 degrees C. Consisting of (1) 2.5 square feet 304 stainless steel vertical jacketed wiped/thin film evaporator. with 304 stainless steel jacket. 4-blade flexible teflon wipers. Rotor driven by Eurodrive, Type RGUV-031A, 30-177 rpm, 17.06:1 ratio, varispeed drive, driven by 3 KW, 3/50/415 volt, 1430 rpm flameproof motor. Mechanical seal. (1) stainless steel circulation pump. manufactured by Howard Pumps, serial #14037, model #CL2-20. Capacity 5000 liter/hour, pressure 6 bar. Eurodrive 98-381 rpm, 5.04:1 ratio, varispeed drive, driven by 7.5 KW, 3/50/415 volt, 1440 rpm flameproof motor. (1) approx 15 square feet stainless steel tube, head and carbon steel shell heat exchanger. manufactured by Johnsons, serial #63055. Pressure 163 psi @ 300 degrees C. Shell 7" diameter x 72" long. Shell with expansion bellows.
Diameter: 152.4 mm (6 in). Height: 762 mm (30 in). Pressure: 1 bar (14.5 psi). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Eurodrive RGUV-031A.
Type: Evaporator
Subtype: Wiped/Thin Film

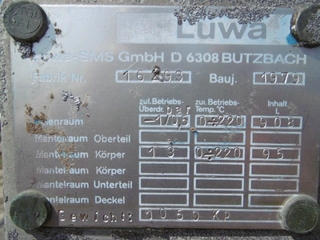

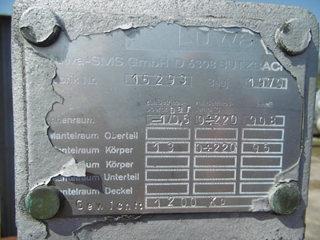

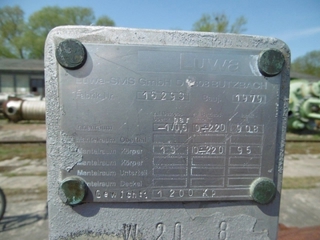

Manufacturer: Luwa SMS
Model: HS0050
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 11.3 kg/h (25 lb/h)
Total Heat Transfer Surface Area: 0.5 m² (5.4 ft²)

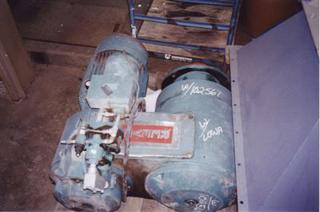

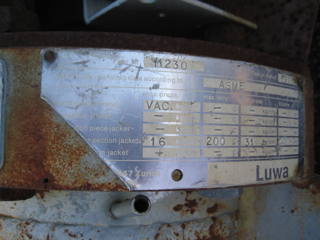

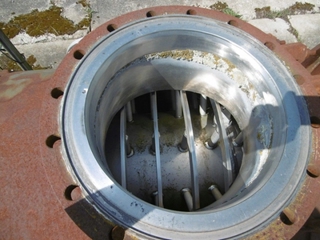

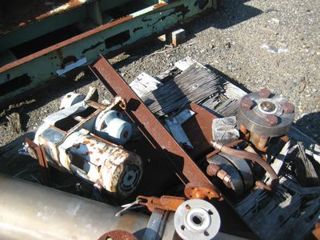

jkt rated 16 kg/sq cm @ 200 deg C. 9 gal capacity W/(2) rows of str blades and (2) rows of positive pitched blades @ 25 deg angle on central core. Driven by 20 HP, 1170 rpm Reeves variable speed drive, 6.2:1 ratio, 64 rpm min, 428 rpm max. C-configuration. Has air operated valve positioner w/mech seal. Has jkt btm cone; rotor extension (removable product propelling rotor section).
Orientation: Vertical. Diameter: 152.4 mm (6 in). Height: 1,829 mm (72 in). Temperature: 200 °C (392 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Leybold-Heraeus
Model: KD300
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 72.6 kg/h (160 lb/h)
Total Heat Transfer Surface Area: 3 m² (32.3 ft²)

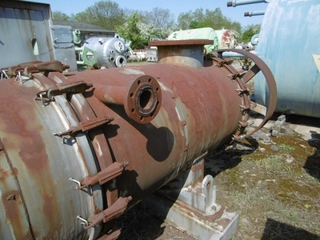

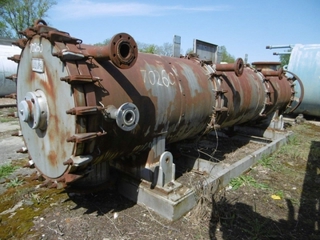

RECONDITIONED, 20-300 Kg/sq m/hr shortpath evaporator. System working pressure 20x10-1x10 mbar. System consists of (1) Leybold KD300, 32.2 sq ft (3 sq meter) 316SS vert wiped film evaporator, SN 1982/1. W/53.8 (5 sq meter) int condenser. jkt rated 6 bar @ 250 deg C. Condenser rated 6 bar @ 80 deg C. (3) wiper strands, wiper speed 106 rpm. Unit driven by 2 KW, 3/50/240/415 volt, 105/1445 rpm non-flameproof geared motor. Mechanical seal.
Orientation: Vertical. Diameter: 500 mm (19.7 in). Height: 3,800 mm (149.6 in). Pressure: 2 bar (29 psi). Temperature: 200 °C (392 °F). Internal Condenser: Yes. Internal Condenser size: 5 m² (53.8 ft²). Vacuum: Yes. Mechanical Seal on Shaft: Yes.
Used evaporators are thermal separation systems that concentrate solutions, recover solvents, or reduce waste volume by vaporizing liquid components. These systems are essential across industries where product purity, yield, and cost-efficiency matter. With more than 47 years of industry expertise, IPP offers used, secondhand and surplus evaporators from 20 complete plant sites and a massive inventory of over 15,000 systems ready to ship.
Evaporators are available in multiple configurations—falling film, rising film, forced circulation, wiped film and multiple-effect systems—each tailored for specific viscosity, temperature sensitivity and throughput needs.
Evaporators are built for long service life, cleanability and chemical resistance:
Learn more about evaporator types and applications in process industries from Chemical Engineering.
Search the IPP inventory or contact IPP’s equipment experts to locate the ideal used, secondhand or surplus evaporator for your facility. Whether for concentration, recovery or purification, IPP helps you save time and money with precision systems ready to ship.
