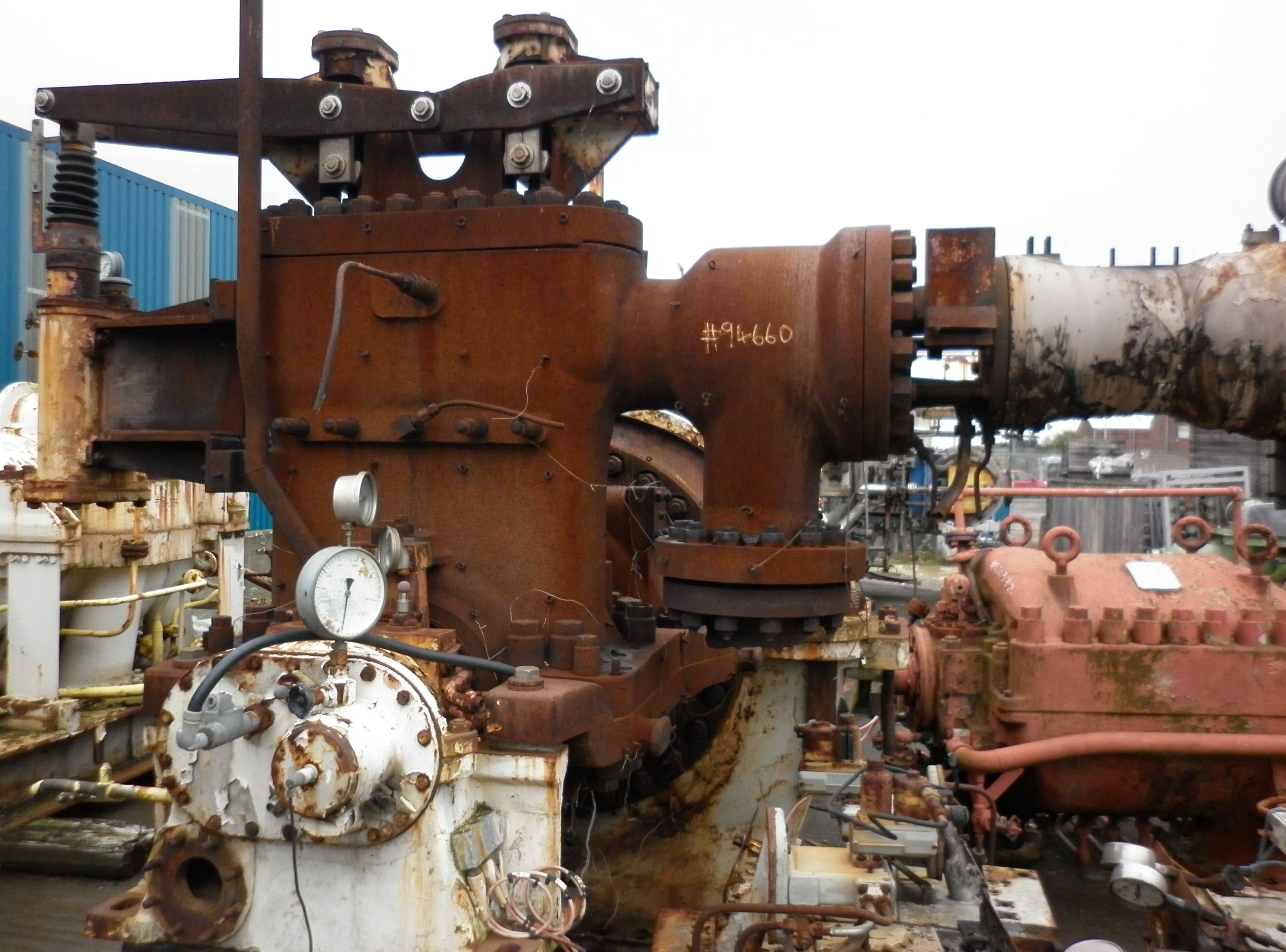

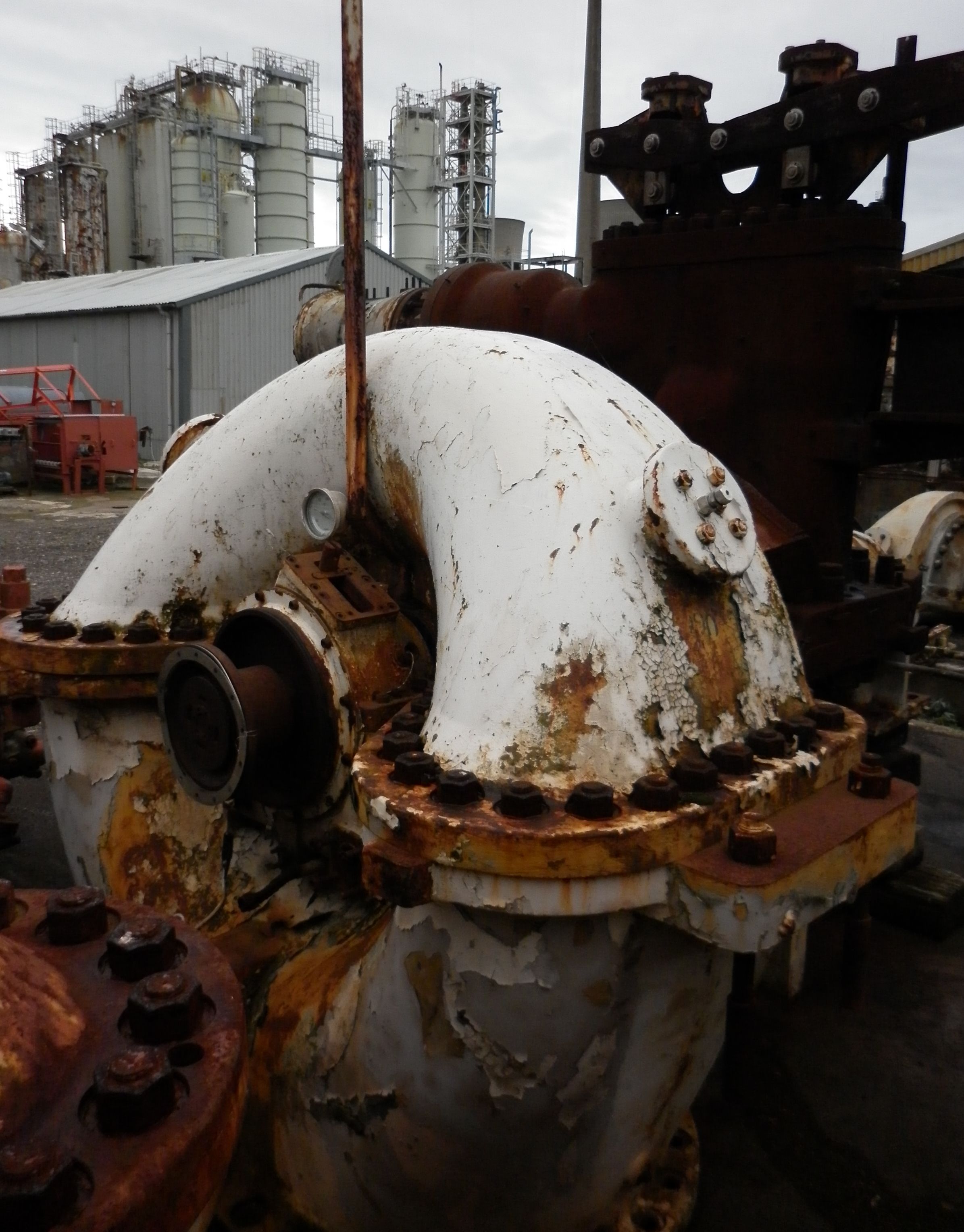

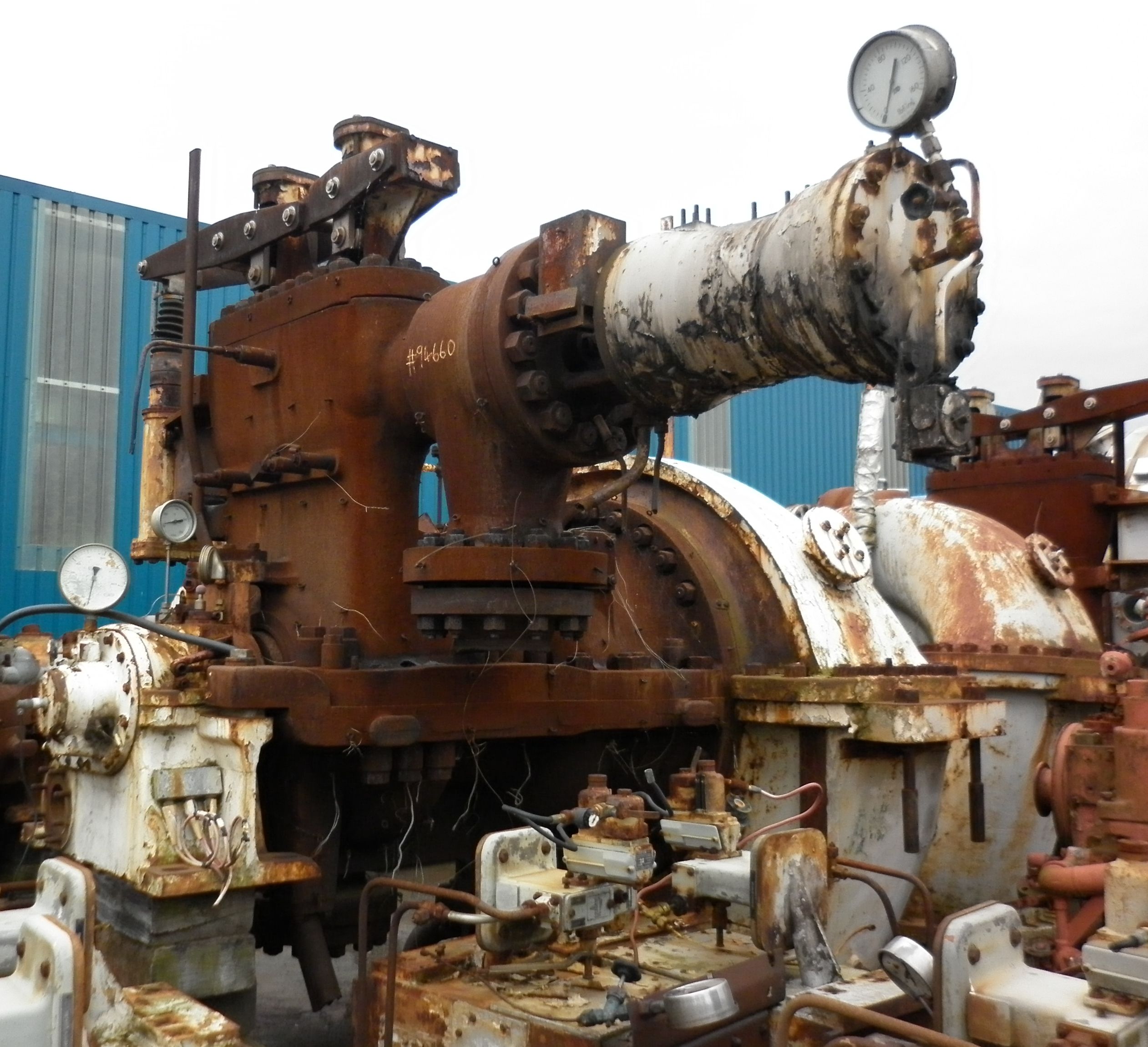

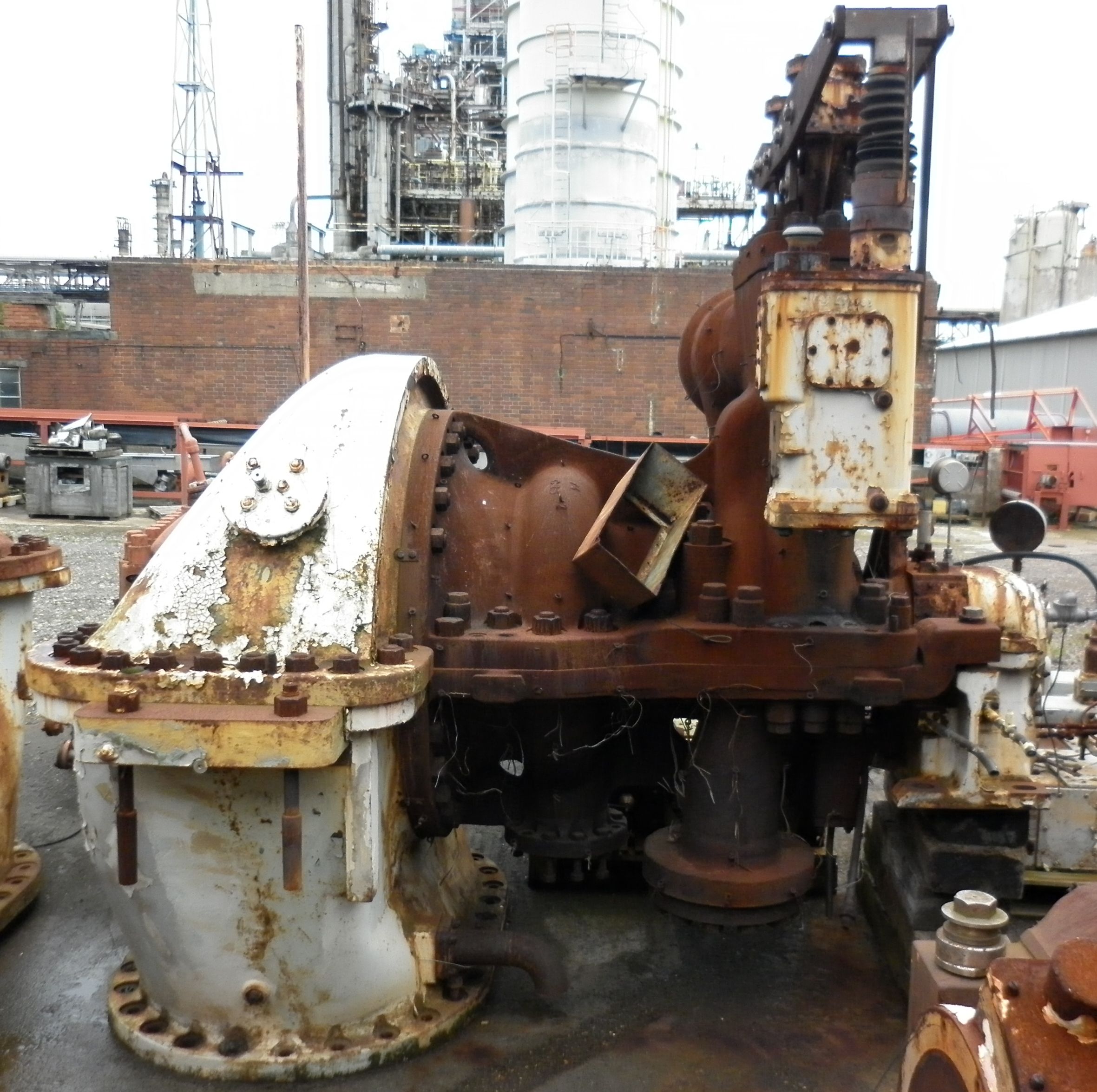

Name: Unused Siemens K-1100-2 Steam Turbine
Brand: Siemens
SKU: 94660

Overview

Type:

Turbine

Subtype:

Steam

Manufacturer:

Siemens

Model:

K-1100-2

Condition:

Unused

Material:

Carbon Steel

Capacity

Power:

6,050 kW (8,100 HP)

Other Specifications

Speed (RPM):

3857-4560

Inlet Pressure:

14.5 bar (210 psi)

Inlet Temperature:

248.9 °C (480 °F)

Inlet Steam Flow:

39,300 kg/h (86,600 lb/h)

Outlet Pressure:

0.12 bar (1.7 psi)

Outlet Temperature:

210 °C (410 °F)

Outlet Steam Flow:

37,650 kg/h (83,000 lb/h)

Condensing?:

Yes

Stages:

1+21

Rotation Direction:

Counter-Clockwise

Critical Speed(s):

6800

Trip Speed:

5,030

Equipment Driven:

Compressor

Inlet Size:

203.2 mm (8 in)

Outlet Size:

1,100 mm (44 in)

Additional Info:

condensing turbine. inlet pressure normal 190 psig steam consumption 9.9 lb/BHP/hr, Total flow 83000 lbs/hr.

Unused Siemens EG-400-2 Steam Turbine

Type: Turbine

Subtype: Steam

Manufacturer: Siemens

Model: EG-400-2

Condition: Unused

Material: Carbon Steel

Power: 8,450 kW (11,350 HP)

Speed (RPM): 6076-7975

Spare parts & spare rotor available separately.
With SIHI gland steam condenser.

Single cylinder extraction backpressure of Axial flow type, extraction steam 205 psi (14.2 bar),Steam consumption 130 ton/hr.

Inlet Pressure: 40.7 bar (590 psi). Inlet Temperature: 385 °C (725 °F). Inlet Steam Flow: 132,100 kg/h (291,200 lb/h). Outlet Pressure: 6.4 bar (93 psi). Extraction?: Yes. Extraction Points: 1. Extraction Details: Single cylinder extraction at 205psi.. Backpressure?: Yes. Stages: 1. Rotation Direction: Clockwise.

Unused Siemens EG-400-2 Steam Turbine Rotor

Type: Turbine

Subtype: Steam

Manufacturer: Siemens

Model: EG-400-2

Condition: Unused

Material: Stainless Steel Other

Spare rotor for steam turbine stock # 701561 Manufactured from a forged blank of Alloy, containing impulse blades, reaction blades, and moving blades.

Unused Siemens HG32/20/10 Steam Turbine

Type: Turbine

Subtype: Steam

Manufacturer: Siemens

Model: HG32/20/10

Condition: Unused

Power: 6,250 kW (8,350 HP)

Speed (RPM): 8654-10400

back pressure turbine.steam consumption 13.2 lb/BHP/hr,Total flow 106900 lbs/hr.

Inlet Pressure: 127.6 bar (1,850 psi). Inlet Temperature: 518 °C (965 °F). Inlet Steam Flow: 50,050 kg/h (110,350 lb/h). Outlet Pressure: 14.1 bar (205 psi). Outlet Temperature: 248.9 °C (480 °F). Outlet Steam Flow: 48,500 kg/h (106,900 lb/h). Backpressure?: Yes.
