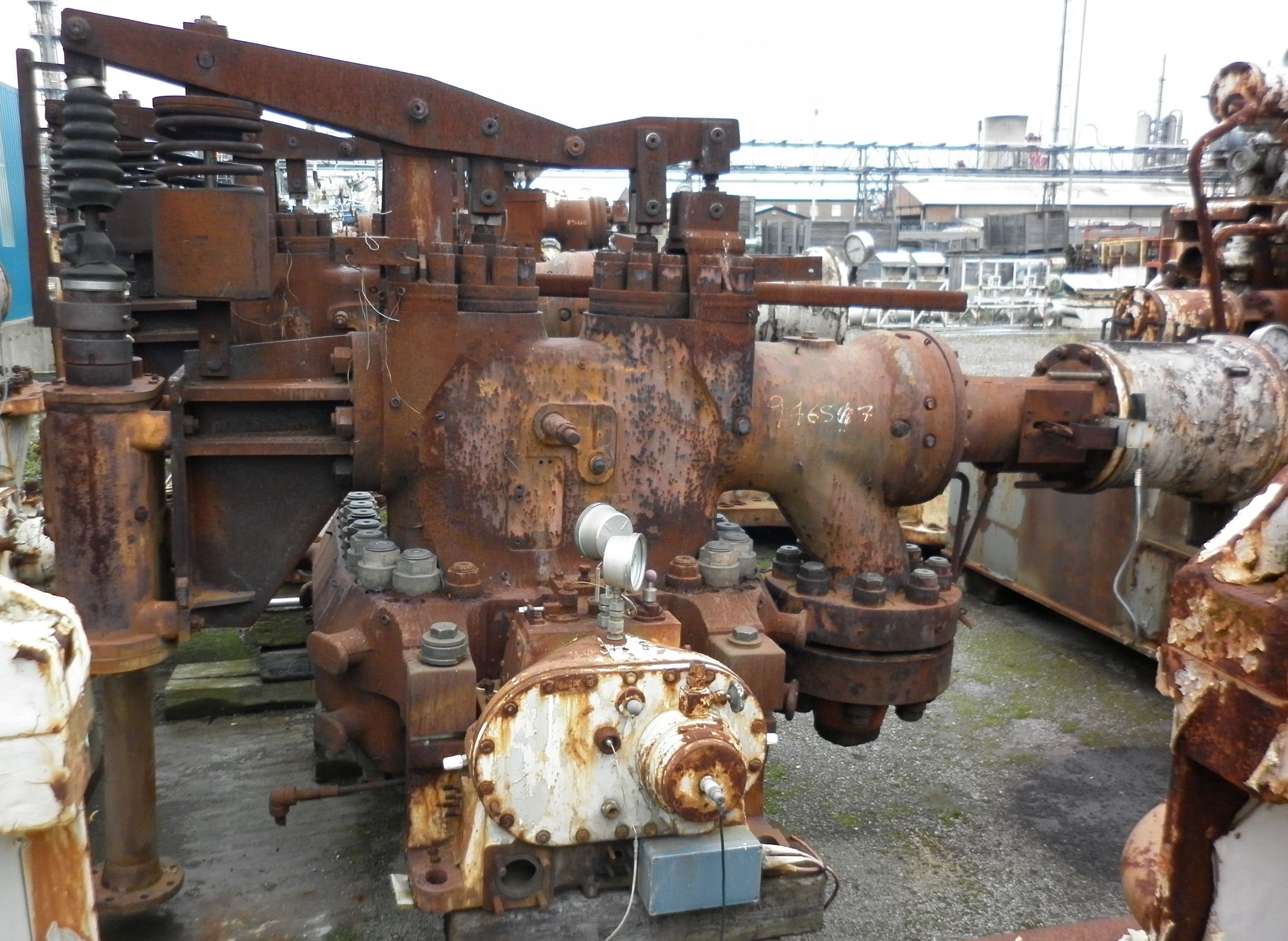

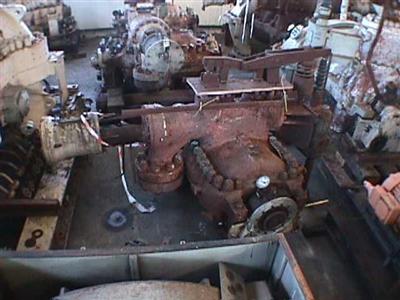

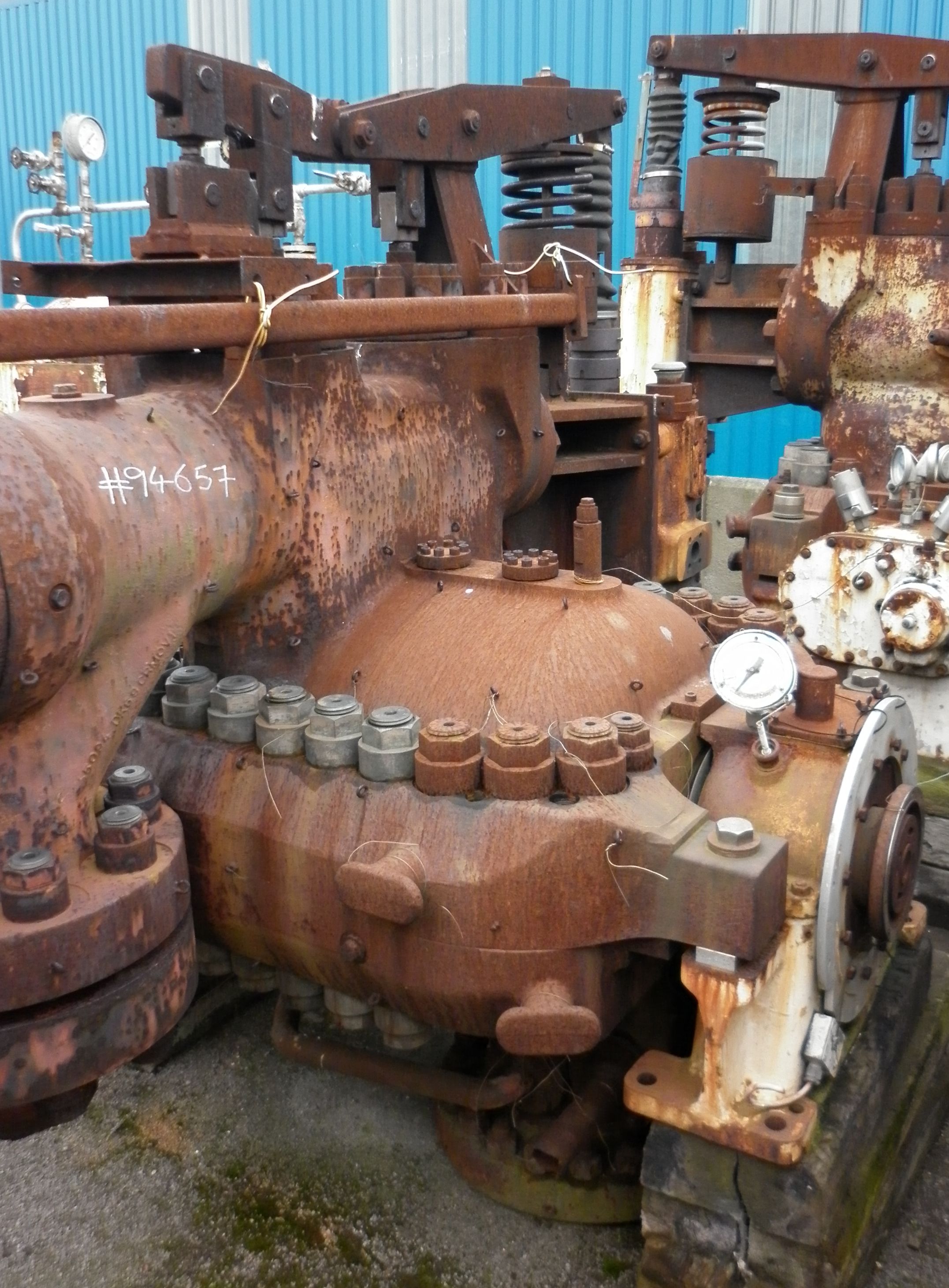

back pressure turbine.steam consumption 13.2 lb/BHP/hr,Total flow 106900 lbs/hr.
Type: Turbine
Subtype: Steam
Manufacturer: Siemens
Model: HG32/20/10
Condition: Unused
Power: 6,250 kW (8,350 HP)
Speed (RPM): 8654-10400
back pressure turbine. steam consumption 13.2 lb/BHP/hr Total flow 106900 lbs/hr.
Inlet Pressure: 127.6 bar (1,850 psi). Inlet Temperature: 518 °C (965 °F). Inlet Steam Flow: 50,050 kg/h (110,350 lb/h). Outlet Pressure: 14.1 bar (205 psi). Outlet Temperature: 248.9 °C (480 °F). Outlet Steam Flow: 48,500 kg/h (106,900 lb/h). Backpressure?: Yes.
Type: Turbine
Subtype: Steam
Manufacturer: Siemens
Model: EG-400-2
Condition: Unused
Material: Stainless Steel Other
Spare rotor for steam turbine stock # 701561 Manufactured from a forged blank of Alloy, containing impulse blades, reaction blades, and moving blades.
Type: Turbine
Subtype: Steam
Manufacturer: Siemens
Model: EG-400-2
Condition: Unused
Material: Carbon Steel
Power: 8,450 kW (11,350 HP)
Speed (RPM): 6076-7975
Single cylinder extraction backpressure of Axial flow type, extraction steam 205 psi (14.2 bar),Steam consumption 130 ton/hr.
Inlet Pressure: 40.7 bar (590 psi). Inlet Temperature: 385 °C (725 °F). Inlet Steam Flow: 132,100 kg/h (291,200 lb/h). Outlet Pressure: 6.4 bar (93 psi). Extraction?: Yes. Extraction Points: 1. Extraction Details: Single cylinder extraction at 205psi.. Backpressure?: Yes. Stages: 1. Rotation Direction: Clockwise.
Type: Turbine
Subtype: Steam
Manufacturer: Siemens
Model: K-1100-2
Condition: Unused
Material: Carbon Steel
Power: 6,050 kW (8,100 HP)
Speed (RPM): 3857-4560
condensing turbine. inlet pressure normal 190 psig steam consumption 9.9 lb/BHP/hr, Total flow 83000 lbs/hr.
Inlet Pressure: 14.5 bar (210 psi). Inlet Temperature: 248.9 °C (480 °F). Inlet Steam Flow: 39,300 kg/h (86,600 lb/h). Outlet Pressure: 0.12 bar (1.7 psi). Outlet Temperature: 210 °C (410 °F). Outlet Steam Flow: 37,650 kg/h (83,000 lb/h). Condensing?: Yes. Stages: 1+21. Rotation Direction: Counter-Clockwise.
