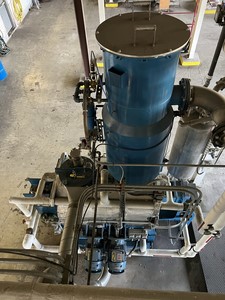

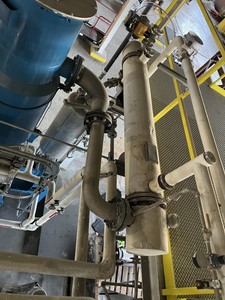

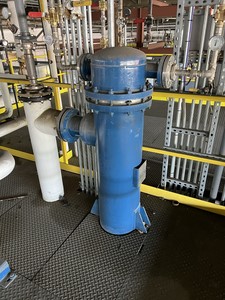

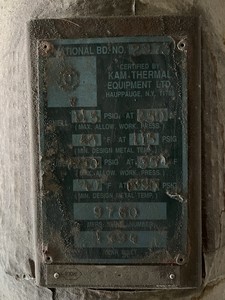

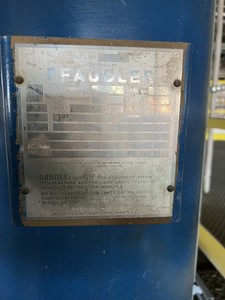

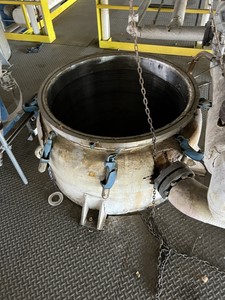

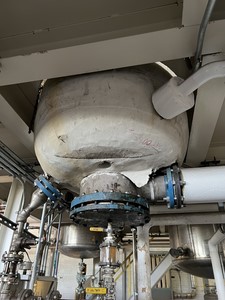

wiped film evaporator system. Jacket rated for 160 psi at 650 degrees F. Drive system by Pfaudler, 3 DTW With 158 Sq.Ft. external condenser, 316 SS tubes 316 SS tube sheet 316 SS heads CS shell NB # 43399 Shell side rated for 75 psi at 350 degrees F tube side rated for 75 psi at 350 degrees F. Serial # R384-1817. TEMA type BEU
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Pfaudler
Condition: Re-glassed
Material: Glasslined
Evaporation Rate: 242.7 kg/h (535 lb/h)
Total Heat Transfer Surface Area: 10 m² (107.6 ft²)
Mfd by Balfour/Sybron Order #48621 Lined w/glass #3115 CS jkt 98 psi @ 392 deg F Has glass covered int rotor w/graphite wipers. Retaining pins and rotor shaft are titanium. jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.Has 3-sections: clamped dish entrainment section, 48" dia x 42" str side; jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.
Drive is Pfaudler Type VS80-U21983, belt driven by approx 10 HP motor w/mech seal on shaft.
Orientation: Vertical. Diameter: 1,219 mm (48 in). Height: 1,067 mm (42 in). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Pfaudler VS80-U21983.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Pfaudler
Model: 103.4-36V-274
Condition: Unused
Material: Stainless Steel 304
Evaporation Rate: 226.8 kg/h (500 lb/h)
Total Heat Transfer Surface Area: 9.5 m² (102 ft²)
Orientation: Vertical. Diameter: 889 mm (35 in). Height: 4,648 mm (183 in). Pressure: 5.9 bar (85 psi). Temperature: 300 °C (572 °F). Internal Condenser: Yes. Internal Condenser size: 2.4 m² (25.4 ft²). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: CGL.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: CARL GANZLER
Model: 900/6,0-K10
Condition: Used
Material: Stainless Steel 316L
Evaporation Rate: 145.1 kg/h (320 lb/h)
Total Heat Transfer Surface Area: 6 m² (64.6 ft²)
Short Path wiped film evaporator system with internal condensor Includes 2.9m² SS cold trap Rated 2000 liter 95 liter in the jacket Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor Evaporator has a side bottom discharge for product Vessel weight empty 2600 kg; motor and rotor 800 kg.
Orientation: Vertical. Diameter: 900 mm (35.4 in). Height: 4,715 mm (185.6 in). Temperature: 250 °C (482 °F). Internal Condenser: Yes. Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Eberhard Bauer DF 2A45HZ/309.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: KH-600-S SAKO
Condition: Used
Material: Stainless Steel 316L
Evaporation Rate: 145.1 kg/h (320 lb/h)
Total Heat Transfer Surface Area: 6 m² (64.6 ft²)

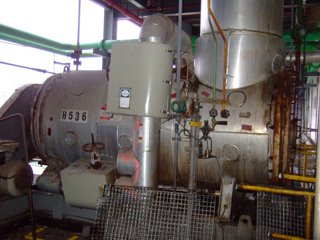

thin film evaporator jacket -1/1.1 bar @ 350 deg C (110ltr) 316L s/steel (1,4404) chamber, c/steel jacket on straight side only, 316L s/steel rotor, Crane 109 double mechanical seal with lubricator, speed 191 rpm, belt driven by 22kw, 3/50/380 volt, 730 rpm motor
Orientation: Horizontal. Diameter: 1,200 mm (47.2 in). Height: 3,100 mm (122 in). Pressure: 6.4 bar (92.8 psi). Temperature: 350 °C (662 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Loher DNGW-225MB-08A.
