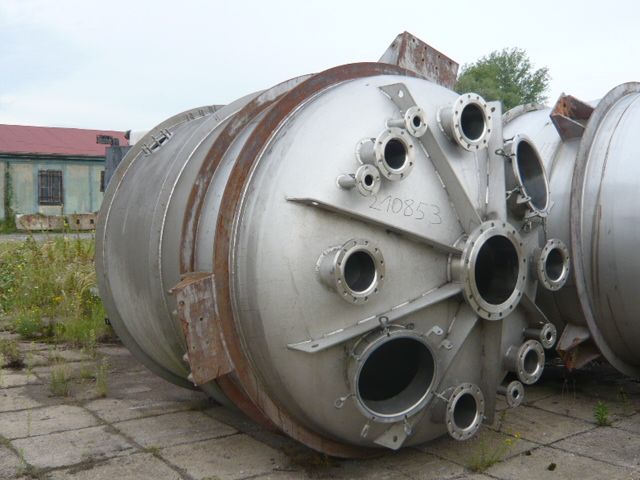

Inconel 600 M. LABBE Tank - IPP# 210853

  • Inconel 600 M. LABBE Tank - IPP# 210853 Inconel 600 M. LABBE Tank - IPP# 210853
  • Inconel 600 M. LABBE Tank - IPP# 210853 Inconel 600 M. LABBE Tank - IPP# 210853
  • Inconel 600 M. LABBE Tank - IPP# 210853 Inconel 600 M. LABBE Tank - IPP# 210853
  • Inconel 600 M. LABBE Tank - IPP# 210853 Inconel 600 M. LABBE Tank - IPP# 210853
  • Inconel 600 M. LABBE Tank - IPP# 210853 Inconel 600 M. LABBE Tank - IPP# 210853
  • Inconel 600 M. LABBE Tank - IPP# 210853 Inconel 600 M. LABBE Tank - IPP# 210853
  • Inconel 600 M. LABBE Tank - IPP# 210853
  • Inconel 600 M. LABBE Tank - IPP# 210853
  • Inconel 600 M. LABBE Tank - IPP# 210853
  • Inconel 600 M. LABBE Tank - IPP# 210853
  • Inconel 600 M. LABBE Tank - IPP# 210853
  • Inconel 600 M. LABBE Tank - IPP# 210853
Overview
Tank
M. LABBE
Used
Inconel
Capacity
13,300 L (3,513 gallons)
Dimensions
Vertical
2,400 mm (94.5 in)
Other Specifications
2,052 mm (80.8 in)
3.5 bar (50.8 psi)
135 °C (275 °F)
Yes
Lugs
  • Inconel 600
  • Reinforcing rings around outside of tank
