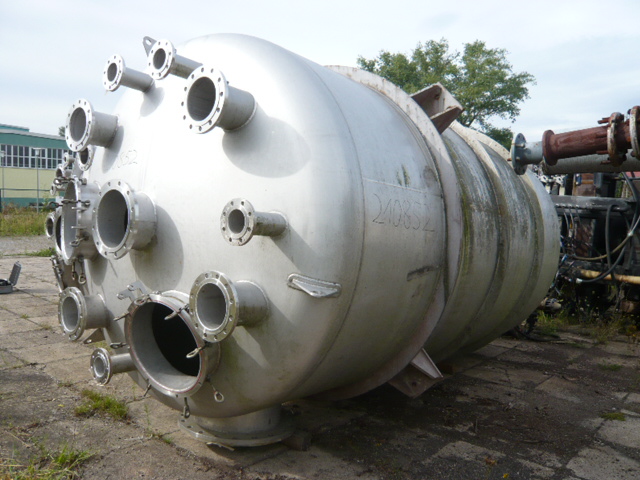

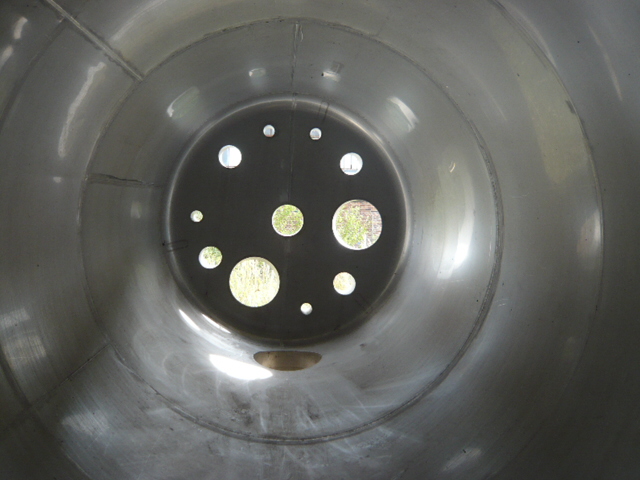

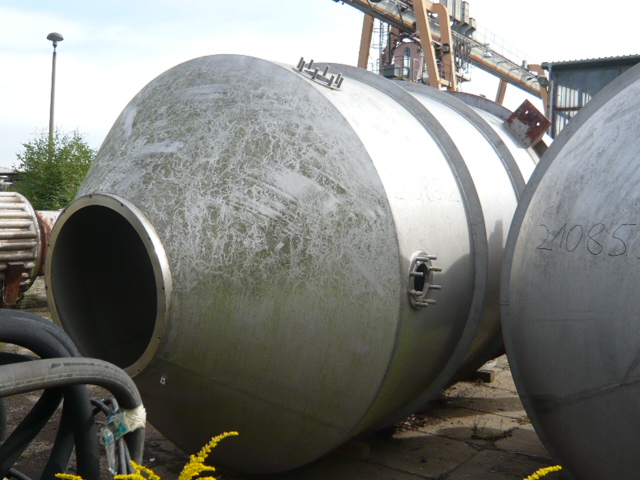

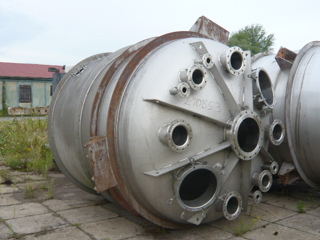

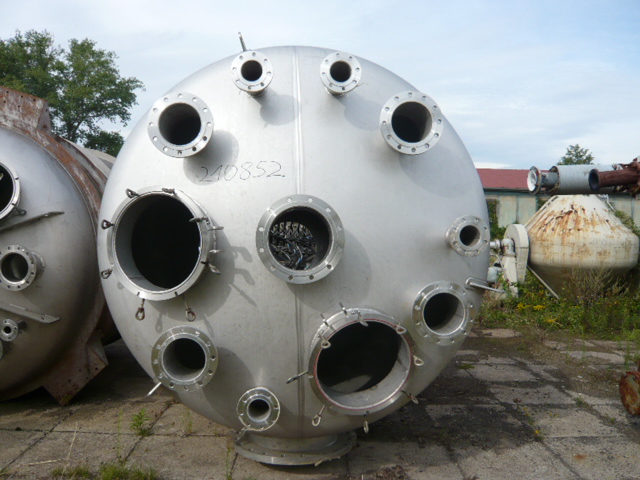

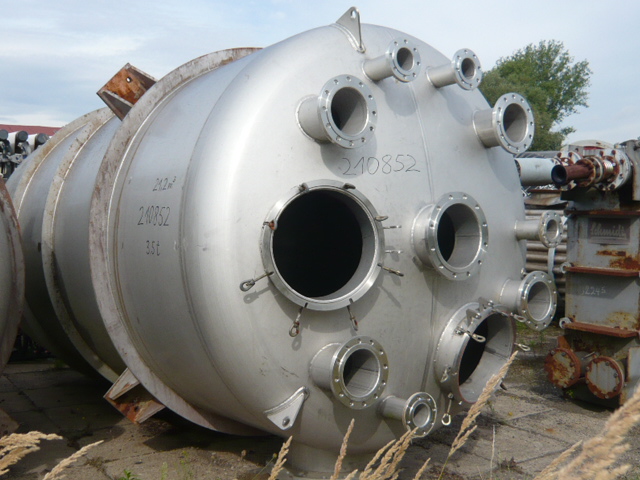

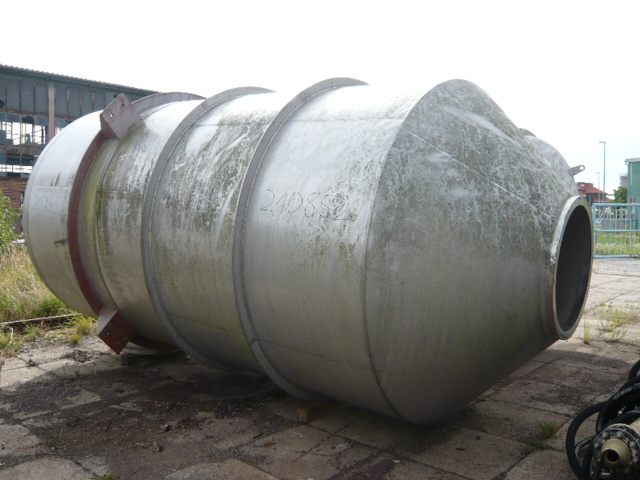

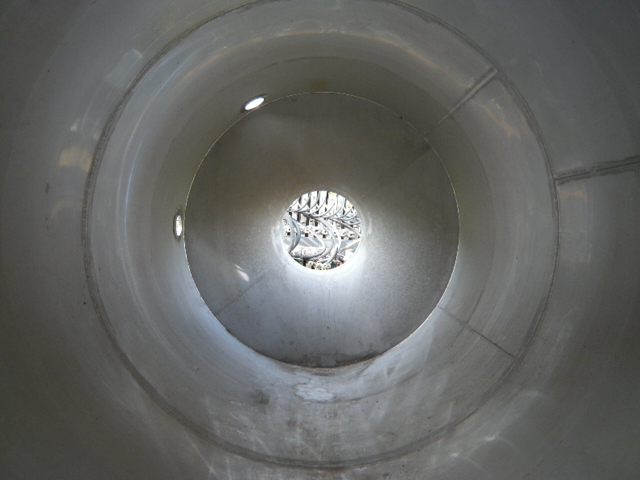

Stainless Steel 304L M. LABBE Tank - IPP# 210852

Type: Tank

Manufacturer: M. LABBE

Condition: Used

Material: Inconel

Capacity (Design): 13,300 L (3,513 gallons)

Orientation: Vertical

• Inconel 600
• Reinforcing rings around outside of tank

Diameter: 2,400 mm (94.5 in). Straight-side Length: 2,052 mm (80.8 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 135 °C (275 °F). Support: Lugs.

Type: Tank

Manufacturer: Perry Products Co.

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 28,391 L (7,500 gallons)

Orientation: Horizontal

• (5) reinforcing rings around outside of tank

Diameter: 2,438 mm (96 in). Straight-side Length: 6,096 mm (240 in). Cone Length: 304.8 mm (12 in). Support: Saddle.

Type: Tank

Condition: Used

Material: Stainless Steel 304L

Clad: Yes

Capacity (Design): 28,000 L (7,397 gallons)

Orientation: Horizontal

• internal working pressure atmospheric @ 80 deg C, design temperature 150 deg C,
• Coil pressure rating: 3.5 bar
• Coil material: 316L s/steel
• Coil design: 1-turn, hairpin
• Coil location: Running along full length of vessel bottom
• Cradle type: Fixed c/steel tank has a 50mm fall from back to front, fully insulated with 50mm foam glass and clad with aluminum

Diameter: 2,500 mm (98.4 in). Straight-side Length: 6,000 mm (236.2 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 150 °C (302 °F). Does it have an Internal Coil?: Yes. Support: Saddle.

Type: Tank

Manufacturer: John Dore & Co LTD.

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 1,000 L (264.2 gallons)

Orientation: Vertical

• Fully insulated pressure tank.
• Built to BS 5500

Diameter: 1,060 mm (41.7 in). Straight-side Length: 1,066 mm (42 in). Internal Pressure: 3.8 bar (54.9 psi). Internal Temperature: 190 °C (374 °F). Vacuum: Yes. Support: Legs.
