Type: Compressor

Subtype: Reciprocating

Manufacturer: Burckhardt

Model: 3K140-3F-1

Condition: Used

Compressor Type: Reciprocating

Inlet Pressure: 0.05 bar (0.73 psi)

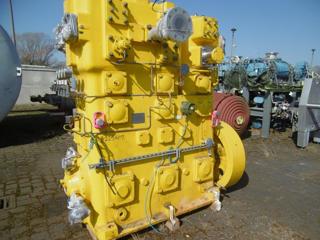

C 3-stage reciprocating Boil-off-gas (BOG) compressor system maximum allowed rod. Load 100kN, rated discharge pressure of final stage 69 barg, suction pressure 1st stage 0.05 bar @ 30 degrees C, 2nd stage 4.6 bar @ 45 degrees C, 3rd stage 27.7 bar @ 45 degrees C, discharge pressure 1st stage 4.7 bar @ 176 degrees C, 2nd stage 27.9 bar @ 190 degrees C, 3rd stage 69 bar @ 160 degrees C, driven by a 250kw, 3/50/400 volt, 594 rpm ATEX 1022 EExd II B T4Loher motor, (1) 550 liter stainless steel vertical pulsation dampner vessel, manufactured by Nadoba Stabilini, serial #954, pressure 0.05 bar @ -118/+30 degrees C, 610mm diameter x 1740mm straight side, weld dished top and bottom, (1) 125 liter carbon steel horizontal pulsation dampner, manufactured by Tlakova Nadoba Stabilini, serial #955, pressure 10.7/69.6 bar @ 57/159 degrees C, weld dished ends, (1) carbon steel tube and shell horizontal 1st stage intercooler, manufactured by APL Apparatebau AG, serial #W8227/EC22601, tubeside pressure 10 barg @ -10/200 degrees C (27 liter), shell 10 barg @ -10/200 degrees C (53 liter), (1) carbon steel tube and shell horizontal 2nd stage intercooler, manufactured by APL Apparatebau AG, serial #W8228/EC22602, tubeside pressure 29 barg @ -10/200 degrees C (20 liter), shell 10 barg @ -10/200 degrees C (55 liter), (1) carbon steel tube and shell horizontal 3rd stage intercooler, manufactured by APL Apparatebau AG, serial #W8229/EC22603, tubeside pressure 78 barg @ -10/200 degrees C (9 liter), shell 10 barg @ -10/200 degrees C (42 liter), system also includes interconnecting pipework, valves, etc, ALL CE MARKED

Discharge Pressure: 90 bar (1,305 psi). Flow Rate: 875 m3/h (515 CFM).

Type: Pump-Vacuum

Manufacturer: Nash

Model: SC2SS

Condition: Unused

Material: Carbon Steel

Air Flow: 339.8 m3/h (200 CFM)

Discharge Pressure: 0.68 bar (9.8 psi)

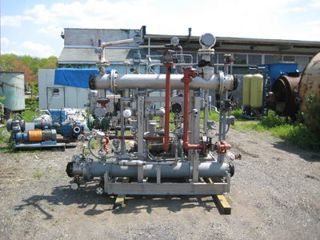

Nash SC2SS Vacuum pump, with vapor recovery system Test # 90Y002 The system includes the following equipment; a vacuum pump, two heat exchangers, a separating tank, and seal pots. The direct drive vacuum pump, is manufactured by Nash, size SC2SS, Pos. 4 ,Vac, rated 200 cfm @ 5-20" Hg. The vapor exchanger is a 30 sq. ft., all 316 SS, horizontal heat exchanger manufactured by Industrial Process Equipment corp., Model # 2ST8-60, Serial # 105-641A National Board # 988 It’s shell and tubes are rated for 150/FV The condensate chiller is a 10 sq.ft., 316SS tube bundle, 316SS heads, with CS shell, horizontal heat exchanger and is also manufactured by Industrial Process Equipment Corporation. Serial # 1056413, and National Board # 989, Rated for 150/FV psi in the shell and tubes. The dual seal pot arrangement, with Nitrogen purge is provided by Duramettalic, Canada/Condex Heat Transfer Corp. Serial # 91-3-4146 & 4179, and rated for 400 psi at 400 degrees F. Both have level sight glasses and N2 purge line with regulator and Liquid make up valves. The units 316 SS separator, is manufactured by Jenco, Serial # 91-1327, National Board # 525, and rated for 30/FV at 350 psi. The separator tank also has a liquid level sight glass. The vapor inlet line is 4" flanged, and separator outlet is 1”. Automatic valves for liquid flow control are provided by Fisher and El-O-Matic, and the vapor contact piping is 316 SS. System includes all DP cells, RTD temperature probes, and pressure gauges. Designed to be used in a hazardous atmosphere, skid has a 60 amp Square D breaker, and explosion proof switches and controls.

Orientation: Horizontal. Seal Type: Liquid Ring. Temperature: 148.9 °C (300 °F).

Type: Column

Subtype: Packed

Manufacturer: Schott

Condition: Used

Material: Glasslined

Diameter (1): 600 mm (23.6 in)

Glasslined: Yes

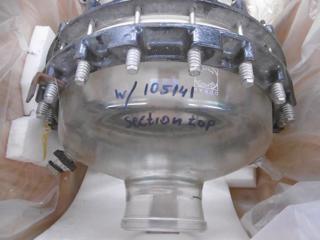

600mm inside diameter x 14.200mm overall height glass packed column. Manufactured by Schott Schleiffer Chemie-Technik in Switzerland Number of main parts: 13 Number of glass middle sections: 11 Glass cover top height: 400mm Glass cover top inside diameter: 600mm Glass cover top openings: (1) NW 200, (2) NW 25 Glass cover bottom height: 300mm Glass cover bottom inside diameter: 600mm Glass cover bottom openings: (1) NW 100 First middle section height: 600mm First middle section inside diameter: 600mm First middle section opening: (1) NW 80 Second middle section height: 1.500mm Second middle section inside diameter: 600mm Second middle section openings: (2) NW 50, (2) NW 25 Third middle section height: 1.500mm Third middle section inside diameter: 600mm Third middle section openings: (3) NW 50 Fourth middle section height: 1.500mm Fourth middle section inside diameter: 600mm Fourth middle section openings: (2) NW 25, (1) Fifth middle section height: 1.500mm Fifth middle section inside diameter: 600mm Fifth middle section openings: (2) NW 25 Sixth middle section height: 600mm Sixth middle section inside diameter: 600mm Sixth middle section openings: (1) NW 80 Seventh middle section height: 1.500mm Seventh middle section inside diameter: 600mm Seventh middle section openings: (2) NW 50, (2) NW 25 Eighth middle section height: 600mm Eighth middle section inside diameter: 600mm Eighth middle section openings: (1) NW 150 Ninth middle section height: 1.500mm Ninth middle section inside diameter: 600mm Ninth middle section openings: (2) NW 50, (2) NW 25 Tenth middle section height: 1.500mm Tenth middle section inside diameter: 600mm Tenth middle section openings: (2) NW 25 Eleventh middle section height: 1.200mm Eleventh middle section inside diameter: 600mm Eleventh middle section openings: (1) NW 150, (2) NW 100, (1) NW 50, (2) NW 25 Included items: support pipe construction, flanges, connection pieces, ceramics pall ring packing material, and many glass accessories.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 8,190 L (2,164 gallons)

Internal Pressure: 6 bar (87 psi)

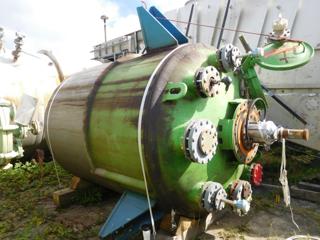

6,300 liter order number 60669 Pressure ratings: Internal -1/6 Bar @ -25/+200°C total volume 8,190 liters; Jacket rated -1/6 Bar @ -25/+200°C total volume 795 liters. Lined with glass WWG9115 With a top mounted drive with Burgmann mechanical seal type M462L-D20 and Burgmann Thermosyphon TS 2000 pneumatic bottom outlet valve, and solids dosing device,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 3,268 mm (128.7 in). Support Type: Lugs.

Type: Mixer-Intensive

Manufacturer: Koruma Mashinenbau GmbH

Model: DISHO V180/1300

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 1,300 L (343.4 gallons)

Motor Power: 51 kW (68.4 HP)

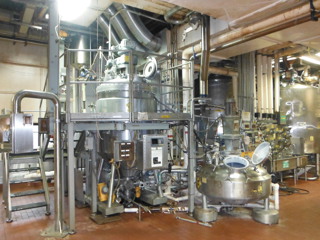

• DISHO Vacuum Mixing Dispersing and Homogenizing Unit. Vessel manufactured by Hebold, rated FV/36 psi at 356 degrees F internal; with a 24" cone bottom. It has a flanged and bolted dish top head. Vessel openings include: Top -14" manway with hinged cover, (3) 4"; (3) 1".
• Fully insulated with SS shroud over insulation. Mounted on legs with Top mounted double motion agitator with wide sweep with perforated pitched blades and side wall scrapers, and center shaft with perforated pitched blades that intermesh with counter rotating wide sweep agitator blades.
• 3/60/230/460 volt motor Vessel discharges into a horizontal DISHO homogenizing mill, multi chamber, driven by a 51 KW 3/60/230/460 volt motor. Complete skid mounted system with approx. 5 HP water seal vacuum pump, controls and stainless steel enclosure for pump and mill drive.

Bowl Diameter: 1,118 mm (44 in). Bowl Depth: 1,829 mm (72 in). Blade Type: wide sweep & pitched perforated blade w/ side wall scraper. Pressure: 2.5 bar (36.3 psi). Temperature: 180 °C (356 °F). Bowl Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 180 °C (356 °F). Vacuum: Yes. Controls: Yes.

Type: Pulverizer

Subtype: Hammer

Manufacturer: Pennsylvania

Model: SXCAG 104-42

Condition: Used

Material: Carbon Steel

Capacity: 283.2 m3 (10,000 ft3)

Outlet Discharge Diameter: 2,019 mm (79.5 in)

• reversible hammer mill
• Rated for 250 TPH at 900 rpm, designed to crush Coal at 50 PCF.
• 6 rows of hammers (17) hammers each with 2 end hammers per row staggered.\
• With feed and discharge shuts, vibrater on feed side.
• 10,000 Cu Ft based on 1 ton =40 cu ft

Inlet Diameter: 1,880 mm (74 in). Motor Power (Design): 372.9 kW (500 HP). Speed (RPM): 900. Orientation: Horizontal.

Type: Mixer-Ribbon & Paddle

Manufacturer: Young Industrial Machinery

Condition: Used

Material: Stainless Steel 304

Design Capacity: 0.28 m3 (10 ft3)

Operating Capacity: 0.17 m3 (6 ft3)

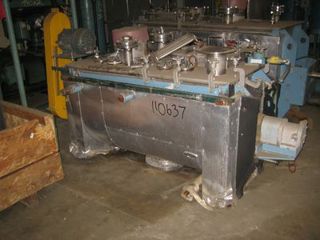

CS jacketed ribbon blender Internal pressure rated 3 psi @ 200 deg. F to -20 deg. F min.
Jacket is rated 60 psi @ 200 deg. F to -20 deg. F min. Blender configuration is full flat top cover with center bottom outlet. Shaft has stuffing box, ribbon design is removable, continuous double ribbon with Teflon wipers Shaft is driven through a Dodge shaft mounted reducer with a 24.7/1 gear reducer. Top cover is clamp on removable design. Top cover openings include 2-4", 1-8", 2-1", and 1 top feed/manway opening of 12"x16". Vessel is fully insulated. Center bottom outlet is approx. 6" and discharges through a knife gate into a Young motorized 2-3 hp delumper.

Vessel Pressure: 13.8 bar (200 psi). Vessel Temperature: -16.1 °C (3 °F). Ribbon Type: Double Helix.

Type: Centrifuge-Peeler

Manufacturer: Krauss Maffei

Model: HZ630 PH

Condition: Used

Material: Hastelloy - C22

Basket Diameter: 630 mm (24.8 in)

Basket Depth: 315 mm (12.4 in)

• Pharmaceutical design. This centrifuge has a clear distinction between the process area/clean room and the drive area. The processing area is free of dead space and allows for complete inspection and sterilization.
• The filter medium is installed inside the cantilever mounted screen basket.
• This centrifuge is Gas tight (over -pressure) to 0.04 bar. With feed and wash pipes, hydraulic plow with pneumatic heel cake removal system and solids discharge chute, with door lock switch.
• Internal accessories are Hastelloy C-22, Gasketing is PTFE.

Filtration Area: 0.6 m² (6.5 ft²). Motor Power: 18 kW (24.1 HP). Speed-RPM Maximum: 2,365. G Force: 1,960. Load Weight: 54 kg (119 lb). Gas Tight: Yes.
