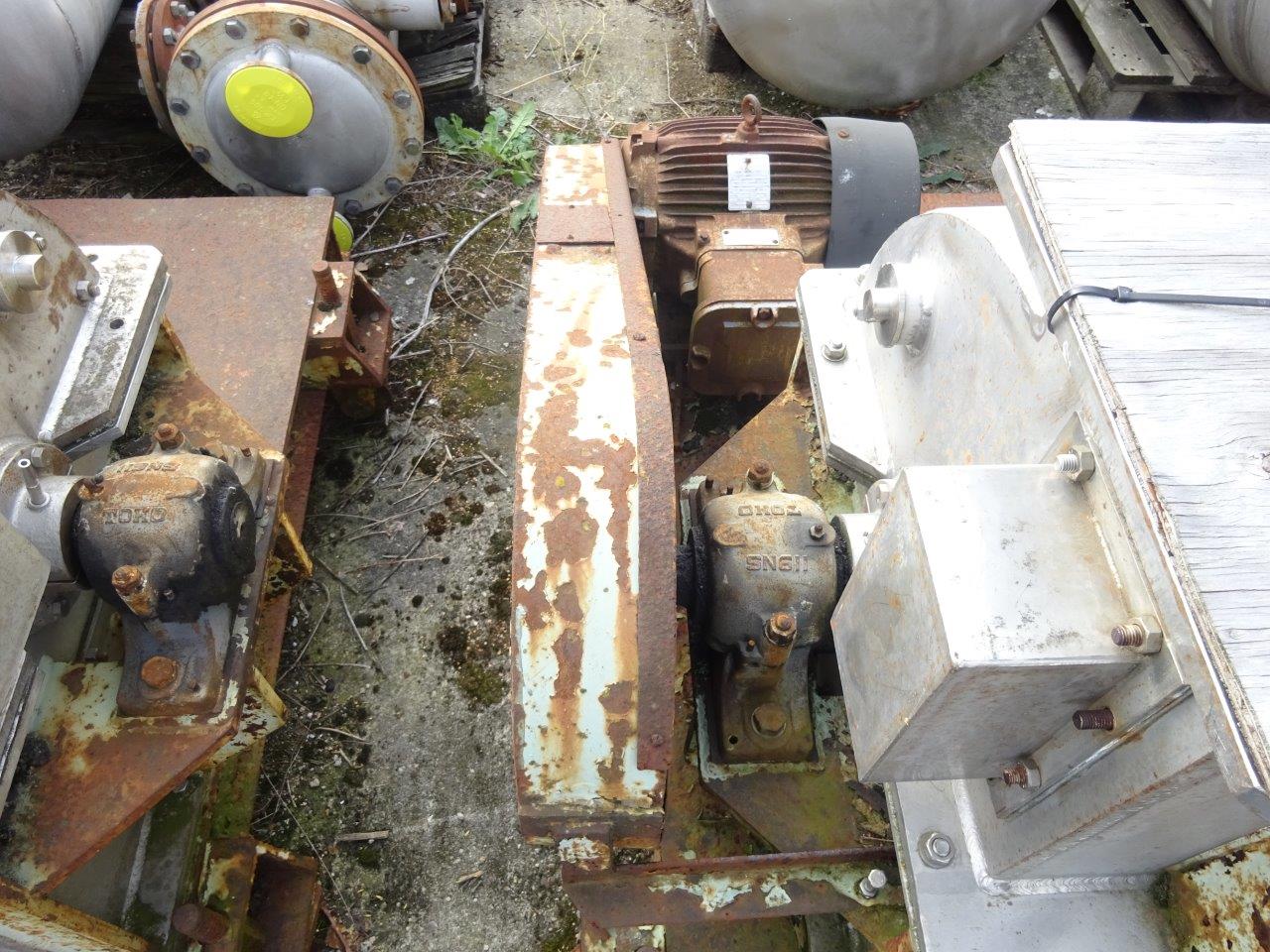

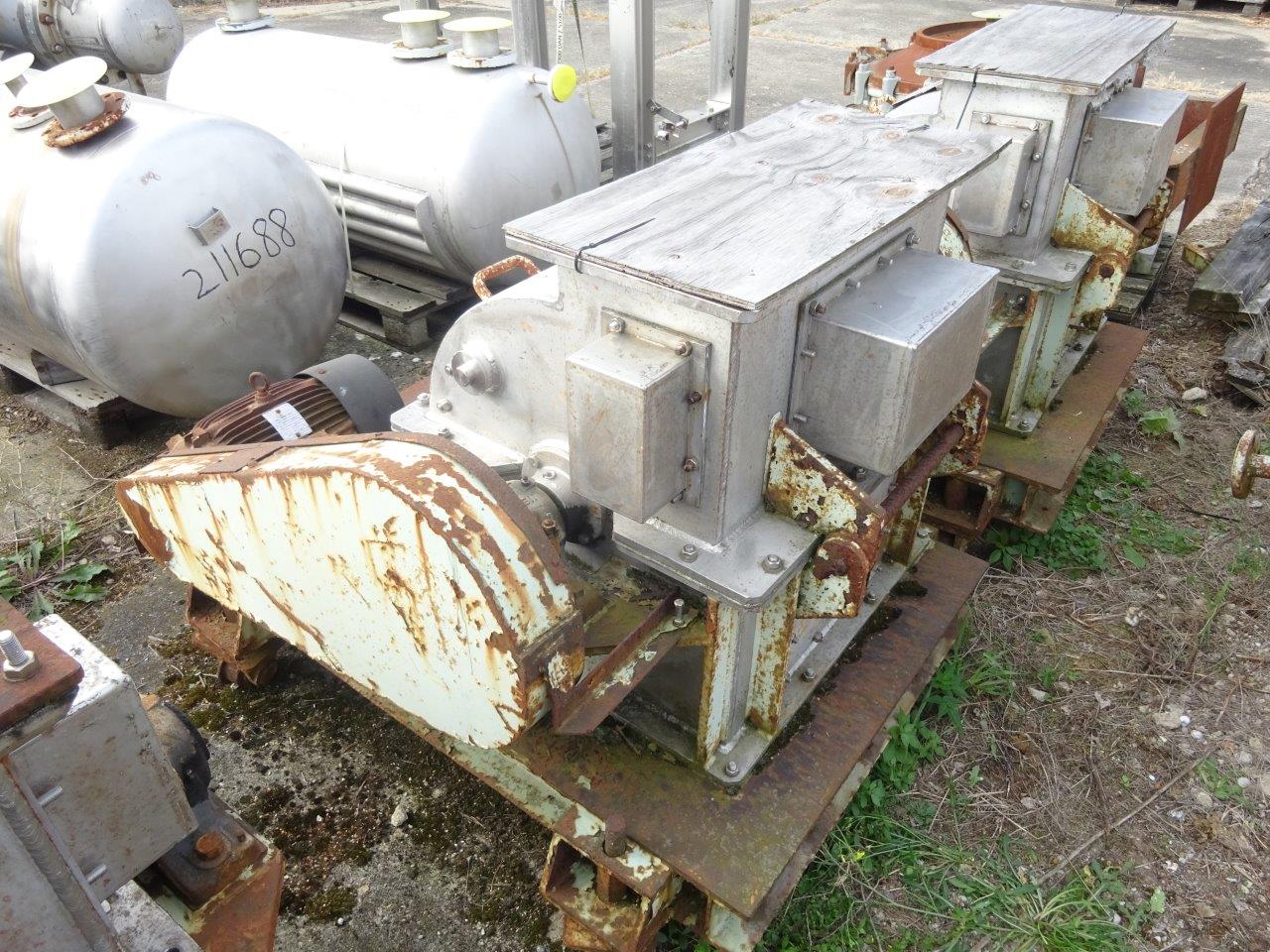

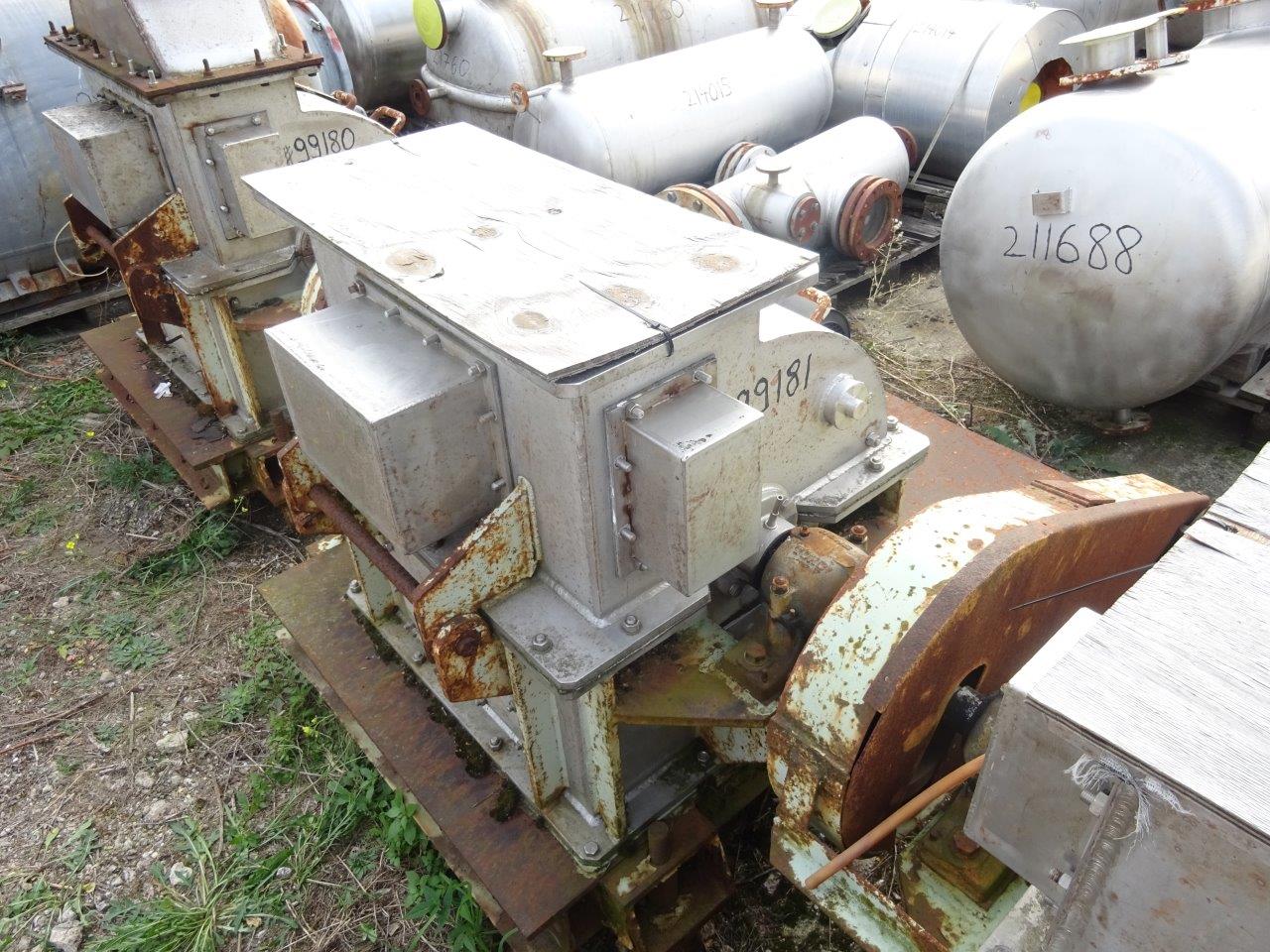

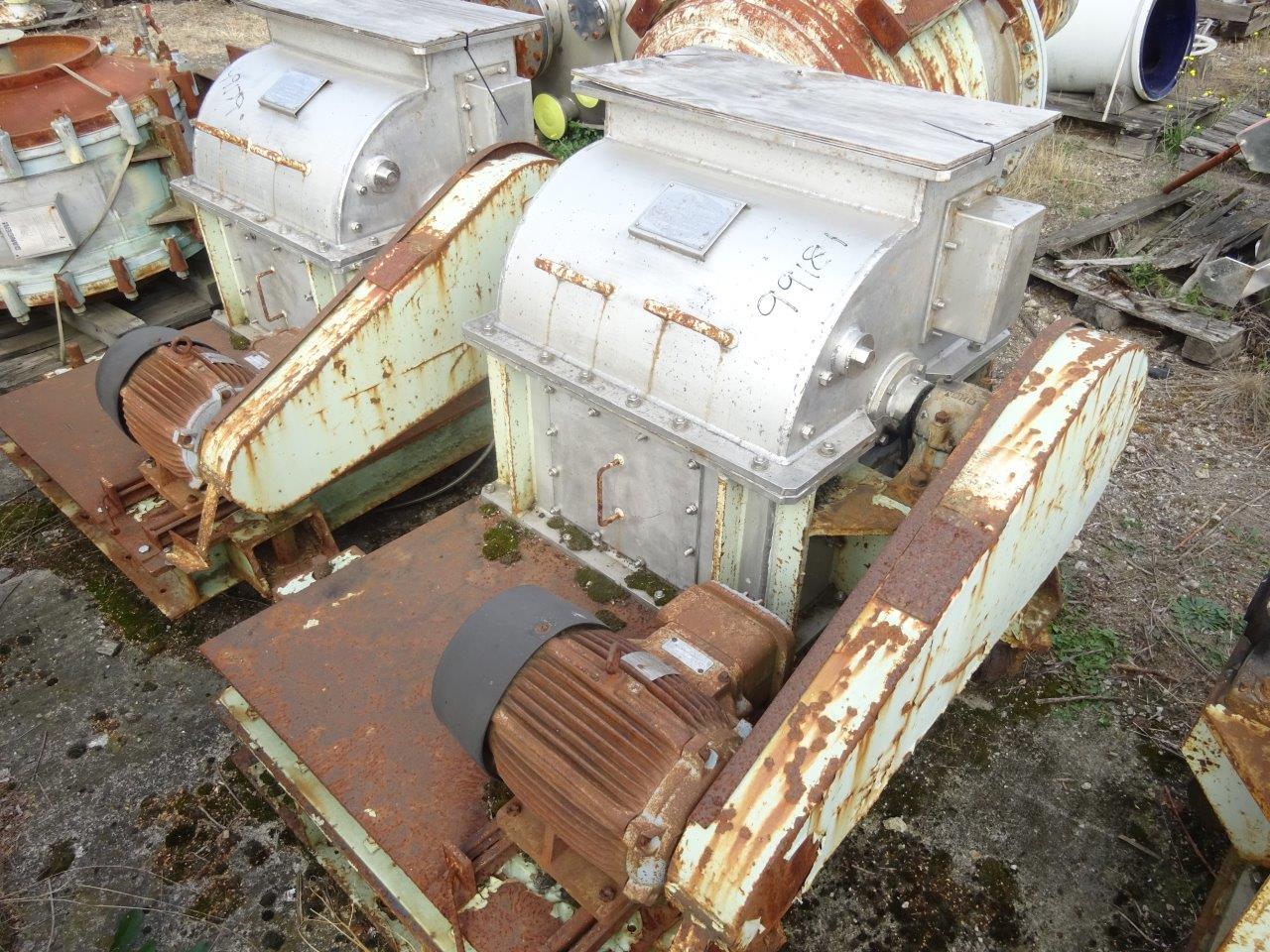

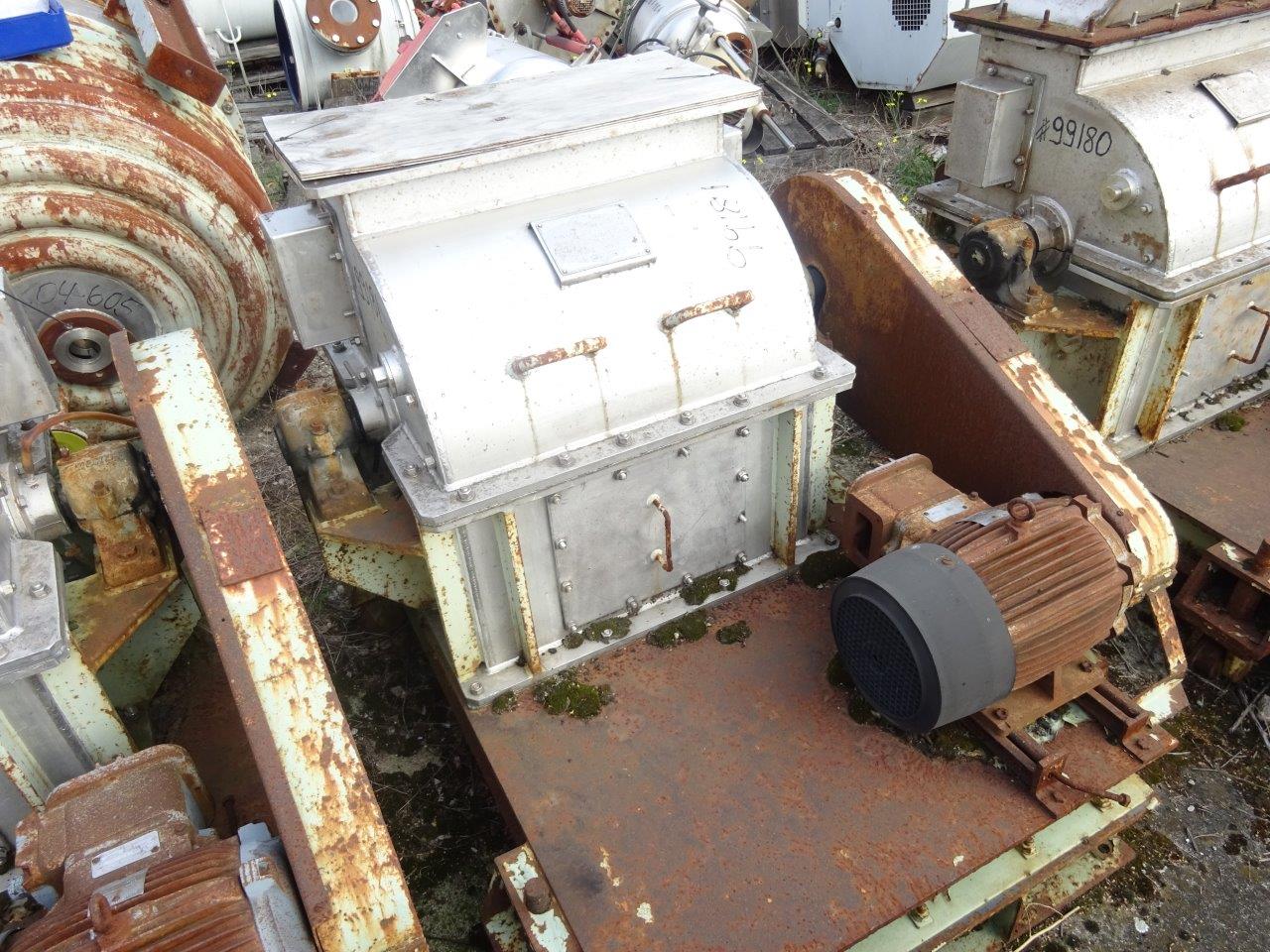

Top feed, gravity discharge Has (16) fixed blades, sharp on one side, on 24" (620mm) long rotor. Has outboard bearing and removable rotor. 25" x 10" feed, 22" x 16" discharge Housing on hinge.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: 450MM
Condition: Used
Material: Stainless Steel 304
Outlet Discharge Diameter: 558.8 mm (22 in)
Inlet Diameter: 635 mm (25 in)
Top feed, gravity discharge. Has (16) fixed blades, sharp on one side, on 24" (620mm) long rotor. Rotor belt driven by 5 HP (3.7 KW), 3/50/380 volt,X-proof motor Has outboard bearing and removable rotor 25" x 10" feed, 22" x 16" discharge Housing on hinge.
Motor Power (Design): 3.7 kW (5 HP). Orientation: Horizontal.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: Multiplex 315 UPZ
Condition: Used
Material: Stainless Steel 304
Capacity: 11 m3 (388.5 ft3)
Outlet Discharge Diameter: 156.5 mm (6.2 in)
rated: 11 DCuM, 0.05 bar, 60°C., 10 bar overpressure stud disc diameter: 315 mm, plate beater: 298 mm, swing beater: 298mm, air inlet: DN 100 mm
Inlet Diameter: 150 mm (5.9 in). Motor Power (Design): 22 kW (29.5 HP). Orientation: Horizontal. Pressure: 0.05 bar (0.73 psi). Temperature: 60 °C (140 °F).
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)

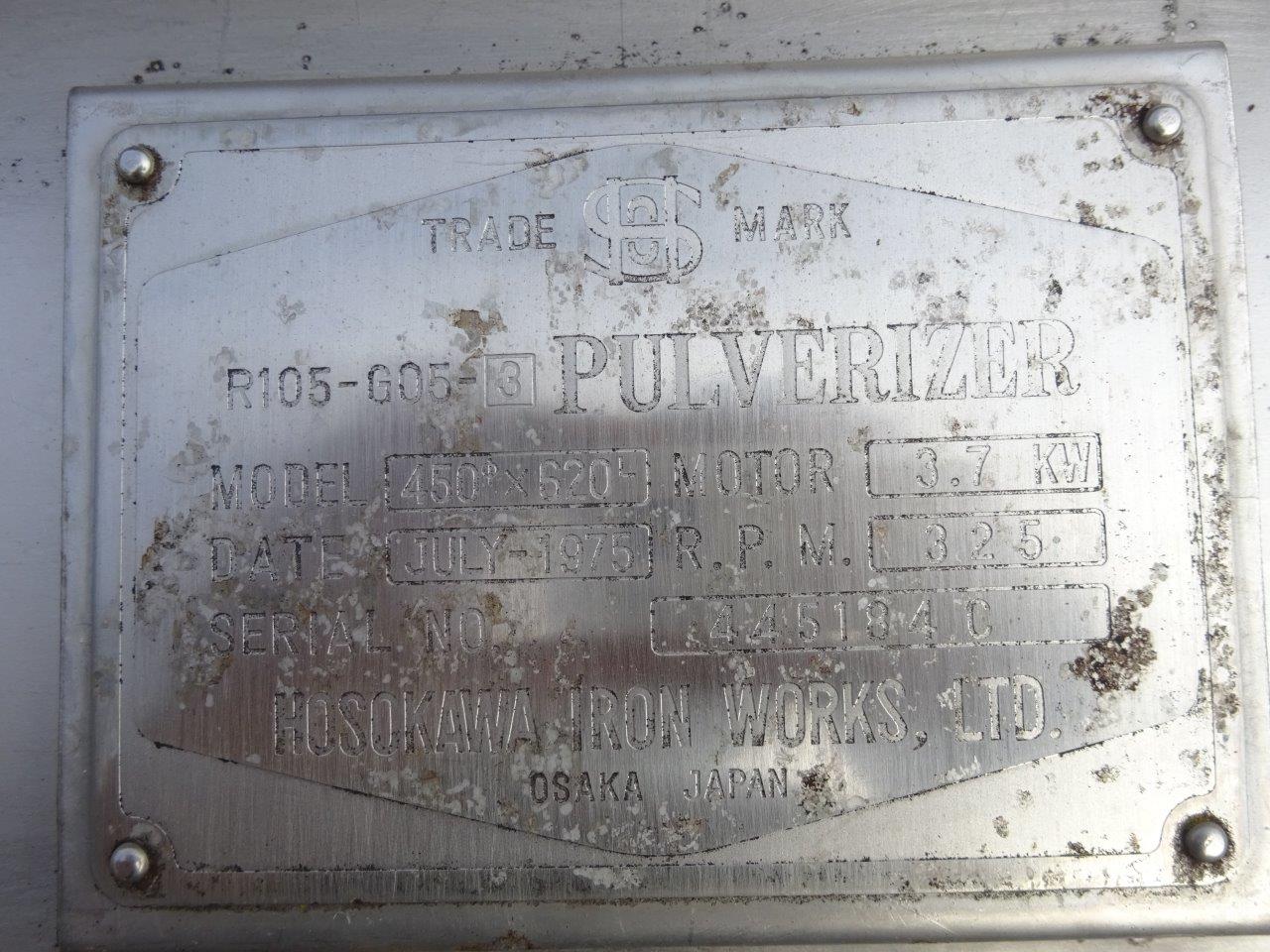

Model: 450mm dia x 620 L
Condition: Used
Material: Stainless Steel 304
Outlet Discharge Diameter: 558.8 mm (22 in)
Inlet Diameter: 635 mm (25 in)
Top feed, gravity discharge. Has (16) fixed blades, sharp on one side, on 24" (620mm) long rotor. X-proof motor. Has outboard bearing and removable rotor. 25" x 10" feed, 22" x 16" discharge Housing on hinge.
Motor Power (Design): 3.7 kW (5 HP). Orientation: Horizontal.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: 710-CW
Condition: Used
Material: Stainless Steel 321
Motor Power (Design): 48 kW (64.4 HP)
Orientation: Horizontal
48 kw contraplex wide chamber impact pin mill with 2-driven counter rotating pin discs throughput 1.2 ton/hour housing disc belt driven by 48kw, 3/50/660 volt, 1480/2800 rpm Ex II T3 motor, front door disc belt driven by 36/49kw, 3/50/660 volt, 1150/1550 rpm Ex II T3 motor, hinged front door,
Temperature: 60 °C (140 °F).
