54" dia x 10' long shell 16" dia charge port w/cover, 16" dia hydraulic operated center btm outlet. Bolt flat ends. Approx 8" dia SS hollowshaft w/SS paddles.
Type: Dryer-Rotary Vacuum
Manufacturer: Devine
Condition: Used
Material: Stainless Steel 304
Capacity Design: 3.8 m3 (133 ft3)
Capacity Working: 2.8 m3 (100 ft3)

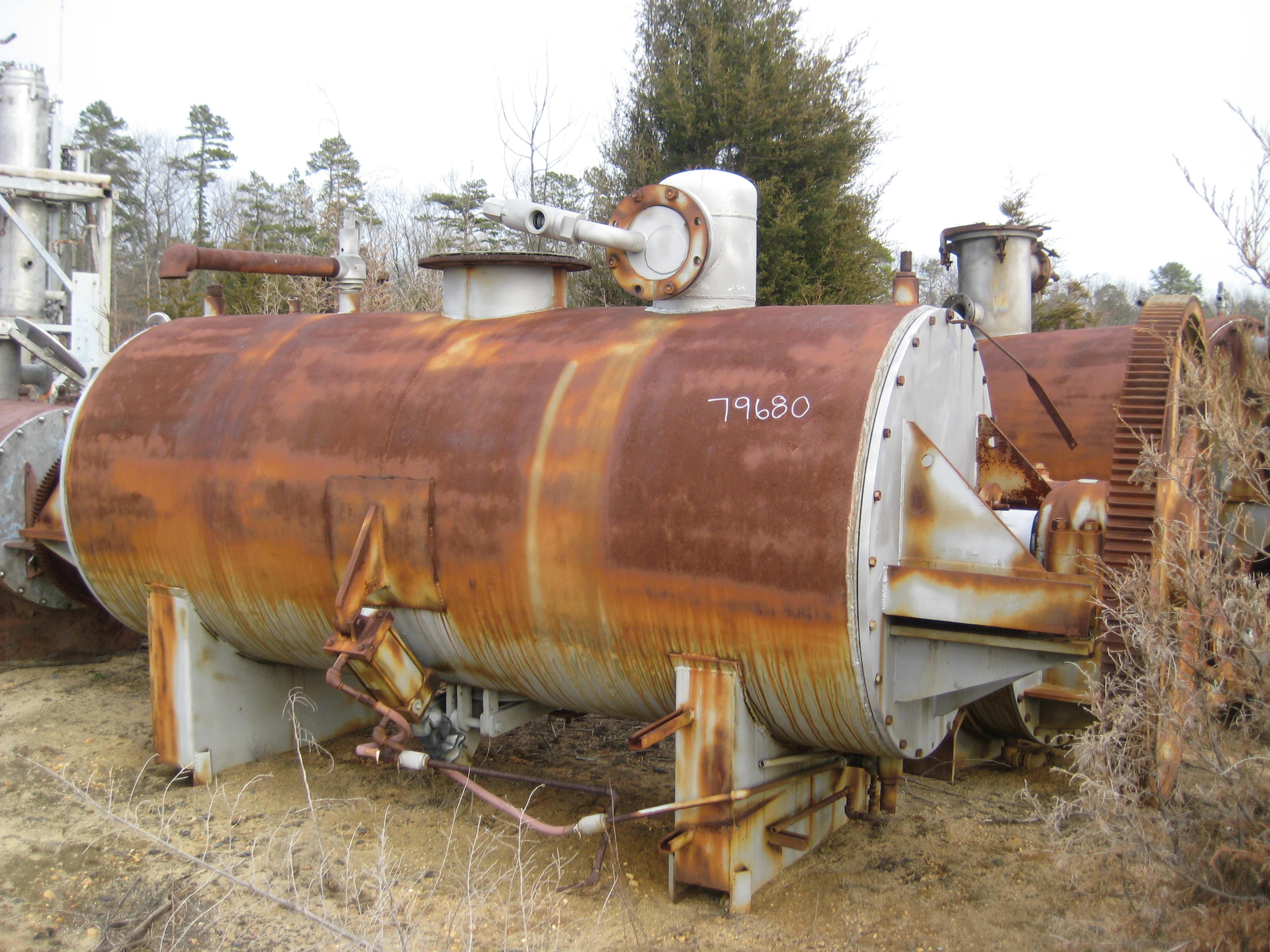

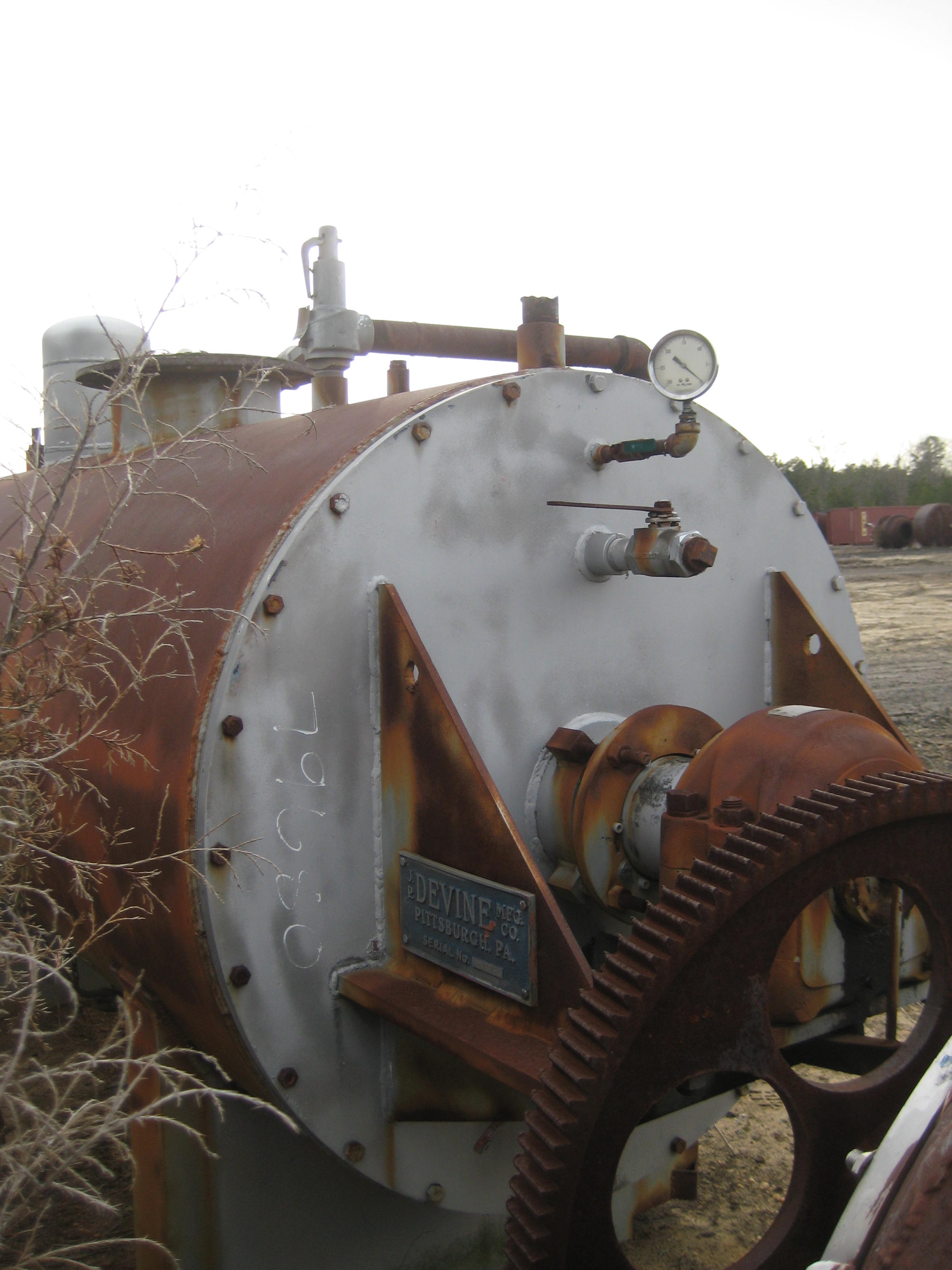

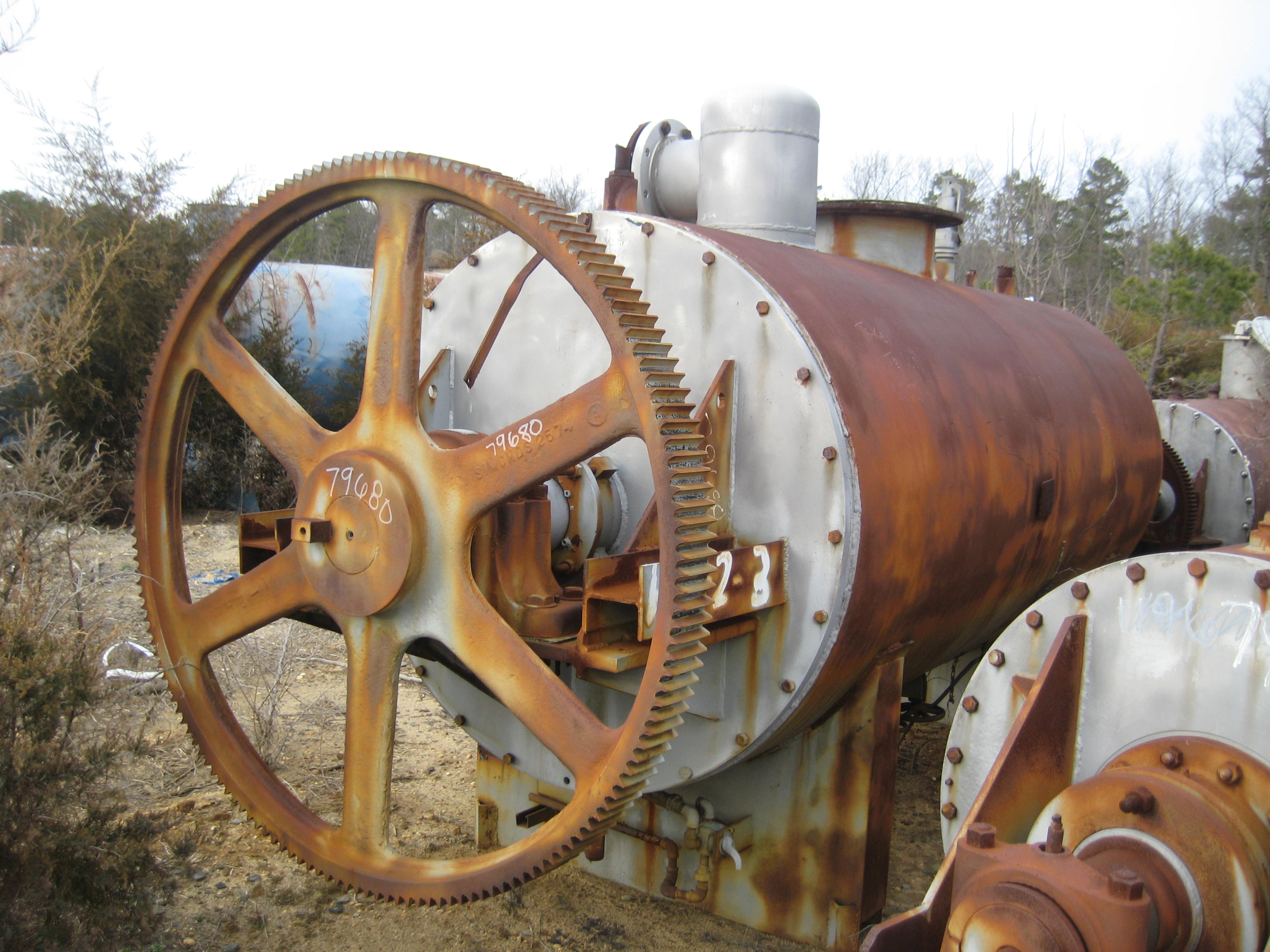

Rotary vacuum dryer 54" dia x 10' long shell. 16" dia charge port w/cover 10" center btm outlet. Bolt flat heads w/2-4" end discharge. 16" x 22" end opening w/bolt cover. Approx 8" x 8" sq hollowshaft w/SS paddles, gear driven. No motor.
Diameter: 1,372 mm (54 in). Length: 3,048 mm (120 in). Rated for Vacuum: Yes. Heat Transfer Surface Area: 13.1 m² (141 ft²). Orientation: Horizontal. Agitation: Yes. Jacket Material: Carbon Steel.
Type: Dryer-Rotary Vacuum
Manufacturer: Devine
Condition: Used
Material: Stainless Steel 316
Capacity Design: 2.8 m3 (100 ft3)
Capacity Working: 1.98 m3 (70 ft3)
Rotary vacuum dryer Vessel rated for Full vacuum 12.5" diameter cored shaft with 24 fixed plows. Outboard bearings with packing glands.
Diameter: 1,219 mm (48 in). Length: 3,048 mm (120 in). Rated for Vacuum: Yes. Heat Transfer Surface Area: 11.7 m² (126 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Agitation Seal Type: Packing. Jacket Pressure: 2.4 bar (35 psi). Jacket Temperature: 104.4 °C (220 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Devine
Condition: Used
Material: Stainless Steel 316
Capacity Design: 1.13 m3 (40 ft3)
Capacity Working: 0.85 m3 (30 ft3)
w/single ribbon type agit no int rating 32" dia x 8' long shell Bolt flat heads w/1-2" opening 16" dia charge port 12" dia center btm discharge No drive or motor
Diameter: 812.8 mm (32 in). Length: 2,438 mm (96 in). Rated for Vacuum: Yes. Heat Transfer Surface Area: 12.6 m² (136 ft²). Orientation: Horizontal. Agitation: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Blaw Knox
Condition: Used
Material: Stainless Steel 304
Capacity Design: 3.5 m3 (125 ft3)
Capacity Working: 2.3 m3 (82 ft3)
4' diameter x 10' long chamber. as 24" cored shaft with paddles and removable scrapers. No drive available. Unit has chain guards for drive. Top openings one 12", one 10 ". Jacket openings are 2" NPT. 12" bottom discharge.
Diameter: 1,219 mm (48 in). Length: 3,048 mm (120 in). Height: 2,134 mm (84 in). Rated for Vacuum: Yes. Heat Transfer Surface Area: 11.7 m² (126 ft²). Agitation Seal Type: Packing. Jacket Material: Carbon Steel.
