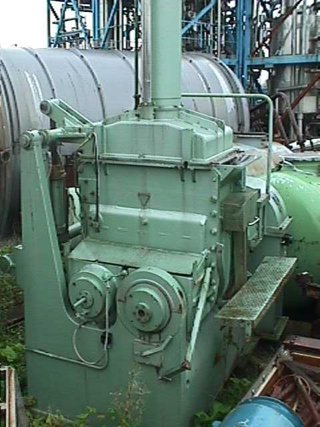

Mixer-Double Arm 500 L (132.1 gallons) For Sale - IPP# 705571

Type: Mixer-Double Arm

Manufacturer: Werner & Pfleiderer

Condition: Used

Material: Carbon Steel

Capacity (Design): 500 L (132.1 gallons)

Capacity (Working): 330 L (87.2 gallons)

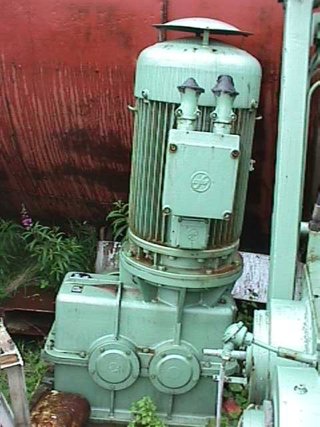

Mixer type: Double arm mixer trough 968mm wide x 826mm long x 764mm deep, by 1.1 kw, 3/50/500V, 1400 rpm motor, driven by (2) hydraulic pumps, driven by 1.1 kw, 3/50/500V, 1400 rpm motor, acoustic cabinets around motor and gearbox.

Jacket Pressure: 17.7 bar (256.1 psi). Jacket Temperature: 230 °C (446 °F). Jacket Material: Carbon Steel. Blade Type: "Z" blades. Tilting: Yes. Hydraulics: Yes.

Type: Mixer-Double Arm

Manufacturer: Werner & Pfleiderer

Condition: Used

Material: Carbon Steel

Capacity (Design): 500 L (132.1 gallons)

Capacity (Working): 330 L (87.2 gallons)

Type of mixer: Double arm mixer trough 968mm wide x 826mm long x 764mm deep, by 1.1 kwm 3/50/500V, 1400 rpm motor,
hydraulic tilting mechanism (2) hydraulic pumps, driven by 1.1 kwm 3/50/500V, 1400 rpm motor, acoustic cabinets around motor and gearbox.

Jacket Pressure: 17.7 bar (256.1 psi). Jacket Temperature: 230 °C (446 °F). Jacket Material: Carbon Steel. Blade Type: "Z" blades. Tilting: Yes. Hydraulics: Yes.

Type: Mixer-Double Arm

Manufacturer: Werner & Pfleiderer

Condition: Used

Material: Carbon Steel

Capacity (Design): 500 L (132.1 gallons)

Capacity (Working): 330 L (87.2 gallons)

Type of mixer: Double arm mixer trough 968mm wide x 826mm long x 764mm deep hydraulic tilting mechanism (2) hydraulic pumps driven by 1.1 kw, 3/50/500V, 1400 rpm motor, acoustic cabinets around motor and gearbox.

Jacket Pressure: 17.7 bar (256.1 psi). Jacket Temperature: 230 °C (446 °F). Jacket Material: Carbon Steel. Blade Type: "Z" blades. Tilting: Yes. Hydraulics: Yes.

Type: Mixer-Double Arm

Manufacturer: Werner & Pfleiderer

Model: UK14HS

Condition: Used

Material: Stainless Steel 304

Clad: Yes

Capacity (Design): 450 L (118.9 gallons)

Capacity (Working): 200 L (52.8 gallons)

jacketed vacuum blender. With hydraulic tilt discharge. Hydraulically operated compression plate. Geared both ends. 60/100 KW (78/130 HP), 3/50/380 volt motor, 740/1480 rpm Coupled to Wulfel gear reducer Mdl FVKA2II, rated 80/140 PS, SN 79336, 750/106, 1500/211 rpm.

Jacket Pressure: 10.1 bar (146 psi). Jacket Temperature: 183 °C (361.4 °F). Blade Type: 2x cored dispersion blades,. Tilting: Yes. Vacuum: Yes. Hydraulics: Yes.
