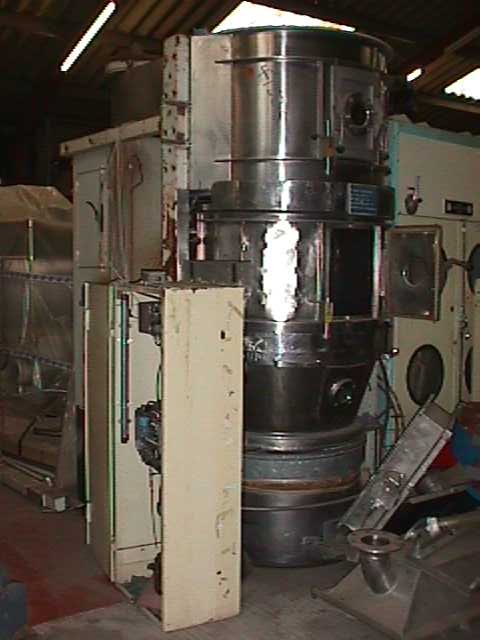

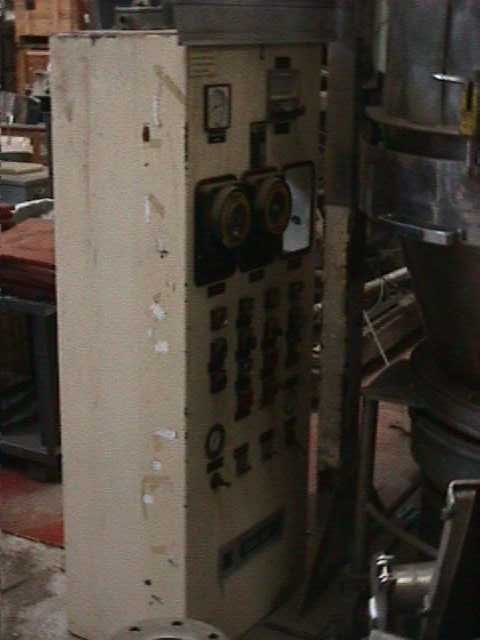

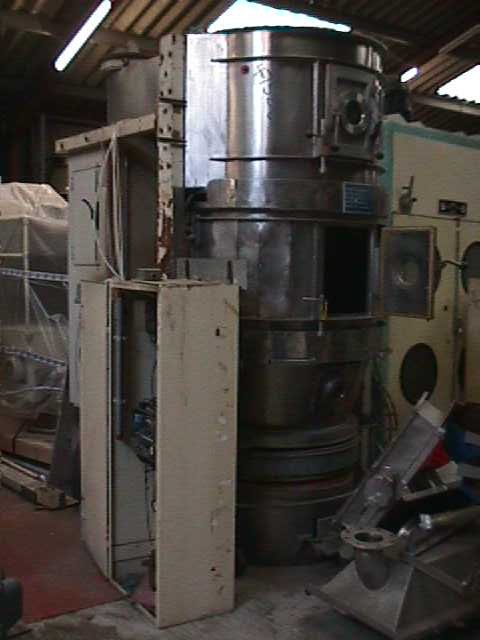

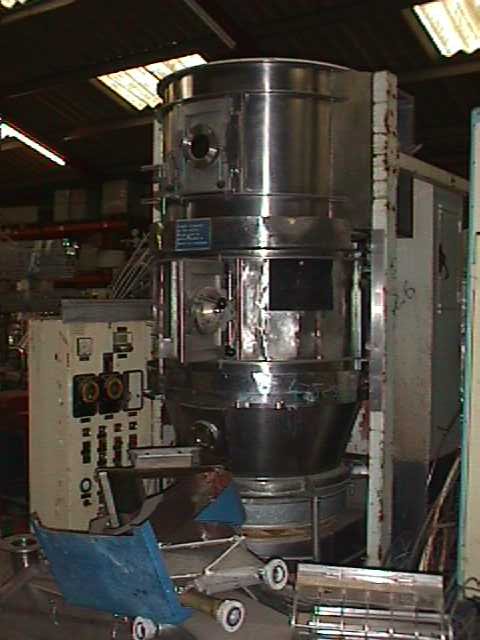

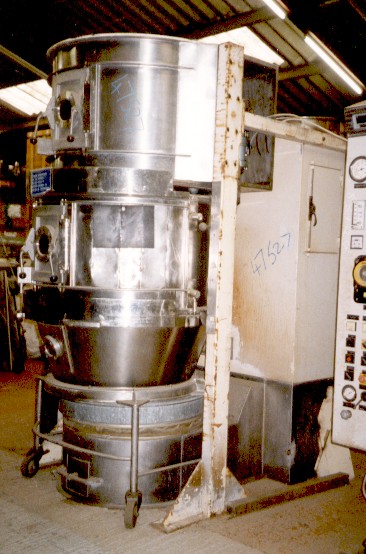

250 Kg Fluid Bed Dryer batch type Steam heater rated 140000 Kcal/hr steam Motor: 3 phase 220/380 volt With (2) product bins 1200mm upper diameter, 800mm lower diameter, sanitary polished Drying chamber 3.5m high (11'6") x 1.2m diameter (48") With a control panel indicating air temperature, timers, intervals, vibration indicator of dust collector
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: WST120
Condition: Used
Material: Stainless Steel 304
Capacity: 420 L (111 gallons)
Air Flow Rate: 5,000 m3/h (2,943 CFM)
120 Kg Rated approx. 871,000 Kcal/hour steam Heaters @ 6 bar, 330 Kgs/hour vapor consumption @ 3 bar and -10 degrees C/+80 degrees C 3 bar Motor: 3 phase 12090mm cylindrical type drying chamber with explosion door (2) 304 stainless steel product bins Bin dimensions: 500 liter, top 1200mm diameter x bottom 1000mm diameter Pneumatic bin locking mechanism, control panel Unit with all ancillaries
Pressure: 3 bar (43.5 psi). Temperature: 80 °C (176 °F). Bowl Diameter: 1,200 mm (47.2 in). Bowl Height: 1,000 mm (39.4 in). Orientation: Vertical. Operational Mode: Batch.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: WST120
Condition: Refurbished/Rebuilt
Material: Stainless Steel 304
Capacity: 420 L (111 gallons)
Air Flow Rate: 5,981 m3/h (3,520 CFM)
250 Kg Steam heater rated 140000 Kcal/hr steam (2) product bins 1200mm upper diameter, 800mm lower diameter, sanitary polished with control panel indicating air temp, timers, intervals, vibration indicator of dust collector
Pressure: 6 bar (87 psi). Bowl Diameter: 1,200 mm (47.2 in). Bowl Height: 3,500 mm (137.8 in). Operational Mode: Batch. Dust Collection: Yes.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: TFO 300-400
Condition: Used
Material: Stainless Steel 304
Capacity: 700 L (184.9 gallons)
Air Flow Rate: 14,000 m3/h (8,240 CFM)

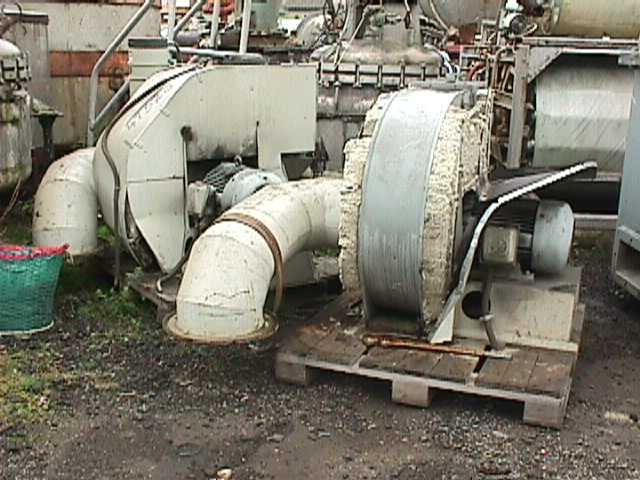

load weight 300 kg special Vitamin-A-Pulver, with cyclones heater and cooler and de-dusting system Filter housing is 1.6m diamter, 2.5mm thick, with (59) bags, at the bottom of the filter housing is a tapered section that has a buterfly valve controling flow into the hopper bottom. Hopper bottom is 304 stainless steel (1.4301), 1190 mm diameter x 640 mm straight side with a 660 mm deep cone. Bottom hopper mounted on 4 legs with wheels. With seperate heating cooling box, rated - heater rated 320,000 Kcal/hr @ 5 atu, air cooler rated 400,000 kcal/hr @ 0/4 degrees c. Main fan is rated 14,000 CuM/Hr, 2900 upm, driven by a 35.8 KW, 3 phase 50 cycle, ExeG3 rated motor
Pressure: 5 bar (72.5 psi). Bowl Diameter: 1,190 mm (46.9 in). Bowl Height: 1,300 mm (51.2 in). Orientation: Vertical.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: TFO 300-400
Condition: Used
Material: Stainless Steel 304
Capacity: 700 L (184.9 gallons)
Air Flow Rate: 14,000 m3/h (8,240 CFM)
300 kg special Vitamin-A-Pulver with cyclones heater and cooler and de-dusting system Filter housing is 1600 mm diamter, 2.5mm thick with (59) bags at the bottom of the filter housing is a tapered section that has a buterfly valve controling flow into the container bottom Hopper bottom is 304 stainless steel (1.4301), 1190 mm diameter x 640 mm straight side with a 660 mm deep cone with a 660 mm deep cone. With separate heating cooling box, rated - heater rated 320,000 Kcal/hr @ 5 atu, air cooler rated 400,000 kcal/hr @ 0/4 degrees c. Main fan is rated 14,000 CuM/Hr, 2900 upm, driven by a 35.8 KW, 3 phase 50 cycle, ExeG3 rated motor.
Pressure: 5 bar (72.5 psi). Bowl Diameter: 1,190 mm (46.9 in). Bowl Height: 1,300 mm (51.2 in). Orientation: Vertical.
