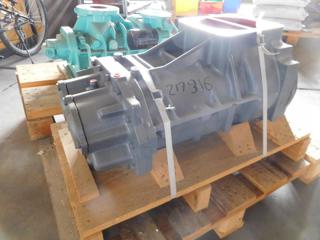

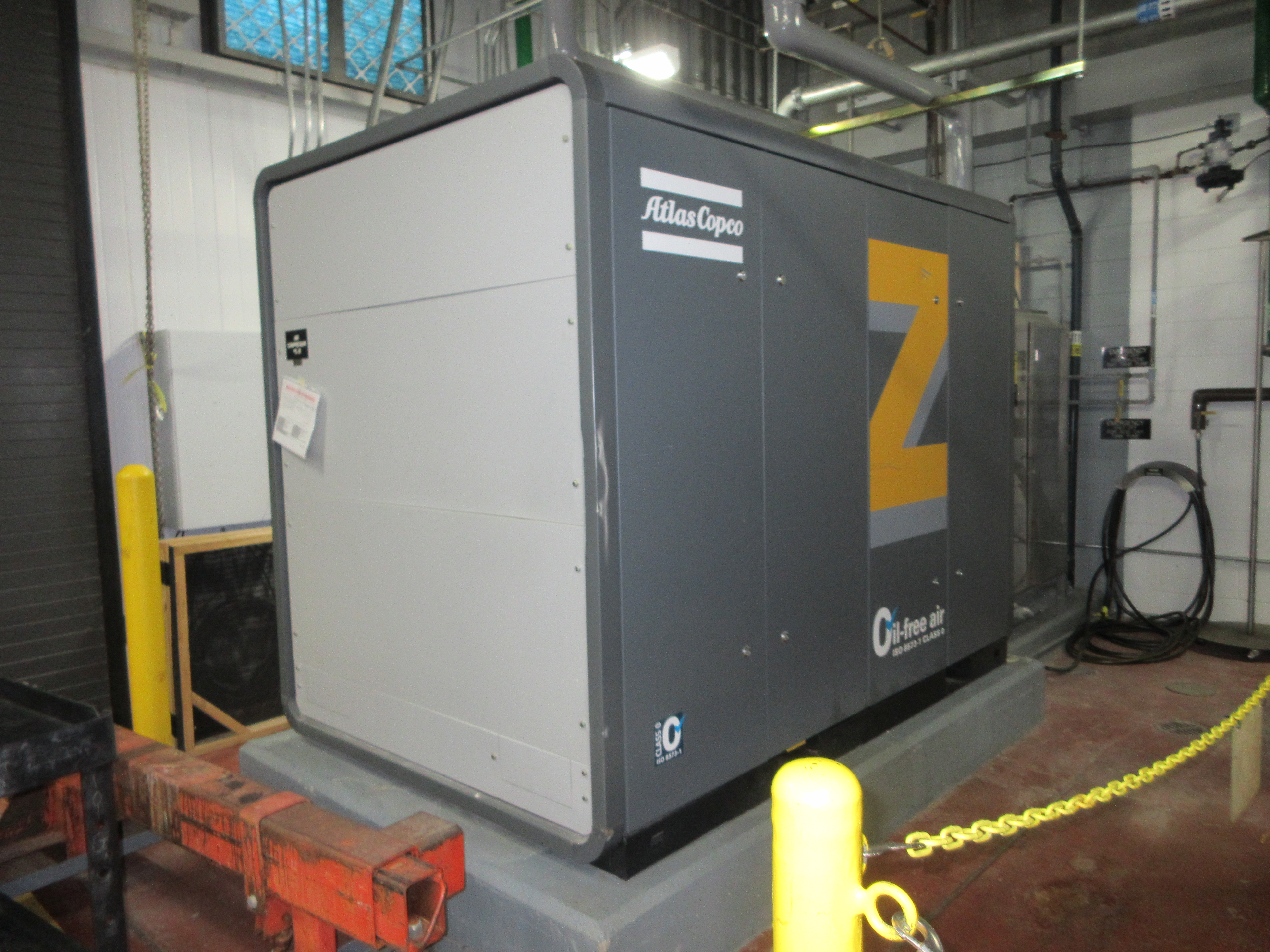

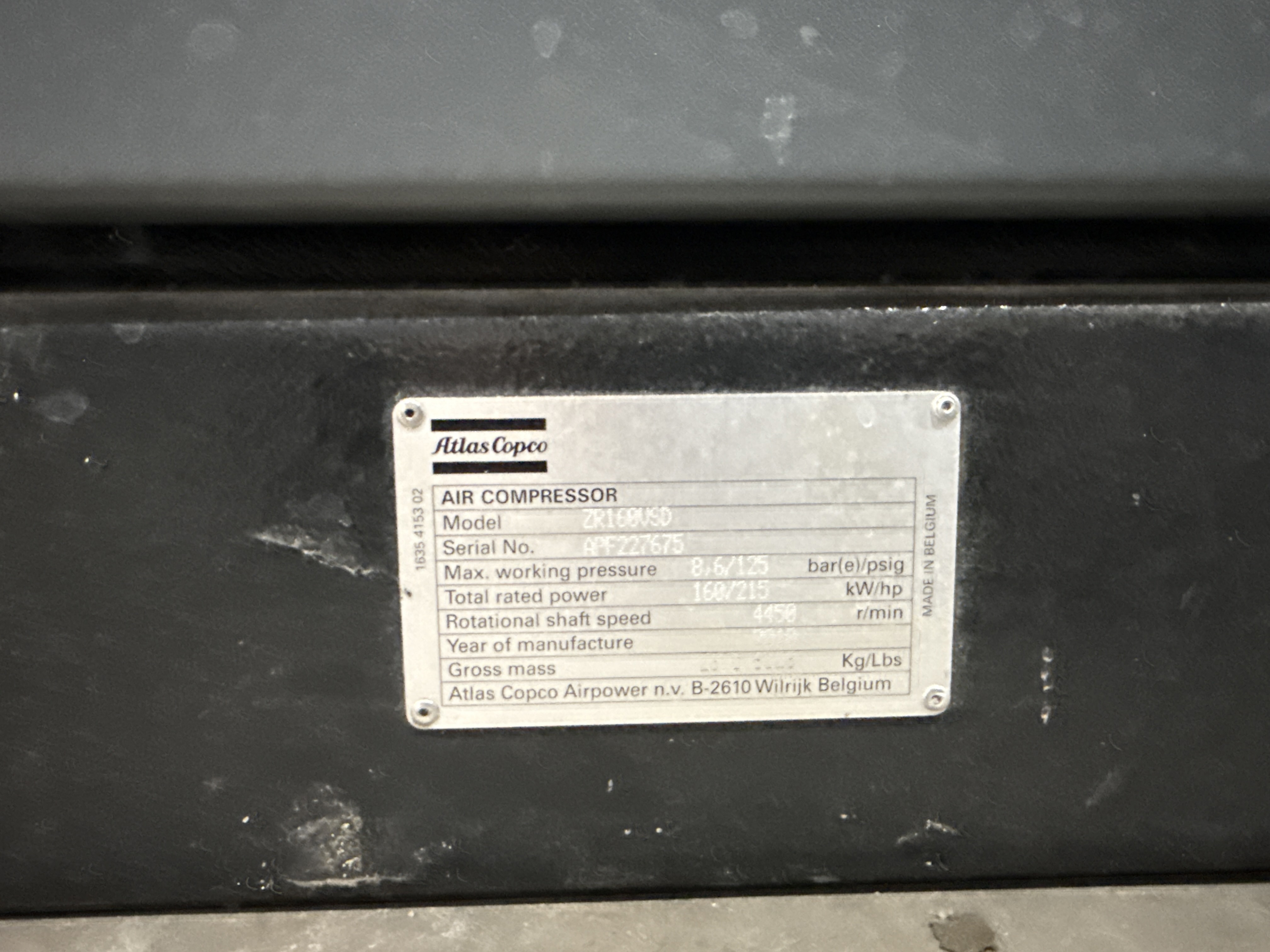

Centrifugal Compressor - IPP# 247406

Type: Compressor

Subtype: Centrifugal

Manufacturer: Atlas Copco

Model: 1616 6551 80

Condition: Unused

Material: Carbon Steel

Compressor Type: Centrifugal

Air end compressor head Part # 1616 6551 GA55 GBD- part # 2901-0844-00.

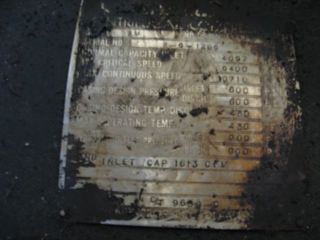

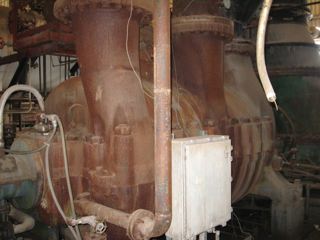

Type: Compressor

Subtype: Centrifugal

Manufacturer: Clark

Model: 4M9-7

Condition: Used

Material: Carbon Steel

Compressor Type: Centrifugal

Inlet Pressure: 0.97 bar (14.1 psi)

Compound centrifugal compressor with seven impellers and labyrinth seals Inlet pressure is 14.07 psia in the first section and 40.4 psia in the second section

• Gas handled: air, with an average compressibility factor of 1.0
• First section discharge pressure: 42.9 psia
• Second section discharge pressure: 86 psia
• Discharge temperature: 373.5 degrees F (first section), 281.6 degrees F (second section)
• Pressure drop between sections: approximately 2 psi
• Operating speed: 5380 rpm
• Brake horsepower (BHP): 2662 (first section), 1748 (second section)
• Maximum continuous speed: 5,650 rpm
• First critical speed: 2,670 rpm
• Inlet sizes: 30" (up connection), 10" (up connection)
• Discharge sizes: 20" (both)
• Driven by: steam turbine (IPP# 212810) through a gear reducer (IPP# 212811)
• Lubrication: shares a common lubrication skid.

Discharge Pressure: 5.9 bar (86 psi). Flow Rate: 42,440 m3/h (24,979 CFM). Inlet Diameter: 762 mm (30 in). Speed (RPM): 5,650.

Type: Compressor

Subtype: Centrifugal

Manufacturer: Clark

Model: 2M8-6

Condition: Used

Material: Carbon Steel

Compressor Type: Rotary

Inlet Pressure: 0.97 bar (14.1 psi)

4,079 acfm rotary air compressor Direct driven by a steam turbine (IPP# 212810) through a gear reducer (IPP# 212811) Pressure Suction 14.07 6400 rpm critical speed 12"" inlet X 10"" discharge Nozzle orientation is up

Discharge Pressure: 33.8 bar (490 psi). Flow Rate: 6,930 m3/h (4,079 CFM). Inlet Diameter: 304.8 mm (12 in). Speed (RPM): 10,211.

Type: Compressor

Subtype: Centrifugal

Manufacturer: Clark

Model: 2BF7-5

Condition: Used

Material: Carbon Steel

Compressor Type: Centrifugal

Inlet Pressure: 123.8 bar (1,796 psi)

2016 cfm, recycle stage forged CS case with 5 impellers Average compressibility factor 1.078 Inlet temperature 90 degrees F. Average compressibility factor 1.078. Discharge pressure at compressor flange 2529.9, discharge temperature 128.3 degrees F Second stage( or recycle gas) Inlet pressure 2337.9 psia, Inlet temperature 63 degrees F. Average compressibility factor 1.036. Discharge pressure at compressor flange 2523.4, discharge temperature 77.7 degrees F. Up-connected intake and discharge flanges with compound nozzles located at 45% from the vertical centerline The suction nozzles are 10" and 10", the discharge nozzles are 8" and 10" compressor BHP is 3679 Continuous speed is 11,000 rpm, first critical speed is 6,400 rpm Originally part of a complete train that was driven by a steam turbine (not included). Uses a common lube oil system with the train. Compressor BHP: 3679

Discharge Pressure: 174.4 bar (2,530 psi). Flow Rate: 1,247 m3/h (734 CFM). Inlet Diameter: 254 mm (10 in). Speed (RPM): 11,000.
