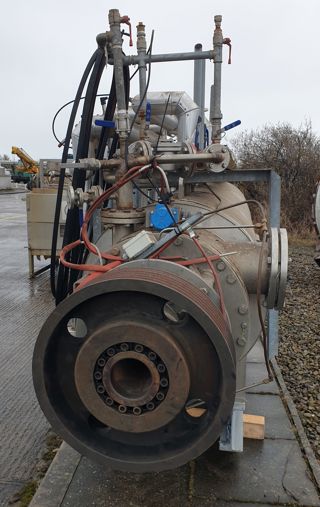

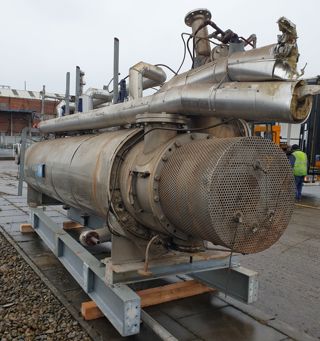

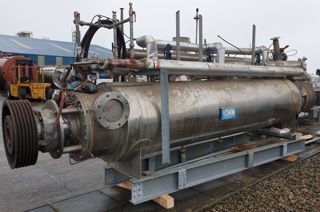

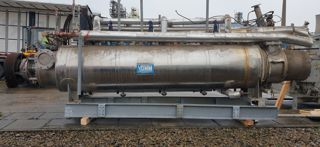

Stainless Steel 304 VOMM Turbotechnologia Dryer- Ribbon & Paddle

Type: Dryer- Ribbon & Paddle

Manufacturer: VOMM Turbotechnologia

Condition: Used

Material: Stainless Steel 304

Design Capacity: 1.25 m3 (44.1 ft3)

Operating Capacity: 0.7 m3 (24.7 ft3)

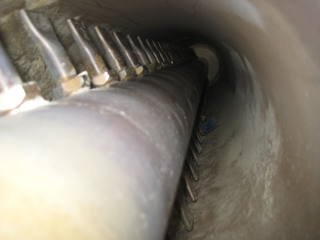

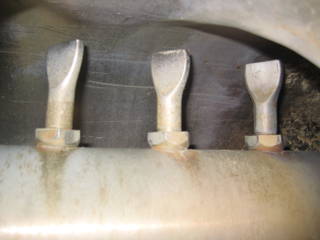

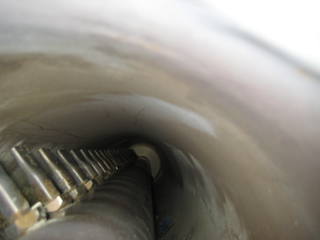

jacketed 'Turbo' continuous paddle dryer CE 600mm inside diameter x 3820mm straight side, bolt flat ends 3 x 304 stainless steel (1.4307) jacket sections on straight side only each jacket is 711mm outside diameter x 1246mm long

Vessel Pressure: 5 bar (72.5 psi). Vessel Temperature: 188 °C (370.4 °F). Jacket Pressure: 12 bar (174 psi). Jacket Temperature: 188 °C (370.4 °F). Operational mode: Continuous.

1.08 m3 (38 ft3) Stainless Steel 304 Dryer- Ribbon & Paddle

Type: Dryer- Ribbon & Paddle

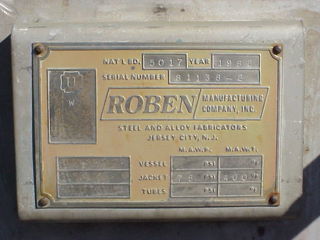

Manufacturer: Roben Manufacturing Co

Model: Nara

Condition: Used

Material: Stainless Steel 304

Design Capacity: 1.08 m3 (38 ft3)

Operating Capacity: 0.71 m3 (25 ft3)

manufactured to a Nara style Similar to a 5RW, this dryer/cooler contains twin paddles to process the material inside the trough The total heating surface is 188.7 Sq.Ft. The paddle heating surface area is 136.7 Sq.ft. and the jacket heating surface area is 52 sq. ft. This dryer is manufactured for a continuous operation, and has been constructed to ASME code, The two agitators are 15” diameter x 10’ long The trough internally measures 131”long x 39” wide The processor has a dome top vapor hood cover, and the unit is belt driven by a 10 HP AC motor, 3 phase, 60 Hz, 230/460 volt

Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 204.4 °C (400 °F). Operational mode: Continuous. Heating Transfer Surface Area: 17.6 m² (189 ft²). Ribbon Type: Paddles.
