Type: Mill
Subtype: Colloid
Manufacturer: Alpine (Hosokawa)
Model: W
Condition: Used
Material: Stainless Steel 304
Drive Power: 0.25 kW (0.33 HP)
Drive RPM: 14,000

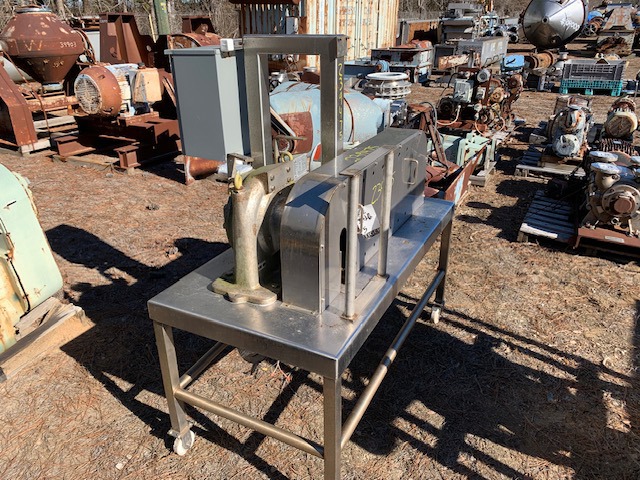

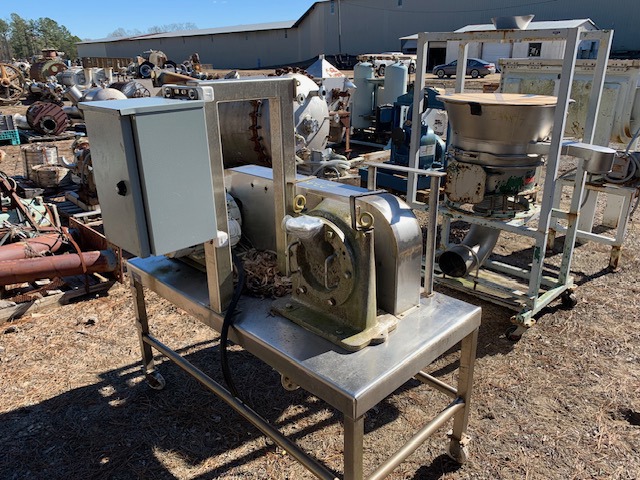

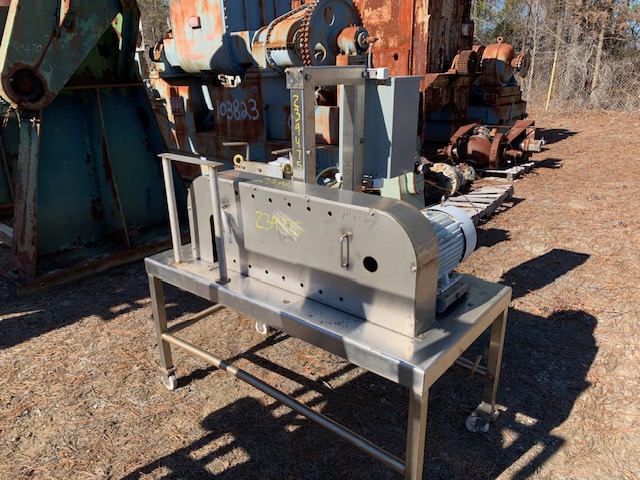

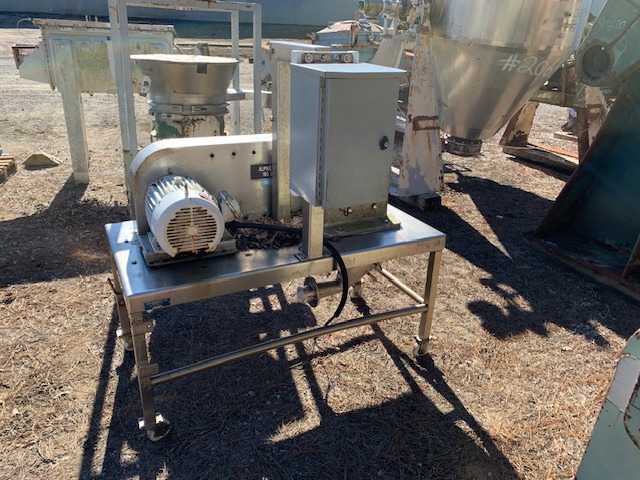

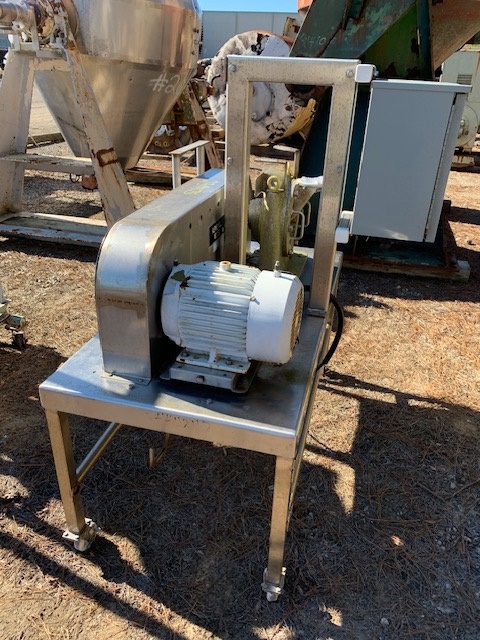

Mikro Bantam hammer and screen mill.
Six forged stirrup style hammers.
Lab size with a Reliance AC motor rated for 1725 rpm driven through a Dodge Gearmaster XL speed increaser.
Portable, cart mounted on dollies for easy movement.

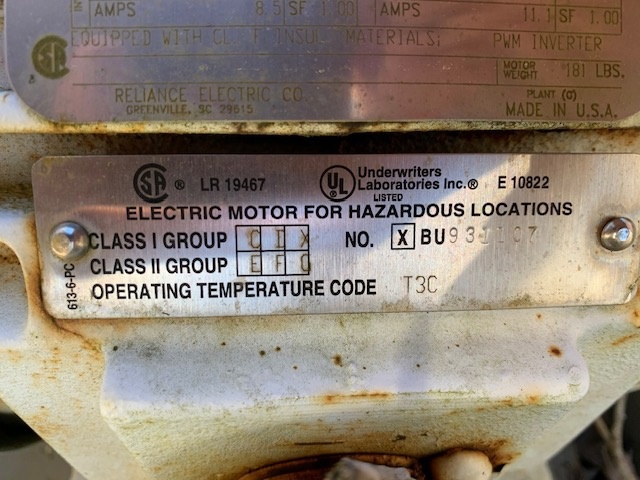

On board control panel with explosion proof motors and controls.
Powered By: Electric.
Type: Mill
Subtype: Colloid
Manufacturer: Alpine (Hosokawa)
Model: 1 SH
Condition: Used
Material: Stainless Steel 304
Diameter: 88.9 mm (3.5 in)
Drive Power: 5.6 kW (7.5 HP)
Mikro Pulverizer hammer mill Reliance duty master AC motor rated for 3520 rpm, drives the mill with 6 sets of swing hammers, of the forged stirrup type Chamber has a removable cover for cleaning and maintenance. Chamber is fed with a screw type feeder, powered by a Reliance Duty Master ac motor rated for 0.25 hp at 1725 rpm through a Dodge reducer. With explosion proof motors and controls
Drive RPM: 9,600. Powered By: Electric.
Type: Mill
Subtype: Colloid
Manufacturer: Peters & Smith
Condition: Used
Material: Stainless Steel 304
Capacity (Design): 1.14 m3 (40.1 ft3)
Diameter: 1,067 mm (42 in)
attritor Open top with welded cone bottom Charge is 5/16" chrome plated steel (52100) shot Operating liquid level is 185 gallons Agitation is by a two speed Reliance 25/8.3 hp, 1800/600 rpm AC motor through a Sym-Cyclo gearbox With front side door for media change Motor & drive on trolley for shaft & media changing Insulated
Drive RPM: 51. Powered By: Electric.
Type: Mill
Subtype: Colloid
Manufacturer: Peters & Smith
Condition: Used
Material: Stainless Steel 304
Capacity (Design): 1.14 m3 (40.1 ft3)
Diameter: 1,067 mm (42 in)
attritor
Open top with welded cone bottom.
Charge is 5/16" chrome plated steel (52100) shot.
Operating liquid level is 185 gallons.
Agitation is by a two speed Reliance 25/8.3 hp, 1800/600 rpm,
AC motor through a Sym-Cyclo gearbox.
With front side door for media change
Motor & drive on trolley for shaft & media changing.
Insulated.
Drive RPM: 51. Powered By: Electric.
