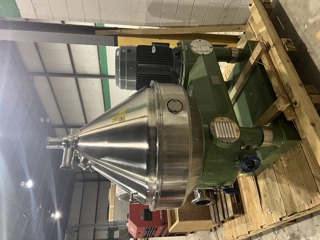

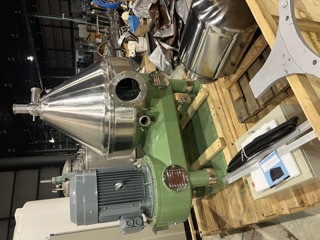

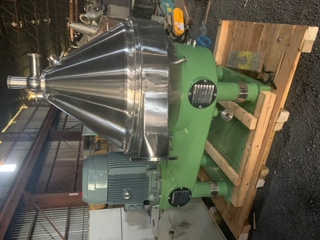

Overview

Type:

Centrifuge-Disc Bowl

Manufacturer:

GEA

Model:

GSE 200-06-777

Condition:

Used

Material:

Stainless Steel 304

Capacity

Motor Horsepower:

75 kW (100.6 HP)

Other Specifications

Bowl Diameter:

1,700 mm (66.9 in)

Inlet Diameter:

76.2 mm (3 in)

Clean In Place:

Yes

Controls:

Yes

RPM Maximum:

4,800

Product Flow Rate:

1.2 m3/h (5.3 GPM)

Sanitary Construction:

Yes

Additional Info:

continuous disc bowl centrifuge Rated 1 bar @ 50 deg C Sanitary construction for food processing Max feed temp 95 deg C Solids density: 1.42 kg/dm3, Heavy liquid density: 1.20 kg/dm3.Max feed temp 95 deg C. Motor also runs at 3/50/380 at 1486 RPM with oil reservoir. With local controls CIP valves and spray ball Solids pump and tank

Stainless Steel 316 GEA CSC 6-06-476 Centrifuge-Disc Bowl

Type: Centrifuge-Disc Bowl

Manufacturer: GEA

Model: CSC 6-06-476

Condition: Used

Material: Stainless Steel 316

Motor Horsepower: 5.6 kW (7.5 HP)

Bowl Volume: 52 L (13.7 gallons)

Pharma grade, GMP sanitary construction. Steam sterilized self cleaning disc stack centrifuge.
100-200 l/hr. through put. Tools are available. max flow -/0.15 m3/H. minimum/maximum temperature 15/40 degrees C.
Drive motor by Loher, type ANGA 13253-04C, serial 2231330 60 Hz 1740 RPM.

Controls: Yes. RPM Maximum: 11,970.
