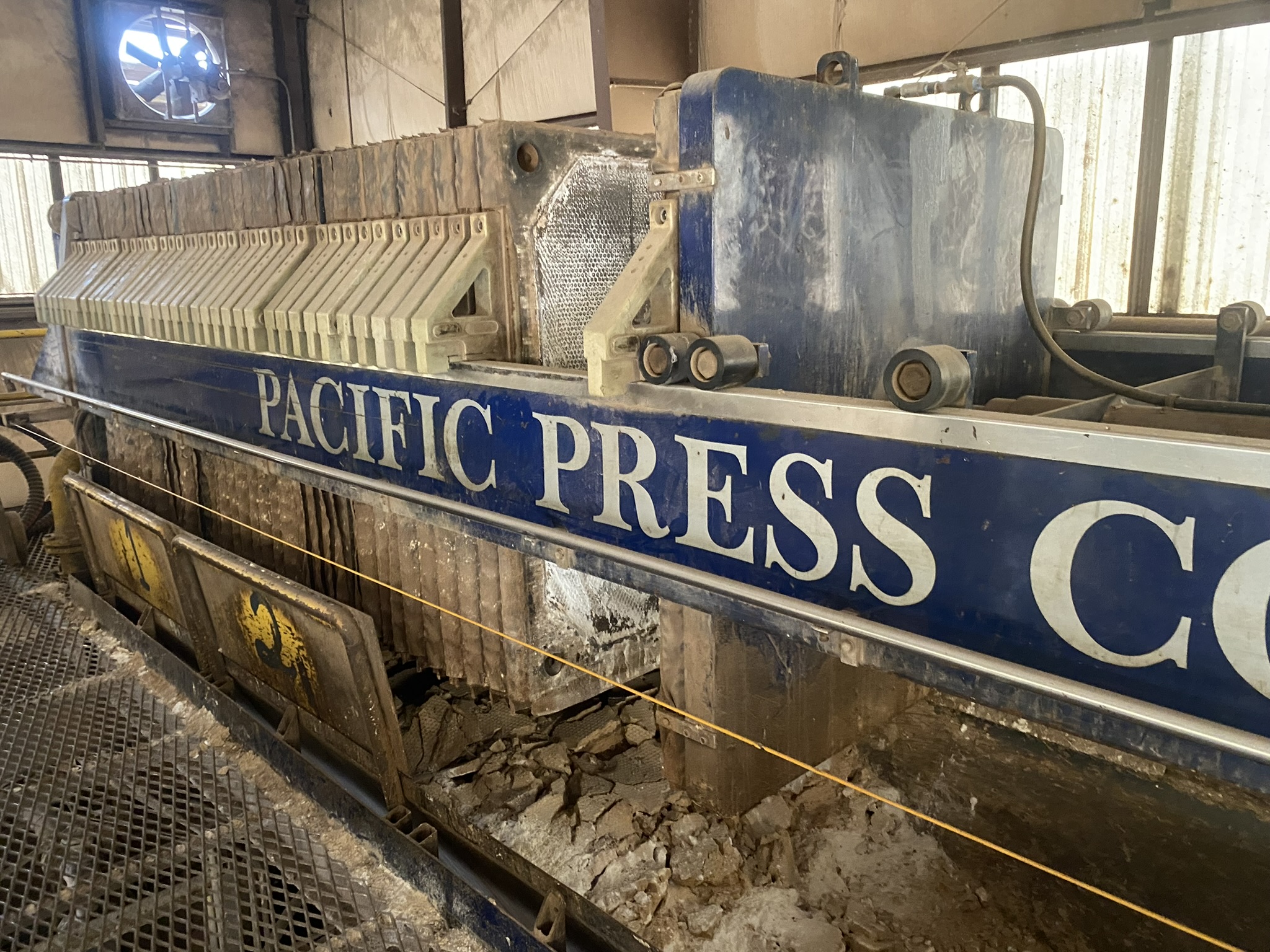

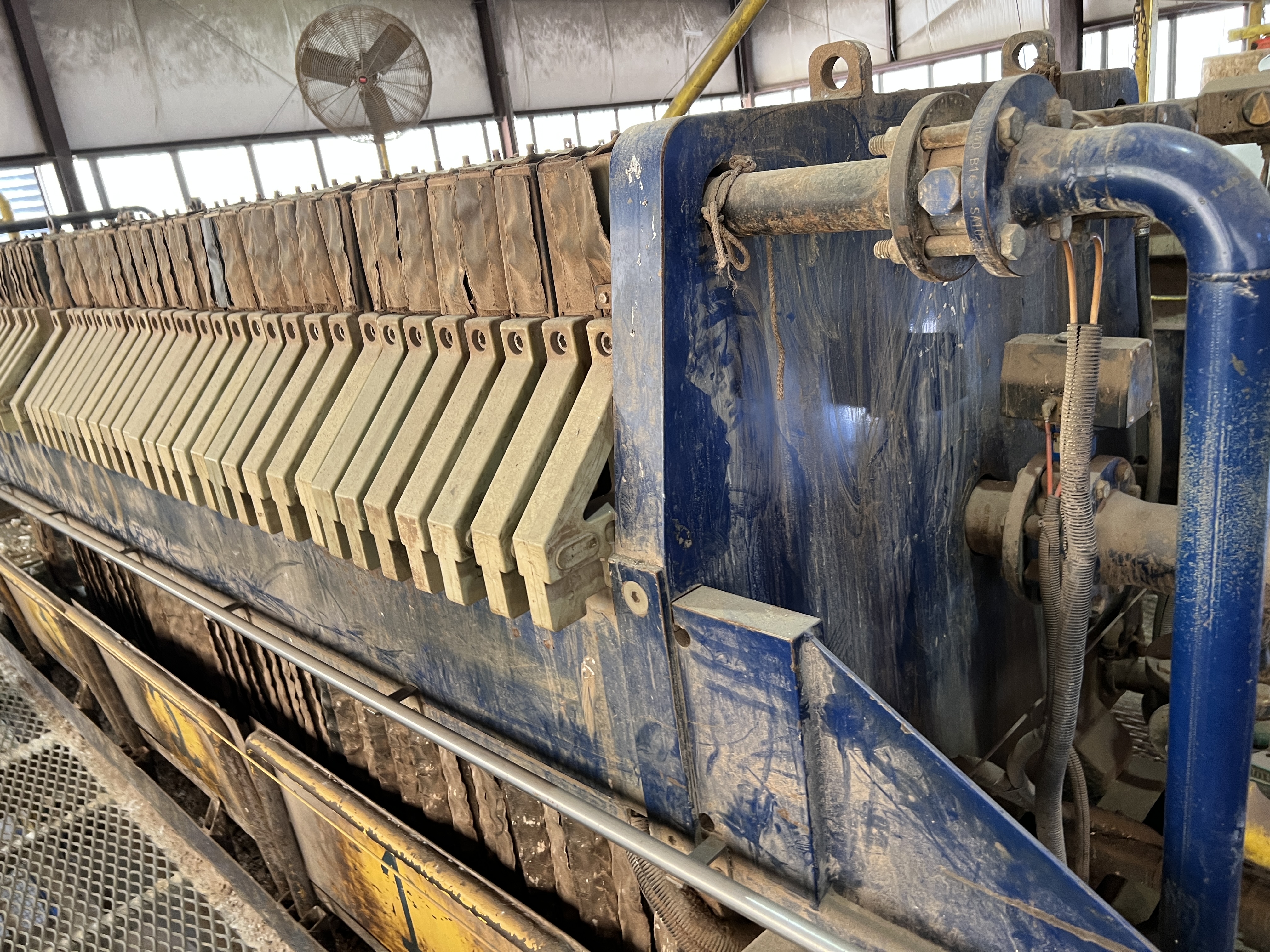

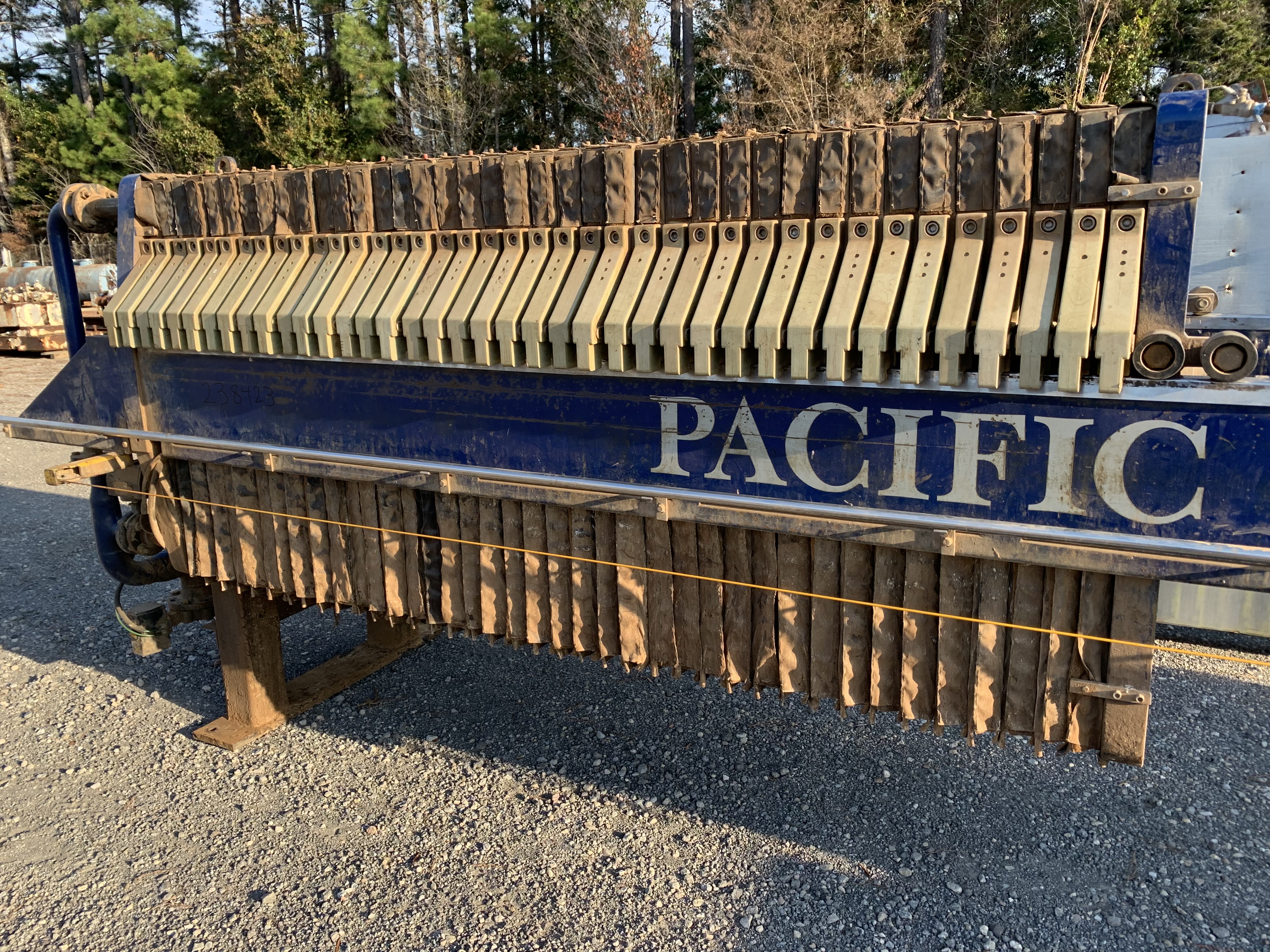

Filter Press, 958 Sq.Ft. Filtration Area, Polypropylene Plates, Manufactured by Pacific Press Co. - IPP# 238423

Name: Filter Press, 958 Sq.Ft. Filtration Area, Polypropylene Plates, Manufactured by Pacific Press Co.
Brand: Pacific Press Co
SKU: 238423

Overview

Type:

Filter

Subtype:

Press

Manufacturer:

Pacific Press Co

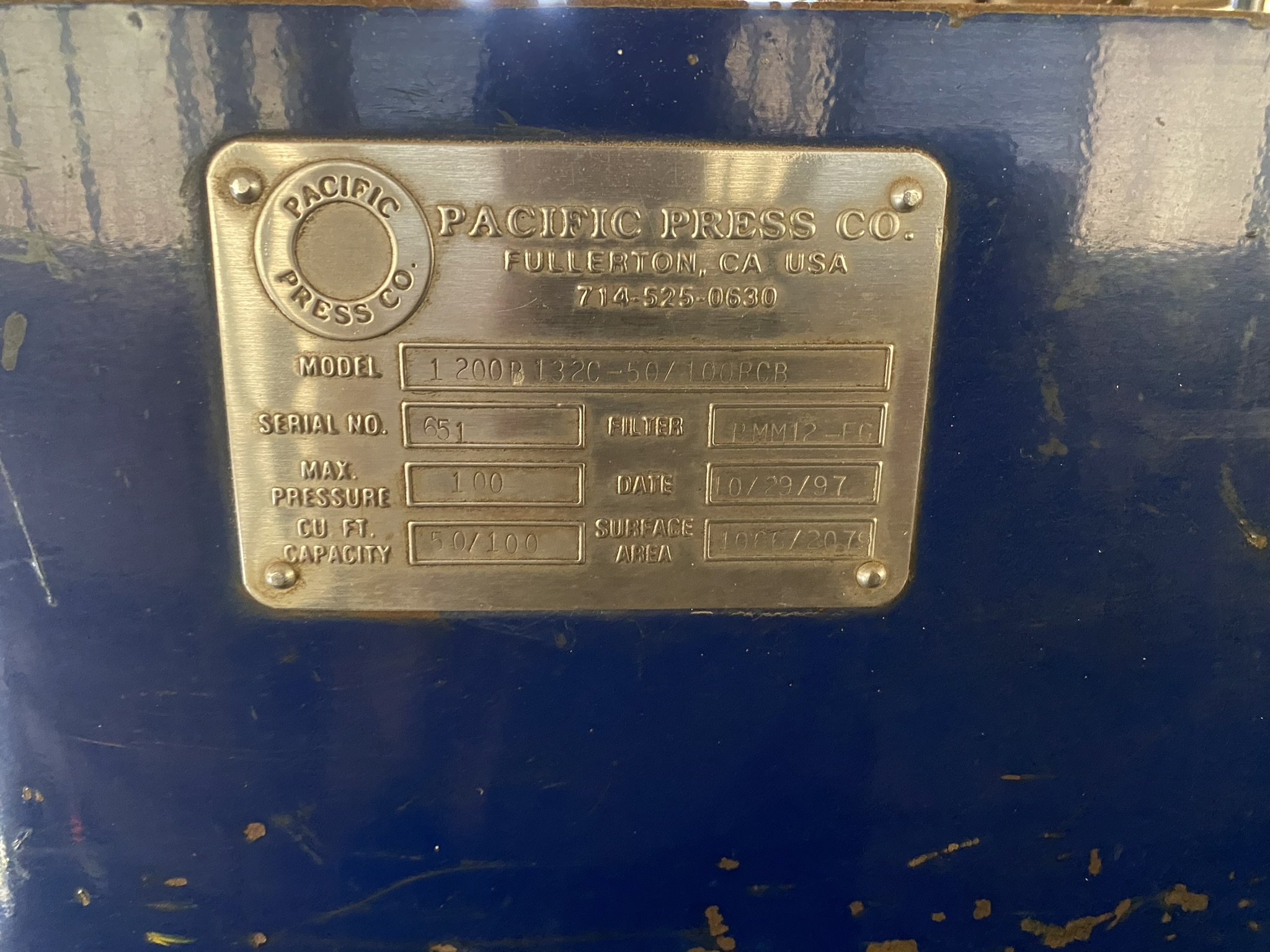

Model:

1200B132C-50/100BCB

Condition:

Used

Material:

Carbon Steel

Capacity

Filtration Area:

89 m² (958 ft²)

Cake Volume:

1.26 m3 (44.4 ft3)

Other Specifications

Pressure:

6.9 bar (100 psi)

Feed Type:

Center feed

Support Type:

Legs

Plates

Number of Plates:

Plate MOC:

Polypropylene

Plate Diameter or Width:

1,200 mm (47.2 in)

Plate Height:

1,200 mm (47.2 in)

Plate Thickness:

50.8 mm (2 in)

Plate Shifter Automatic:

Yes

Plates Recessed:

Yes

Plates Shifted By:

Automatic

Additional Info:

Side bar design with semi automatic plate shifter.
Four eye discharge washing plates with ¼” recess.
Press can be upgraded to 100 cu ft cake capacity and 2079 sq. ft. filtration area with additional plates.

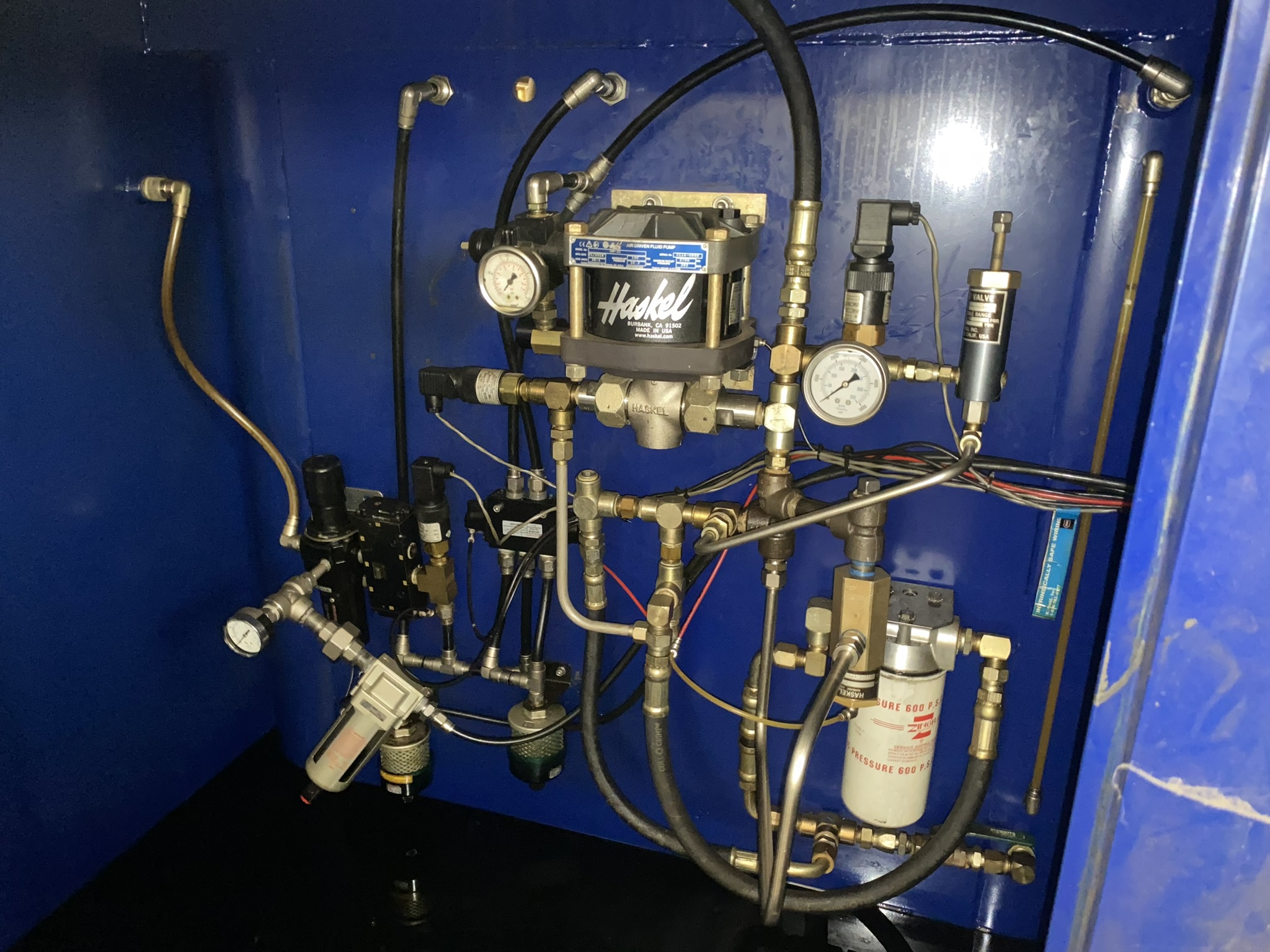

Single hydraulic piston press.

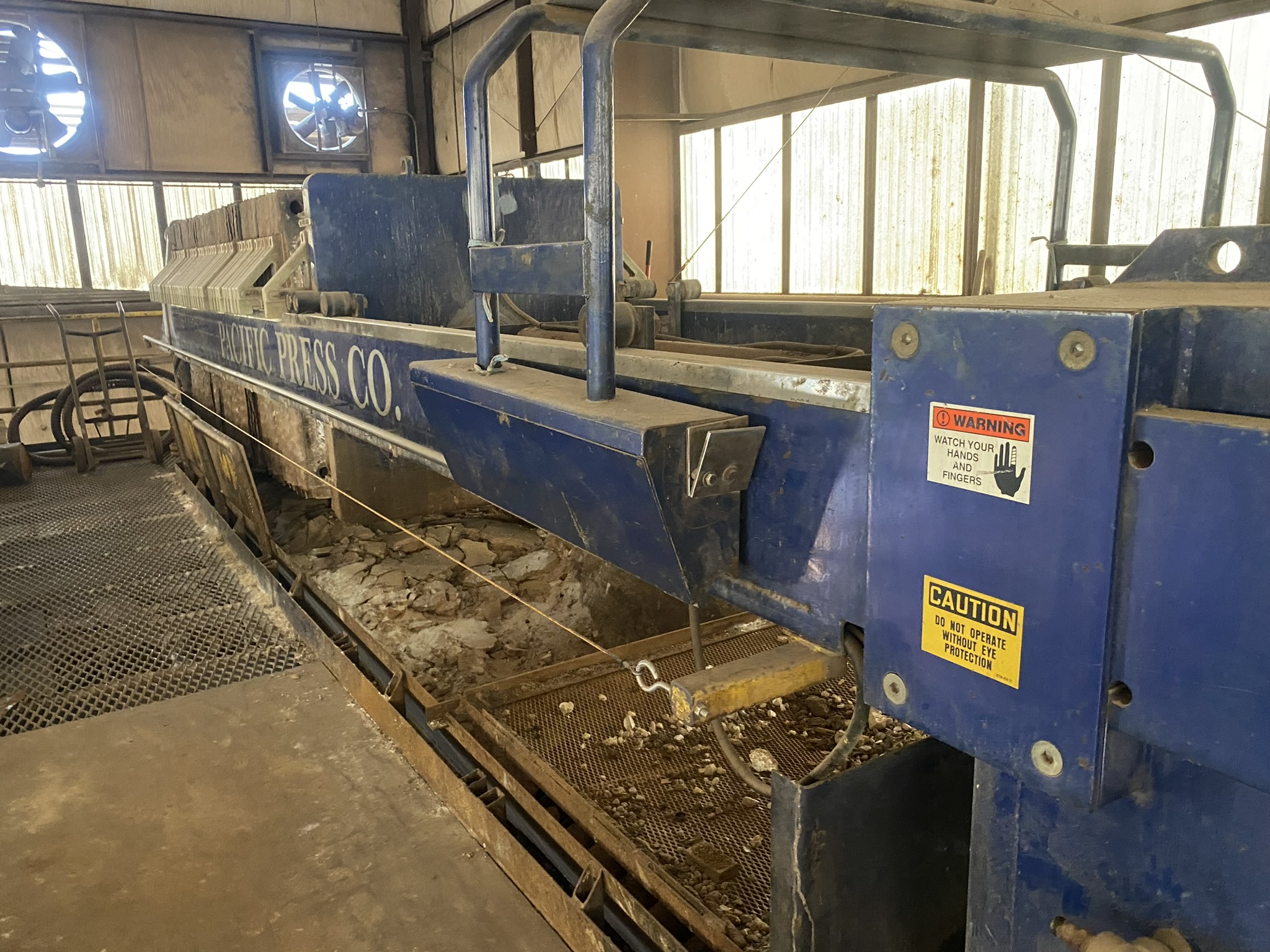

Bottom mounted chain driven screw conveyor for cake discharge with safety trip wire.
