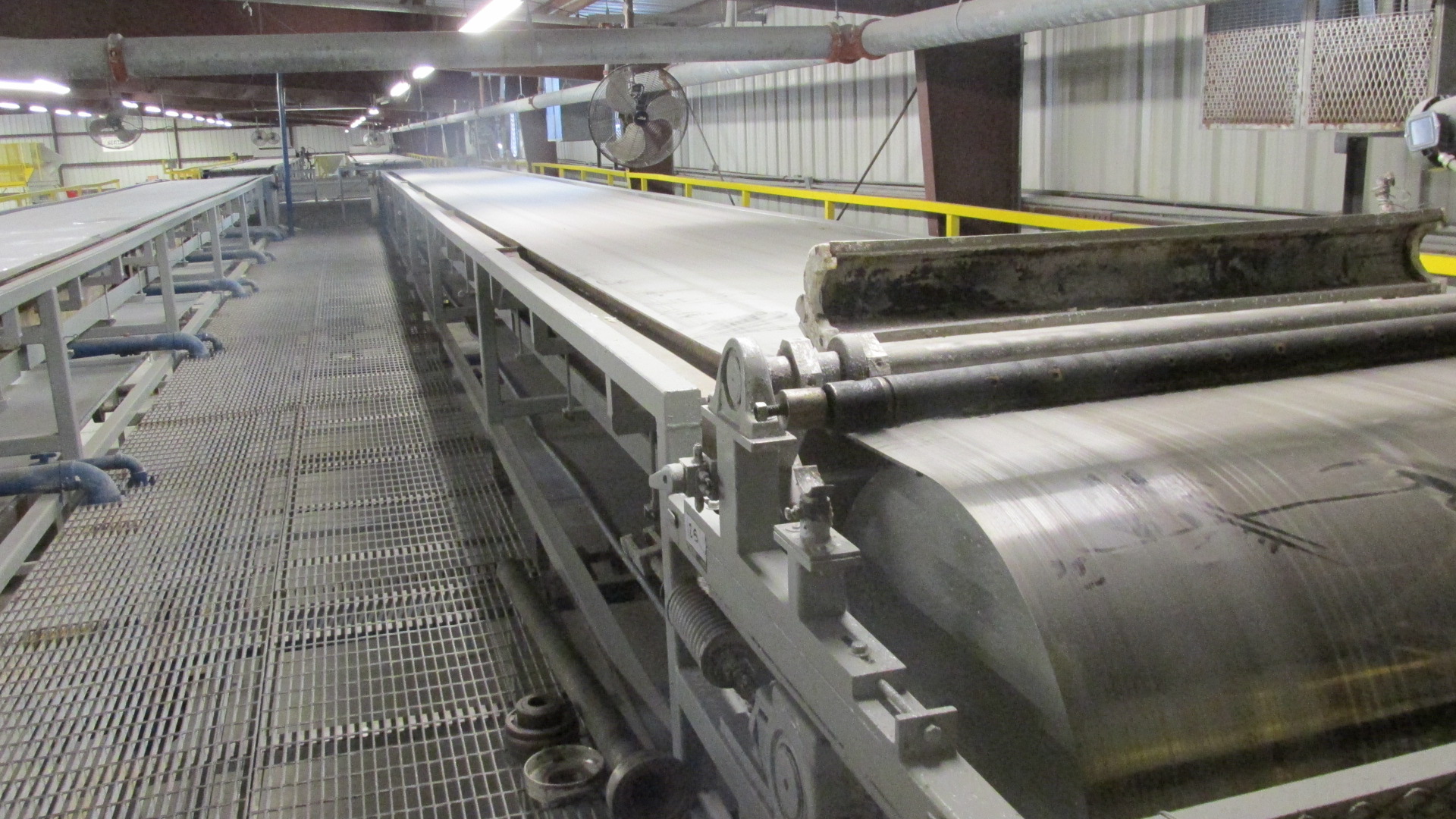

belt flaker, with Accu-Drop Pastillator and Variable Speed Drive Belt system is 60" wide x 75 feet long. With six (138" x 59" x 5'5") water collectors 190 Gallon rated for 55 degrees F Six water spray systems, 116" x 2" OD. Hot melt is feed through a rotoform with steam to keep wax in a liquid state. Shell side(product side) rated for 400 degrees F, tube side, (steam) rated for 300-350 degrees F. Rotoform is 59" long x 3.25" diameter Main Belt is driven by a Euro drive variable-speed with a helical reducer 3 HP gear ratio 34.26:1 Overall belt speed is from 25 FPM up to 125 FPM. (This can also be adjusted with different sprockets.) Overall shipping dimensions are 75" wide x 66" tall (to top of mounted pastillator) x 75' long. Belt thickness is 0.040", belt height is 48".
Type: Dryer-Flaker Drum and Belt
Manufacturer: Berndorf belt systems
Model: 924MDT
Condition: Used
Material: Stainless Steel Other
Flaker Width: 1,524 mm (60 in)
For Belt: Length of Flaker: 20,117 mm (792 in)

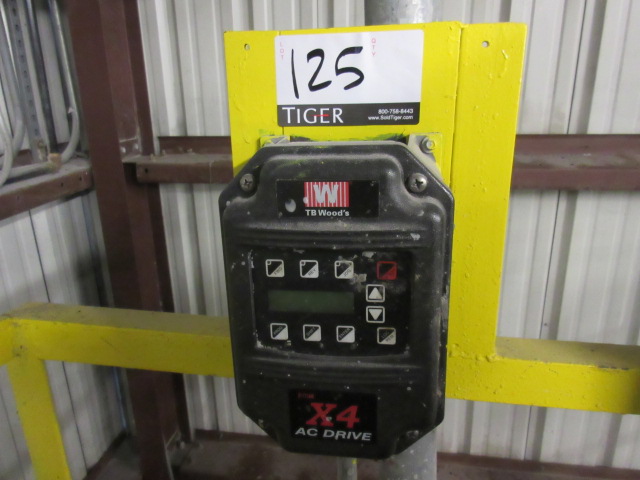

belt flaker, with Accu-Drop Pastillator and Variable Speed Drive Belt system is 60" wide x 75 feet long. With six (138" x 59" x 5'5") water collectors 190 Gallons rated for 55 degrees F. Six water spray systems, 116" x 2" OD. Hot melt is feed through a rotoform, with steam to keep hot melt in a liquid state. Shell side (Product side) rated for 400 degrees F, tube side, (steam) rated for 300-350 degrees F. Rotoform is 59" long x 3.25" diameter Main Belt is driven by a Euro drive variable-speed, with a helical reducer 3 HP gear ratio 34.26:1 Overall belt speed is from 25 FPM up to 125 FPM. (This can also be adjusted with different sprockets.) 1750 rpm. 2.77 HP, service factor 1 with output torque 892. The rated temperature range is 51-110 degrees F. Driven by a 1 hp AC motor, continuous duty TEFC. Model # DF26DT1001.54, serial # 88075 1570.07.
Area of Flaker: 30.7 m² (330 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single. Flaker Feed Type: Heated Refeed Pastillator.
Type: Dryer-Flaker Drum and Belt
Manufacturer: Sandvik
Condition: Used
Material: Stainless Steel Other
Flaker Width: 1,500 mm (59.1 in)
For Belt: Length of Flaker: 24,850 mm (978.3 in)
1.5m wide x 24.85m long rotoform cooling conveyor/belt Drawing Number 6530. 5m long hot water section 17.5m cooling water section Cooling water capacity: 185 GPM @ 30 psi, Hot water zone has 16 sprays x 4 runs x 0.71 gpm (45.4 gpm), Cold water zone has 49 sprays x 4 runs x 0.71 gpm (139.1 gpm), 900mm diameter tension drum, 900mm diameter drive drum andvik Dropformer feed unit with hot oil heated weir, chain driven by 0.75 KW, 3/50/415 volt motor via varispeed gearbox. brass knife discharge, carbon steel support frame with sump tanks mounted under the belt, Flaker includes a discharge vibratory shaker for size classifacation, (3) Sihi Centrifugal cooling water pumps, Russel Finex inline water filter,
Area of Flaker: 37 m² (398.3 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single. Flaker Feed Type: Standard Drop Pastillator. Number of Cooling Zones for Belt: 4. Nozzles per Cooling Zone: 49. Scraper: Yes. Scraper Details: Discharge scraper - Brass MOC.
Type: Dryer-Flaker Drum and Belt
Manufacturer: Kaiser Steel Belt System
Condition: Used
Material: Stainless Steel Other
Flaker Width: 1,200 mm (47.2 in)
For Belt: Length of Flaker: 4,000 mm (157.5 in)
Pastillator with type: ZN stainless steel dosing system (tube needle system) can be heated, rated: 100 to 200 kg/hr, unit has an endless belt 1.2 meter wide, 1 mm thick x 11.14 meter total length 4 meter working area, with 1.4541 s/steel (321s/steel) spray nozzles for belt cooling Unit has a c/steel frame covered with aluminum.
Area of Flaker: 4.8 m² (51.7 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single.
Type: Dryer-Flaker Drum and Belt
Manufacturer: Kaiser Steel Belt System
Condition: Used
Material: Stainless Steel Other
Flaker Width: 1,200 mm (47.2 in)
For Belt: Length of Flaker: 4,000 mm (157.5 in)
ZN stainless steel dosing system (tube needle system) can be heated, rated 100 to 200 KG/Hr. Unit has an endless belt Unit has an endless belt, 1.2 meter wide, 1mm thick,x 11.14 meter total length, 4 Meter working area with 1.4541SS (321SS) spray nozzles for belt cooling Unit has a CS frame covered with aluminum.
Area of Flaker: 4.8 m² (51.7 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single.
