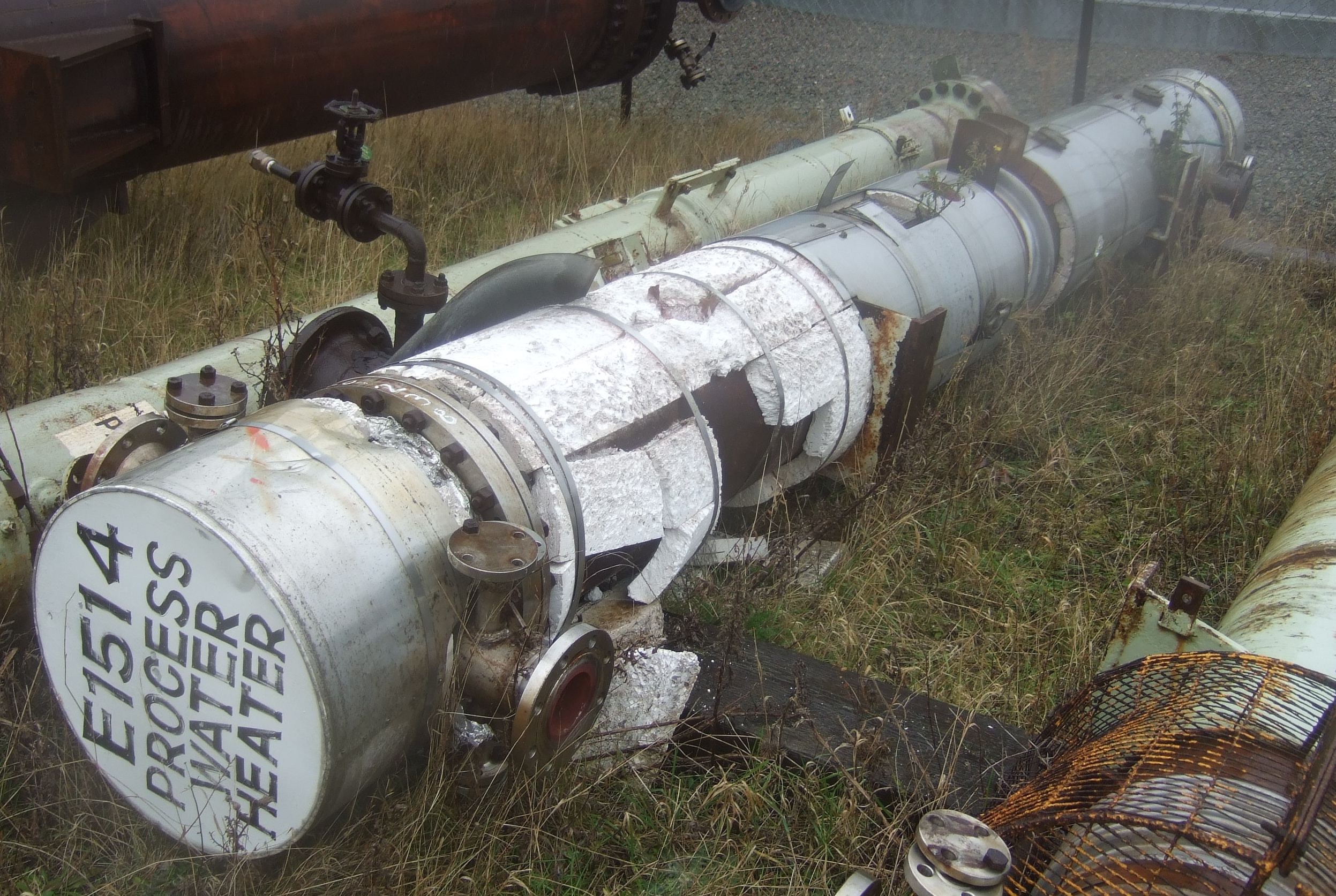

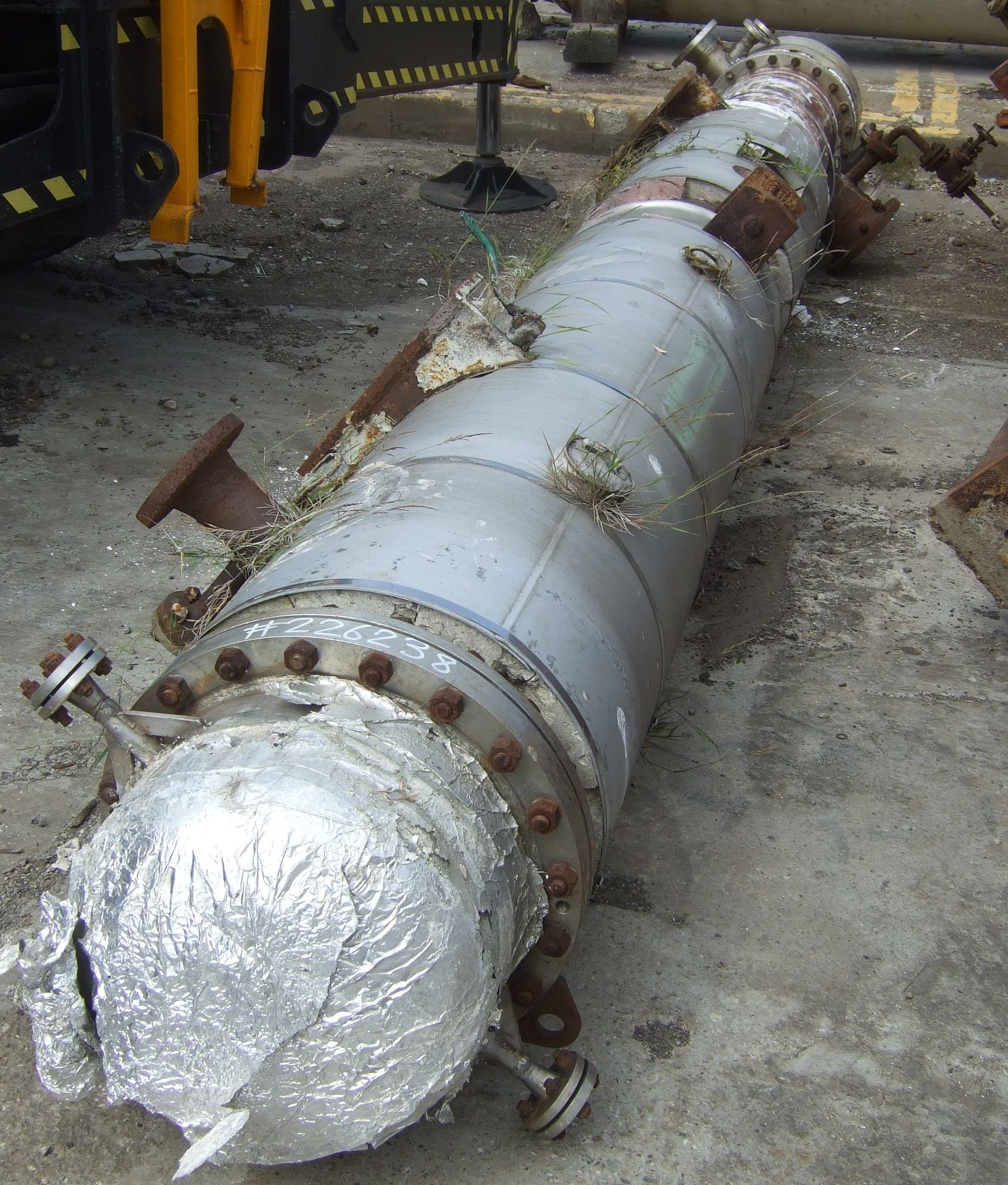

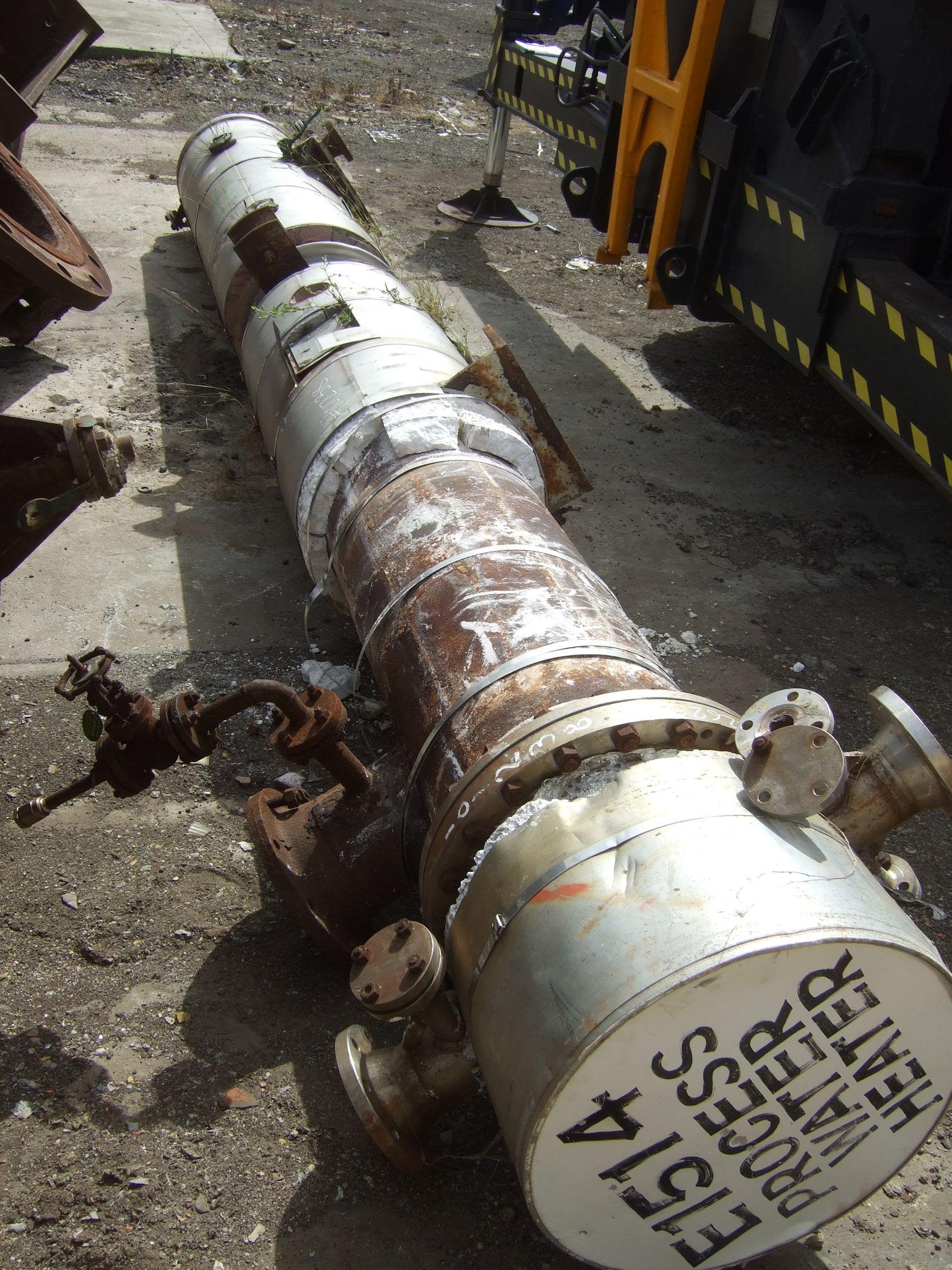

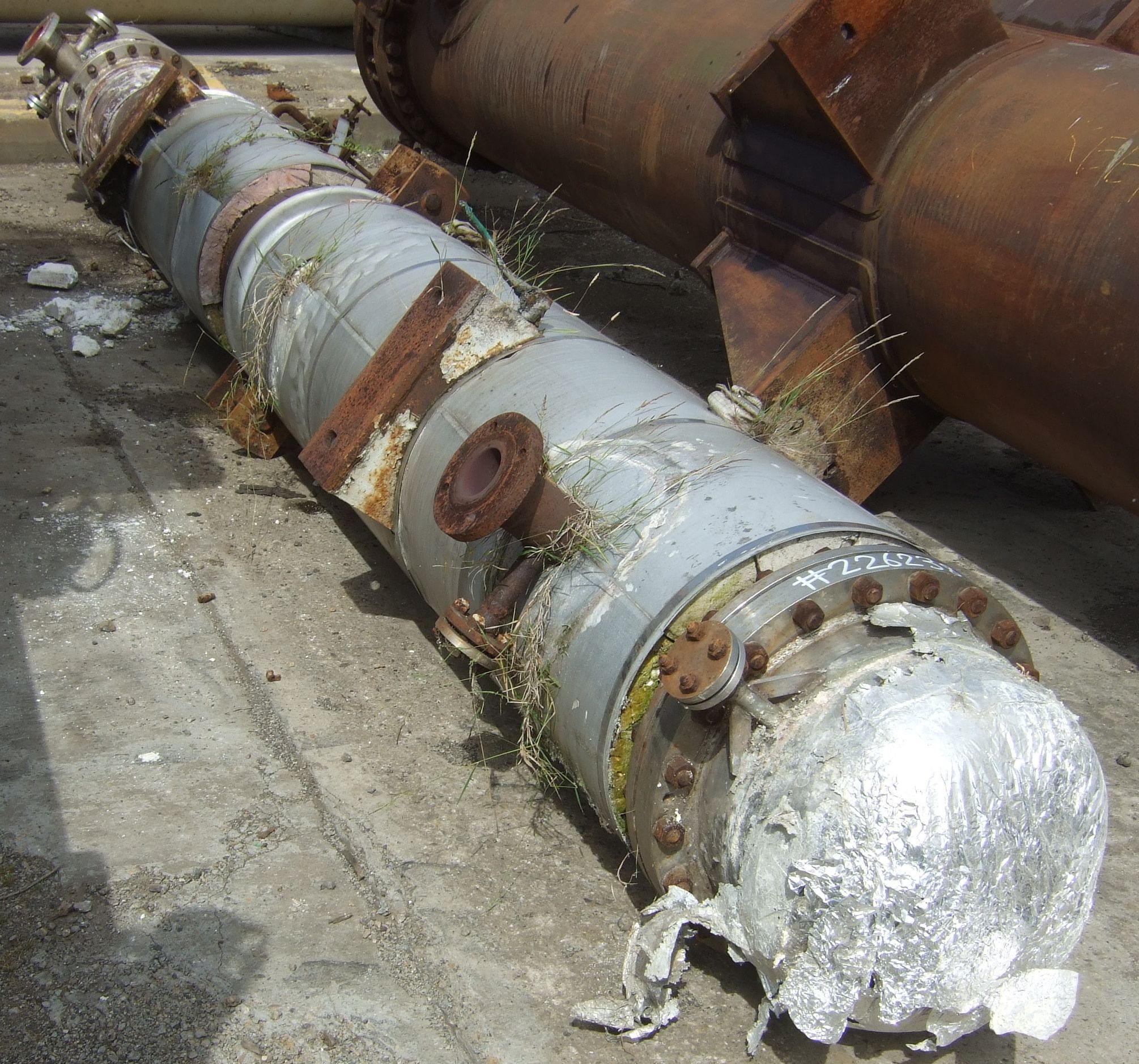

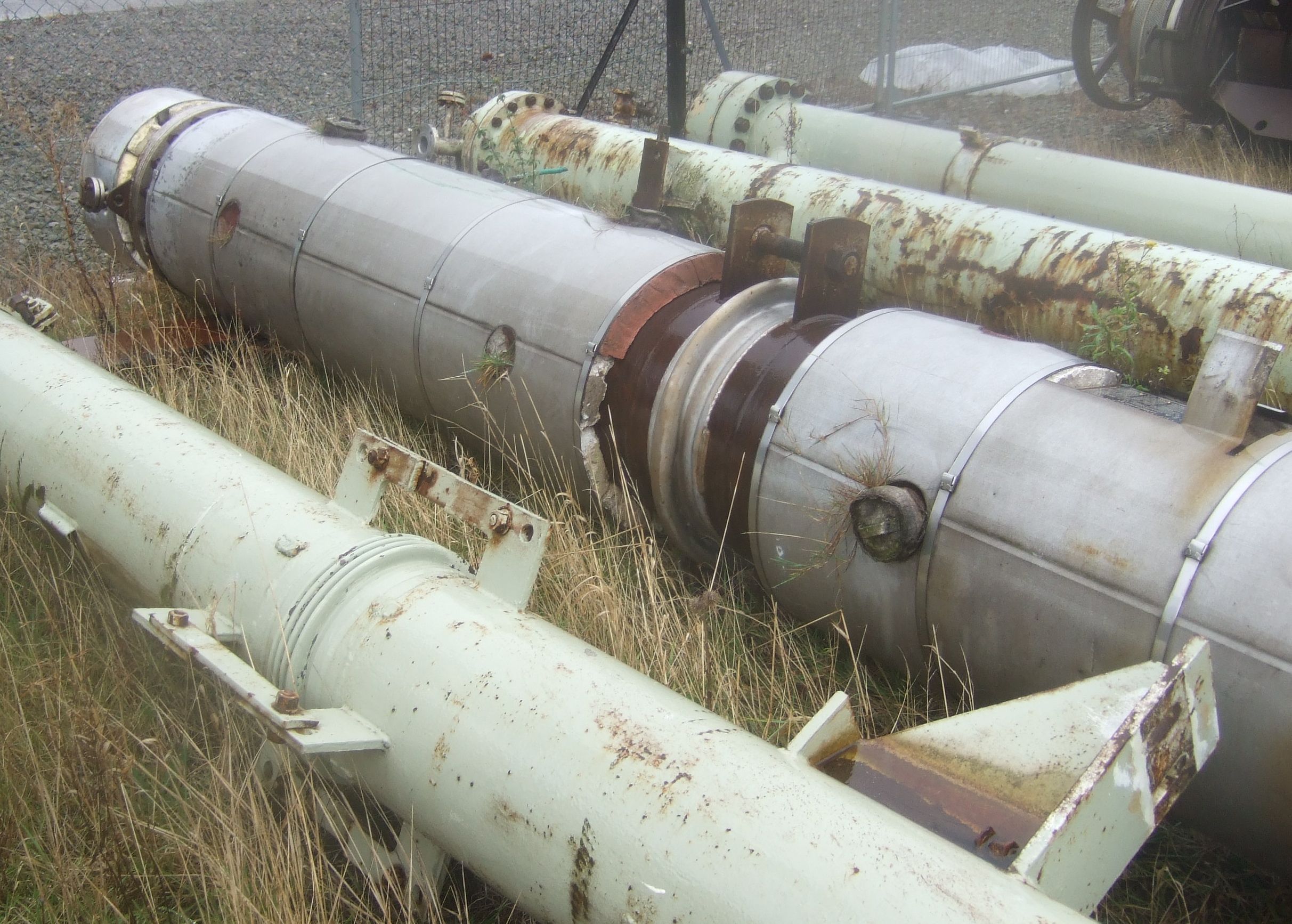

Stainless Steel 304 GEA Airexchangers Ltd BEM Shell and Tube Heat Exchanger - IPP# 226238

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Hunt Tool Co

Model: BEM

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 10.1 m² (109 ft²)

Orientation: Horizontal

1.250" TRI pitch. with (19) baffles on 12" spacing

Shell Pressure: 5.9 bar (85 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 304. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Carbon Steel. Length: 6,706 mm (264 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Number: 20. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings include: Shell (2) 4"; Heads - (2) 2"..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Mechanica Sarda

Model: BEM

Condition: Used

Material: Stainless Steel 304

Clad: Yes

Heat Transfer Surface Area: 96 m² (1,033 ft²)

Orientation: Vertical

• pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter;
  shell rated 12 bar @ 130 degrees C, 895 liter.
• 304LSS clad Tube sheets
• Baffles: 7 304SS baffles in the shell
• (2) bolted heads; (1) 304L stainless steel dished top head, (1) 304L stainless steel bottom cone head.
• Weight: Empty weight of 5000 kg.
• shell is 850 mm diameter x 2425 flange to flange, 4146 mm overall length.

Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 304. Length: 2,425 mm (95.5 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,425 mm (95.5 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 4"; Bottom Head (1) 4" Center (1) 6" on cone; Shell (2) 10". .

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: CO. A.S.T

Model: BEM

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 253.8 m² (2,732 ft²)

Orientation: Vertical

(re-boiler) carbon steel (Fe-510-2kw) shell, shell 12mm thick expansion bellow, (1) 316L stainless steel coned head, 9mm thick, (1) 316L stainless steel dished welded on head

Shell Pressure: 0.83 bar (12 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 0.55 bar (8 psi). Tube Temperature: 104.4 °C (220 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 1,244 mm (49 in). Head Material: Stainless Steel 316. Length: 7,000 mm (275.6 in). Tube Number: 343. Tube Diameter: 48.3 mm (1.9 in). Tube Length: 4,878 mm (192 in). Tube Thickness: 3.6 mm (0.14 in). Nozzle Schedule: openings tube side: (1) head with 1-740mm, (1) head with 1-500mm, 1-300mm, shell: 1-150mm, 1-100mm, 1-32mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Mechanica Sarda

Model: BEM

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Heat Transfer Surface Area: 98.5 m² (1,060 ft²)

Shell Pressure: 12 bar (174 psi)

pressure tube side 18 bar/full vacuum @ 130 degrees C (945 liter), shell 12 bar @ 130 degrees C (895 liter). 316L stainless steel clad tube sheets (7) 304 stainless steel internal baffles in the shell,Single pass on both sides, (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head, 4145mm overall length.

Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head 1-6", Bottom Head 1-6" (center), 1-6" on side of cone, Shell 2-10",.
