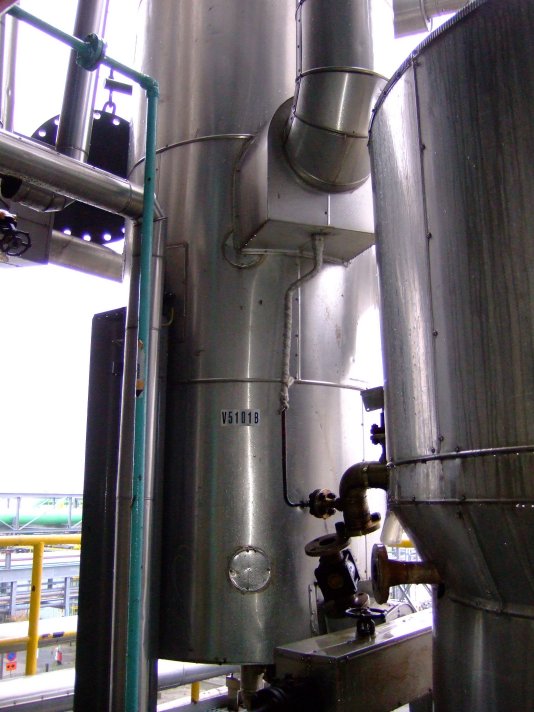

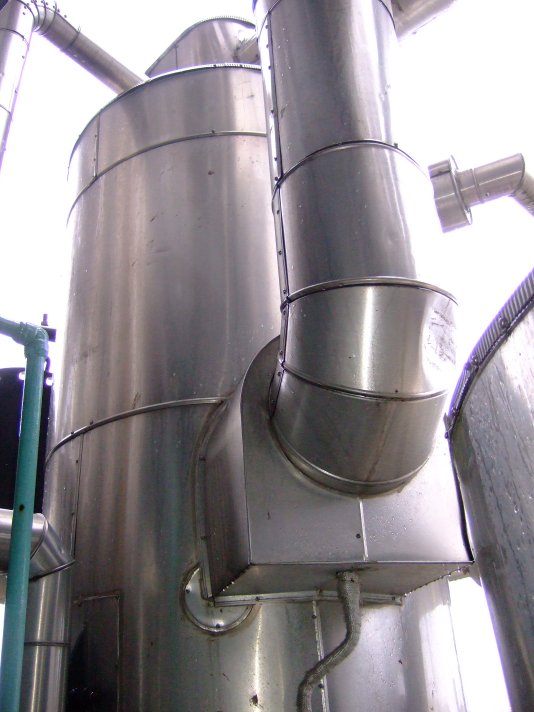

Stainless Steel 304 FIB Apparatenbouw BV Tank - IPP# 221595

Type: Tank

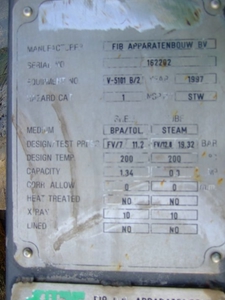

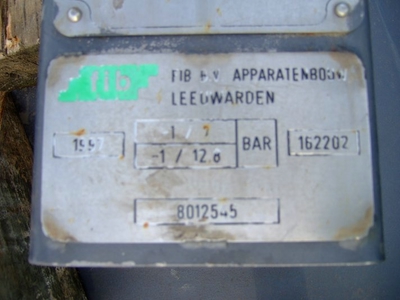

Manufacturer: FIB Apparatenbouw BV

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 1,340 L (354 gallons)

Orientation: Vertical

• With 300 liter jacket.

Diameter: 834 mm (32.8 in). Straight-side Length: 2,400 mm (94.5 in). Internal Pressure: 7 bar (101.5 psi). Internal Temperature: 200 °C (392 °F). Jacket Material: Stainless Steel 304. Jacket Pressure: 12.8 bar (185.6 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes.

Type: Tank

Manufacturer: Continental

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 4,921 L (1,300 gallons)

Orientation: Vertical

Diameter: 1,829 mm (72 in). Straight-side Length: 1,321 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

Type: Tank

Manufacturer: Continental

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 4,921 L (1,300 gallons)

Orientation: Vertical

• National Board number is not available
• Twi side mounted man ways

Diameter: 1,829 mm (72 in). Straight-side Length: 1,321 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

Type: Tank

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 115 L (30.4 gallons)

Orientation: Vertical

• Portable vertical tank
• Discharge mechanism: Motorized screw conveyor
• Bolted flat top, coned flat bottom

Diameter: 860 mm (33.9 in). Straight-side Length: 420 mm (16.5 in). Does it have Agitation ?: Yes.
