Glasslined Tank - IPP# 213214

Type: Tank

Manufacturer: DeDietrich

Model: HT 1500

Condition: Used

Material: Glasslined

Capacity (Design): 5,700 L (1,500 gallons)

Orientation: Horizontal

Diameter: 1,800 mm (70 in). Straight-side Length: 2,000 mm (78 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Capacity (Design): 3,800 L (1,000 gallons)

Orientation: Vertical

• Head thickness: 0.469"

Internal Pressure: 4.5 bar (65 psi). Internal Temperature: 204.4 °C (400 °F).

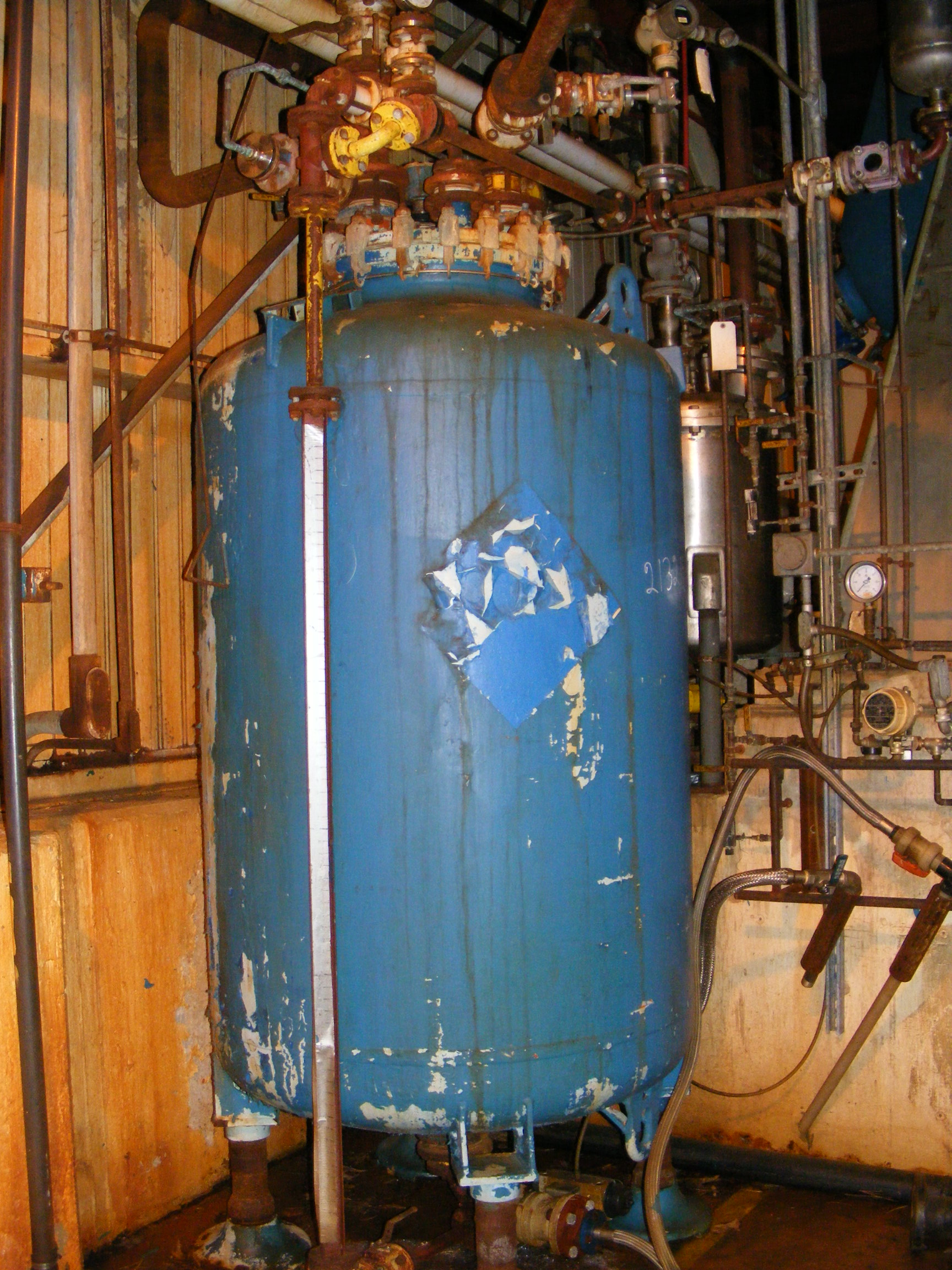

Type: Tank

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Orientation: Vertical

Diameter: 1,200 mm (48 in). Straight-side Length: 1,500 mm (60 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 148.9 °C (300 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Orientation: Vertical

Diameter: 1,200 mm (48 in). Straight-side Length: 1,400 mm (56 in). Internal Pressure: 3.8 bar (55 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Legs.
