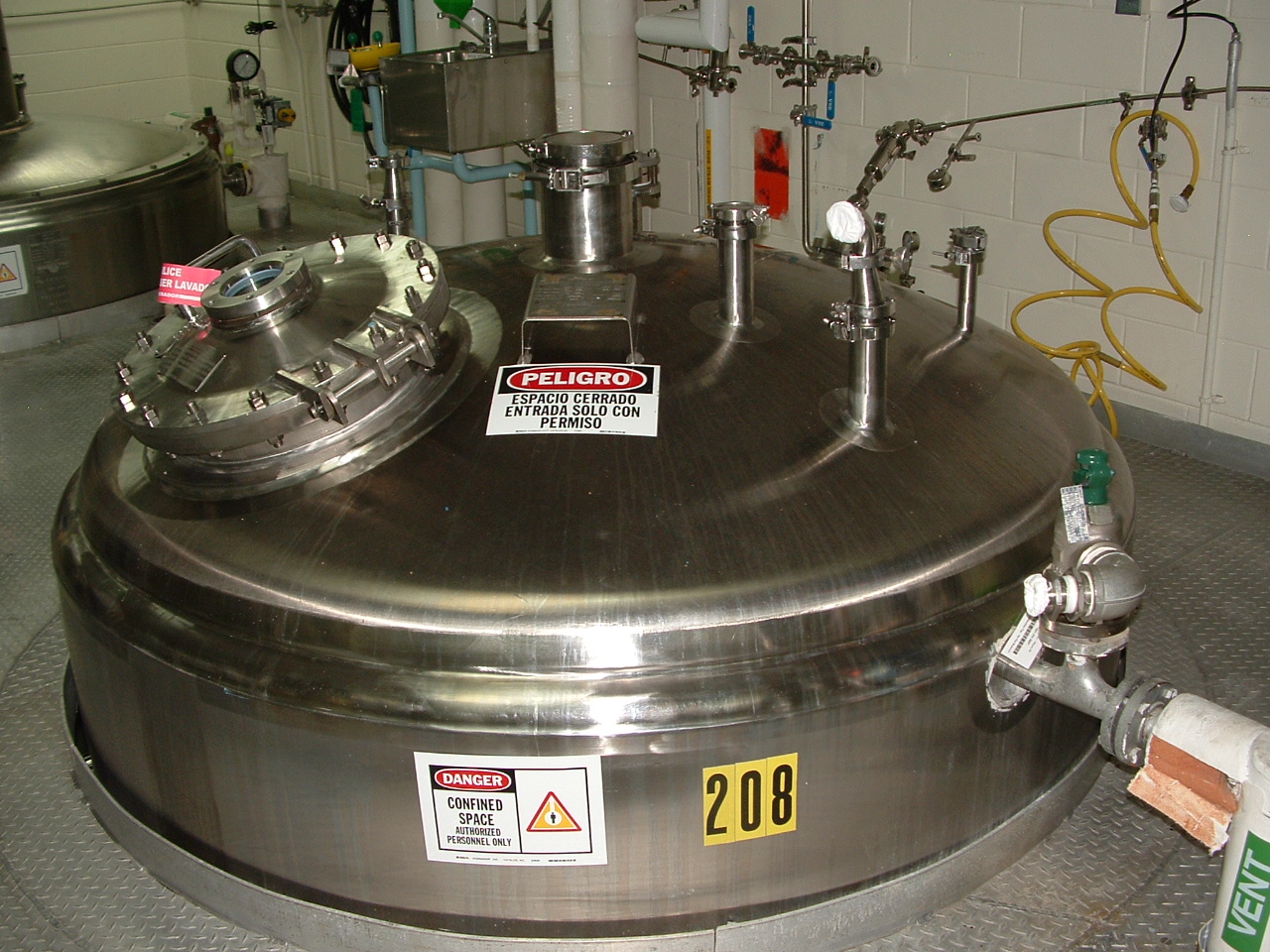

Reactor Body, Kettle Batch-Type Stainless Steel 316 - IPP# 210499

  • Reactor Body, Kettle Batch-Type Stainless Steel 316 - IPP# 210499 Reactor Body, Kettle Batch-Type Stainless Steel 316 - IPP# 210499
  • Reactor Body, Kettle Batch-Type Stainless Steel 316 - IPP# 210499 Reactor Body, Kettle Batch-Type Stainless Steel 316 - IPP# 210499
  • Reactor Body, Kettle Batch-Type Stainless Steel 316 - IPP# 210499 Reactor Body, Kettle Batch-Type Stainless Steel 316 - IPP# 210499
  • Reactor Body, Kettle Batch-Type Stainless Steel 316 - IPP# 210499
  • Reactor Body, Kettle Batch-Type Stainless Steel 316 - IPP# 210499
  • Reactor Body, Kettle Batch-Type Stainless Steel 316 - IPP# 210499
Overview
Reactor
Batch Type Body Only

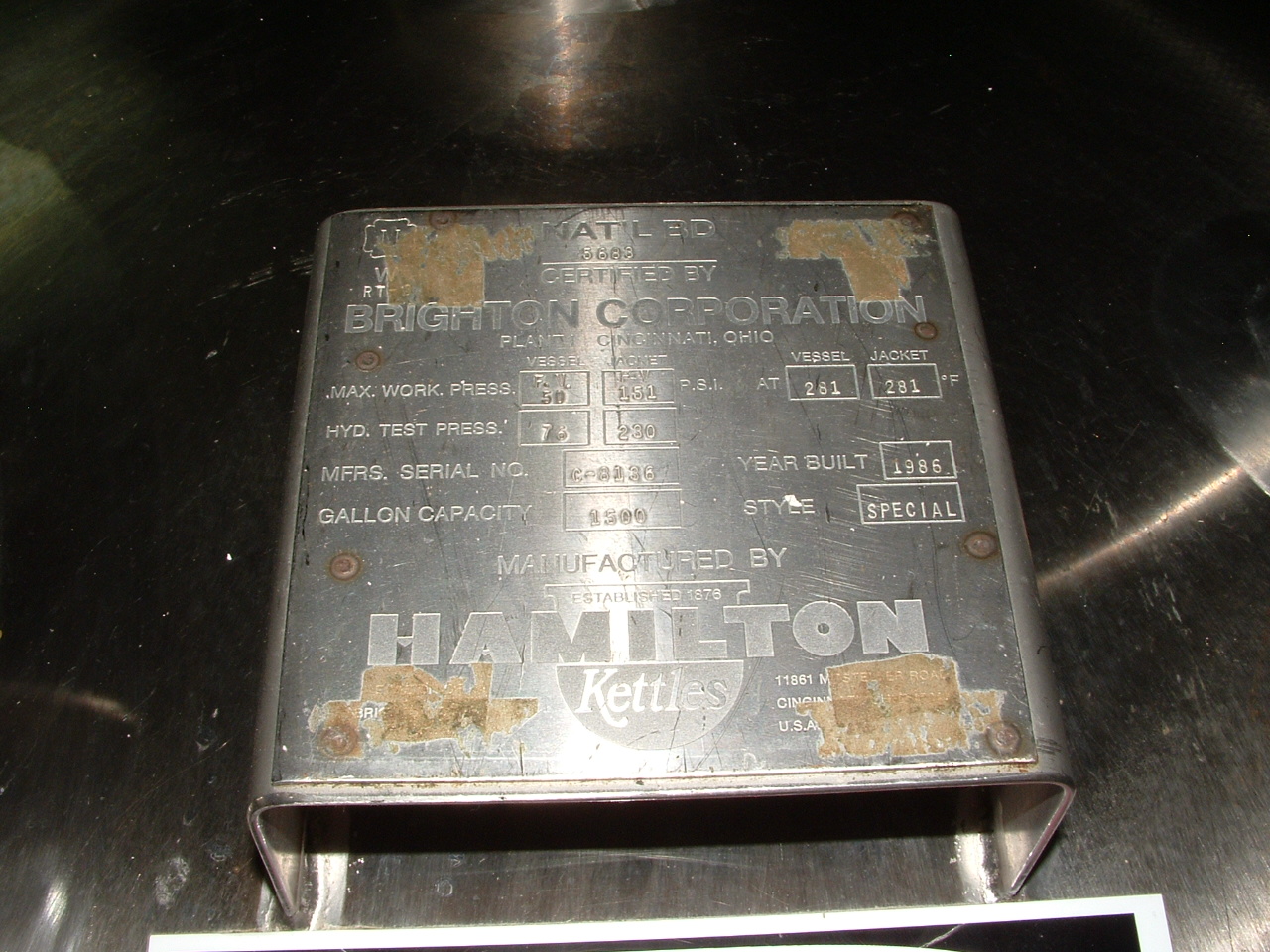

Brighton Manufacturing
Used
Stainless Steel 316
5,678 L (1,500 gallons)
Yes
Yes
Pressure Vessel
3.4 bar (50 psi)
Yes
138.3 °C (281 °F)
Jacket/Internal Coil
10.4 bar (151 psi)
138.3 °C (281 °F)
Stainless Steel 304
Dimensions
Vertical
1,930 mm (76 in)
1,702 mm (67 in)
Heads
Dish
Stainless Steel 316

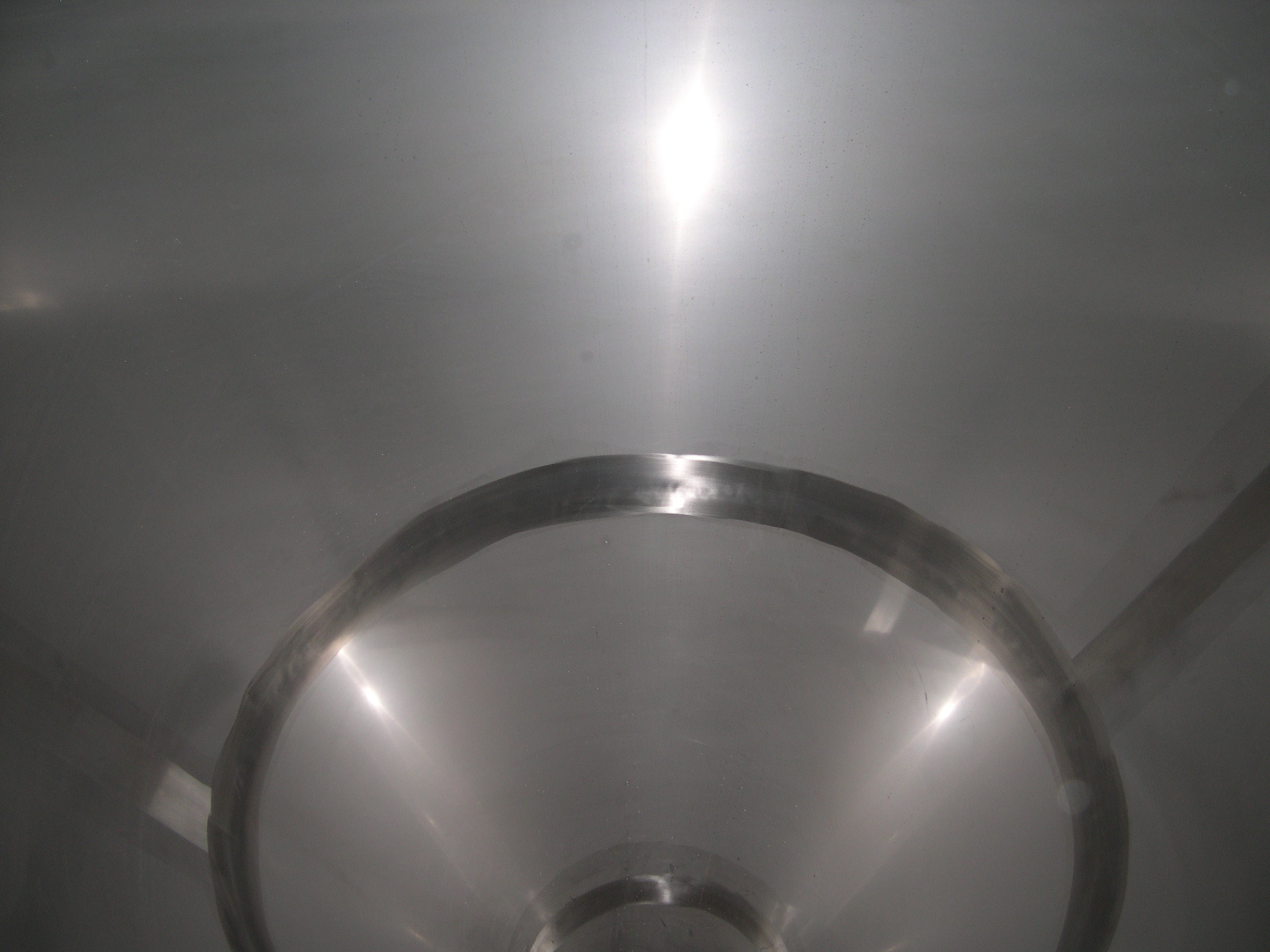

Cone
Stainless Steel 316
Other Specifications
Yes
Legs
Inlets & Outlets
Top, (1) 18" manway with bolted cover on hinge with sight glass, (1) 6" center with sanitary flange, (2) 2" with sanitary flanges, (1) 1" with sanitary flange; (1) 3" center bottom outlet with sanitary flange.
  • sanitary reactor body/kettle.
  • Wall thickness: 0.25" thick side wall, 0.220" thick top head, 0.218" thick bottom head
  • Sanitary construction, vessel and jacket are insulated and covered with a SS shroud.
  • Previously used for creams and lotions processing.
  • Jacket Thickness 13 Gauge.

Similar Equipment

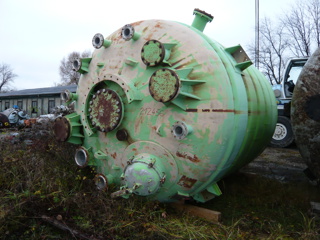

Stainless Steel 316 Clad Batch-Type Agitated Reactor
