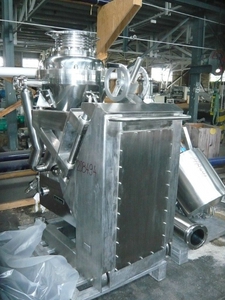

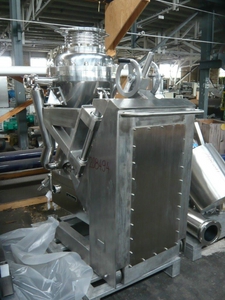

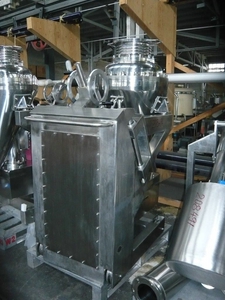

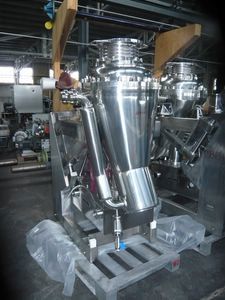

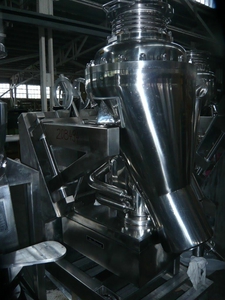

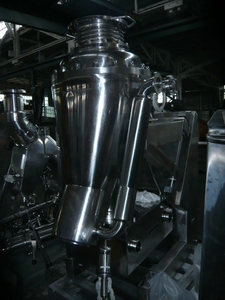

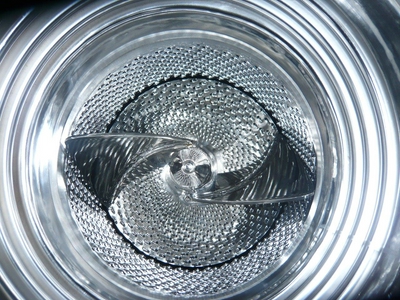

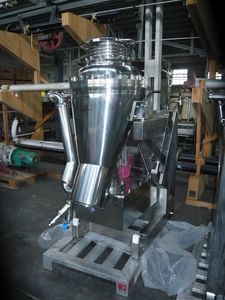

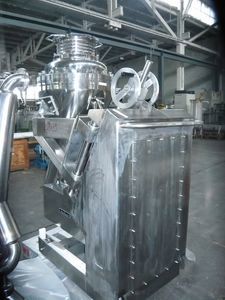

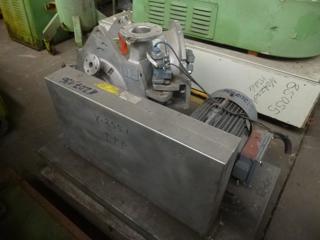

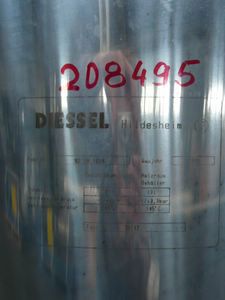

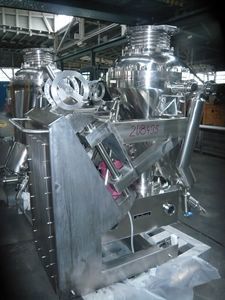

Stainless Steel 304 Diessel Hildesheim R300 Granulator/Disintegrator Pulverizer - IPP# 208494

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Alexanderwerk Pharma

Model: R300

Condition: Used

Material: Stainless Steel 304

Capacity: 91 m3 (3,200 ft3)

Orientation: Vertical

pressure internal -1/3 bar @ 145 deg C (91ltr), jacket -1/3.3 bar @ 145 deg C (13ltr), underdriven

Pressure: 3 bar (43.5 psi). Temperature: 145 °C (293 °F).

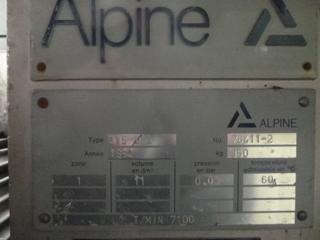

Type: Pulverizer

Subtype: Granulator/Disintegrator

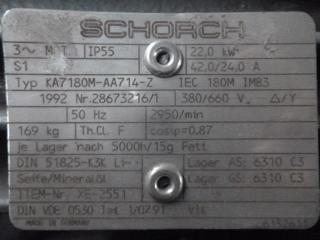

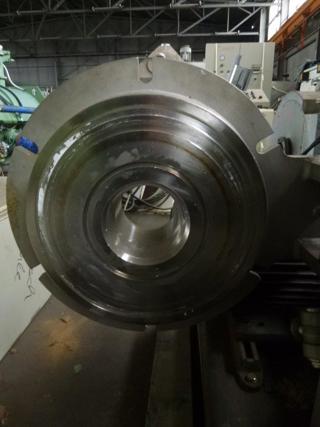

Manufacturer: Alpine (Hosokawa)

Model: Multiplex 315 UPZ

Condition: Used

Material: Stainless Steel 304

Capacity: 11 m3 (388.5 ft3)

Outlet Discharge Diameter: 156.5 mm (6.2 in)

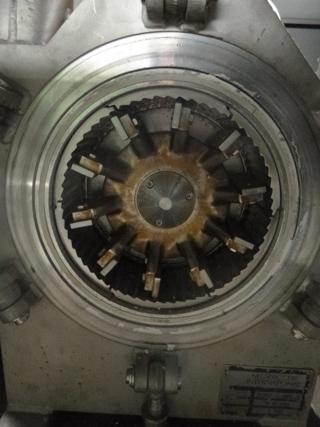

rated: 11 DCuM, 0.05 bar, 60°C., 10 bar overpressure stud disc diameter: 315 mm, plate beater: 298 mm, swing beater: 298mm, air inlet: DN 100 mm

Inlet Diameter: 150 mm (5.9 in). Motor Power (Design): 22 kW (29.5 HP). Orientation: Horizontal. Pressure: 0.05 bar (0.73 psi). Temperature: 60 °C (140 °F).

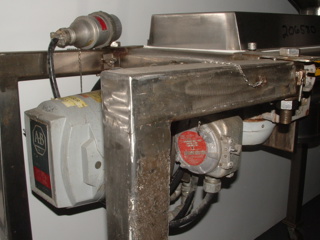

Type: Pulverizer

Subtype: Granulator/Disintegrator

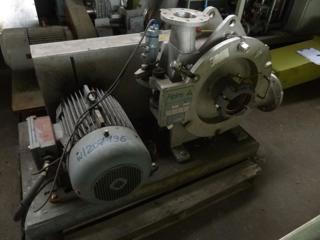

Manufacturer: Urschel

Model: 193S

Condition: Used

Material: Stainless Steel 304

Motor Power (Design): 7.5 kW (10 HP)

portable Urschel Mill with all explosion proof controls

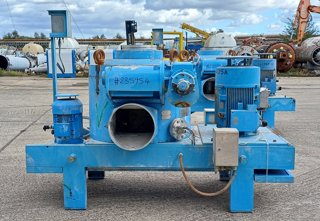

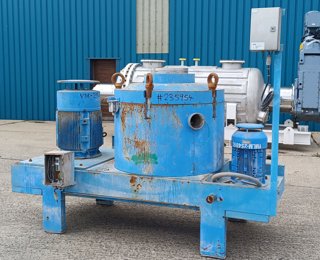

Type: Pulverizer

Subtype: Granulator/Disintegrator

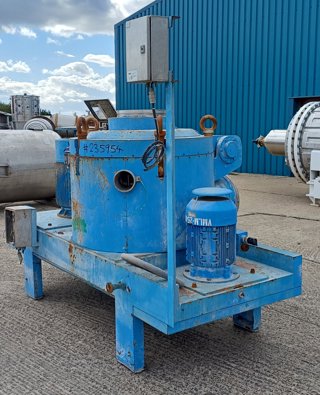

Manufacturer: Hosokawa Mikropul

Model: ACM 60-IS PSR-11

Condition: Used

Material: Stainless Steel 304

Outlet Discharge Diameter: 350 mm (13.8 in)

Inlet Diameter: 125 mm (4.9 in)

Pressure shock resistant design

Rated for 1500 kg./Hr,

pressure 11 bar at 70 degrees C,

side bottom inlet 390mm diameter and 125mm diameter,

top discharge 340mm,

36 pin disk underdriven by 45kW, 3/60/460 volt, 1775 rpm IP65 motor,

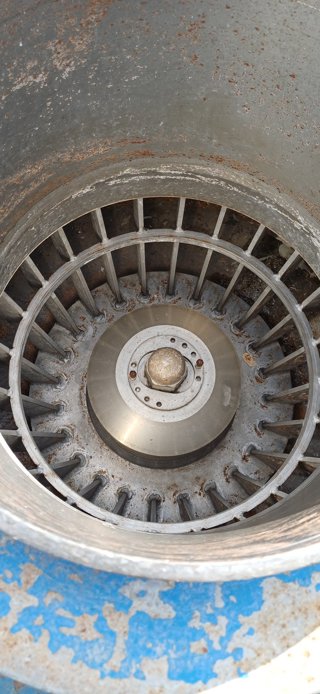

24 blade classifier under driven by 11kW, 3/60/460 volt, 1760 rpm motor,

Classifier is rated max. 3100 rpm.

speed 720 to 1775 rpm.

400mm air intake nozzle,

hinged top cover with manually operated opening mechanism

Motor Power (Design): 45 kW (60.3 HP). Speed (RPM): 3,100. Orientation: Vertical. Pressure: 11 bar (159.5 psi). Temperature: 70 °C (158 °F).
