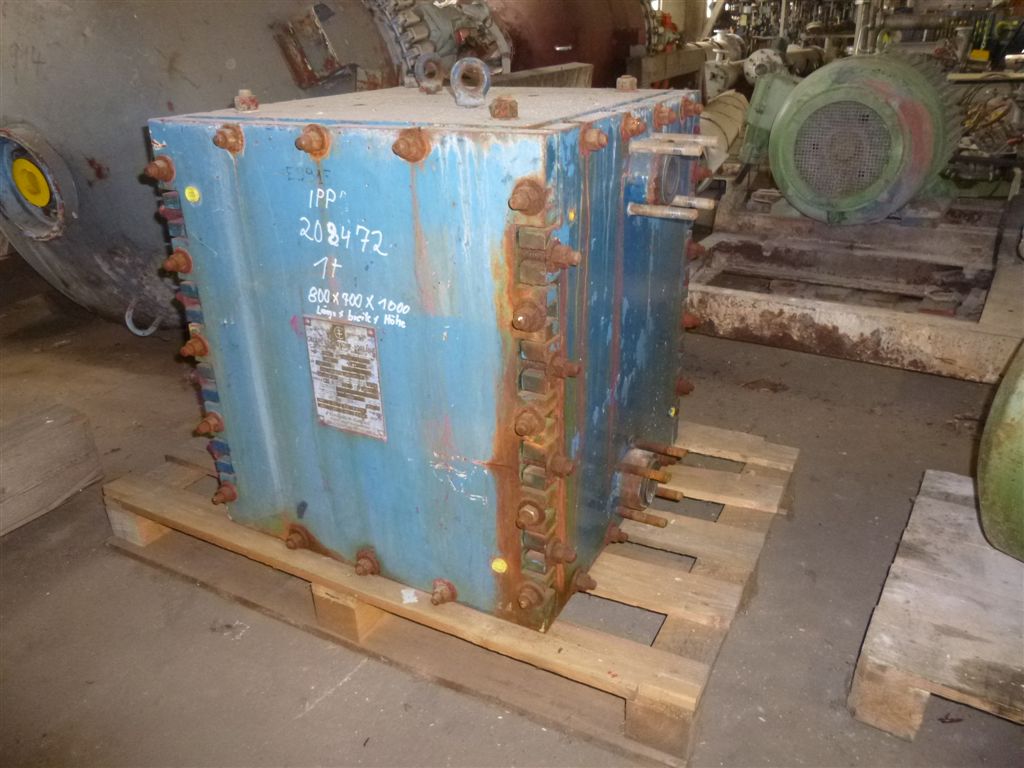

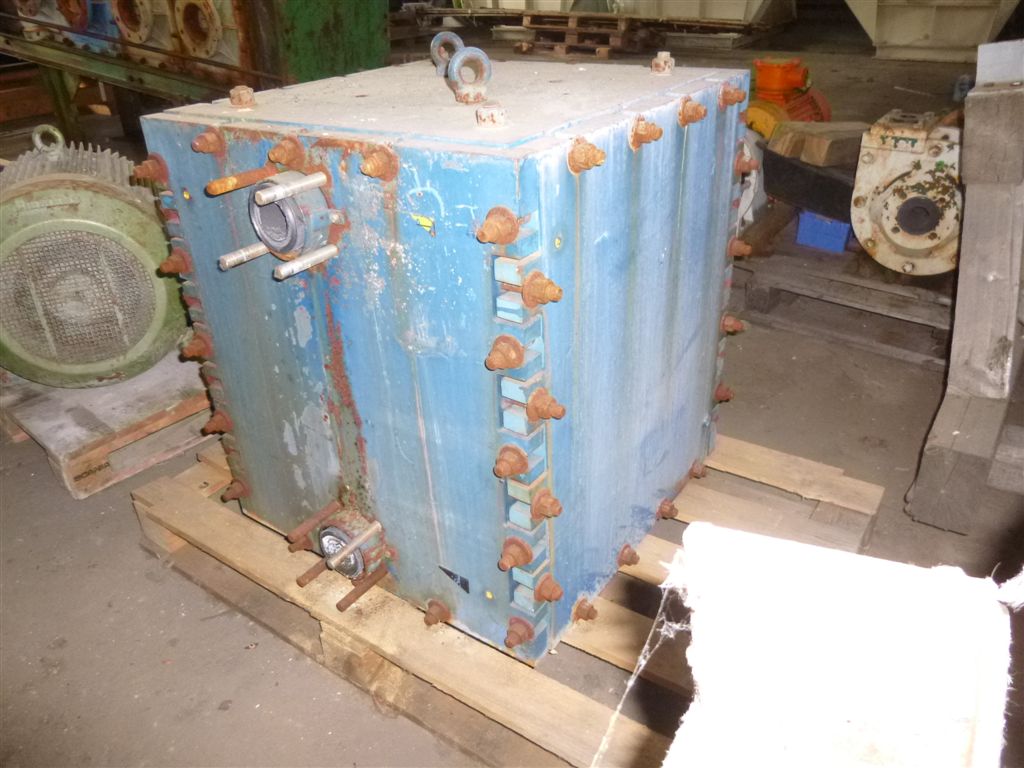

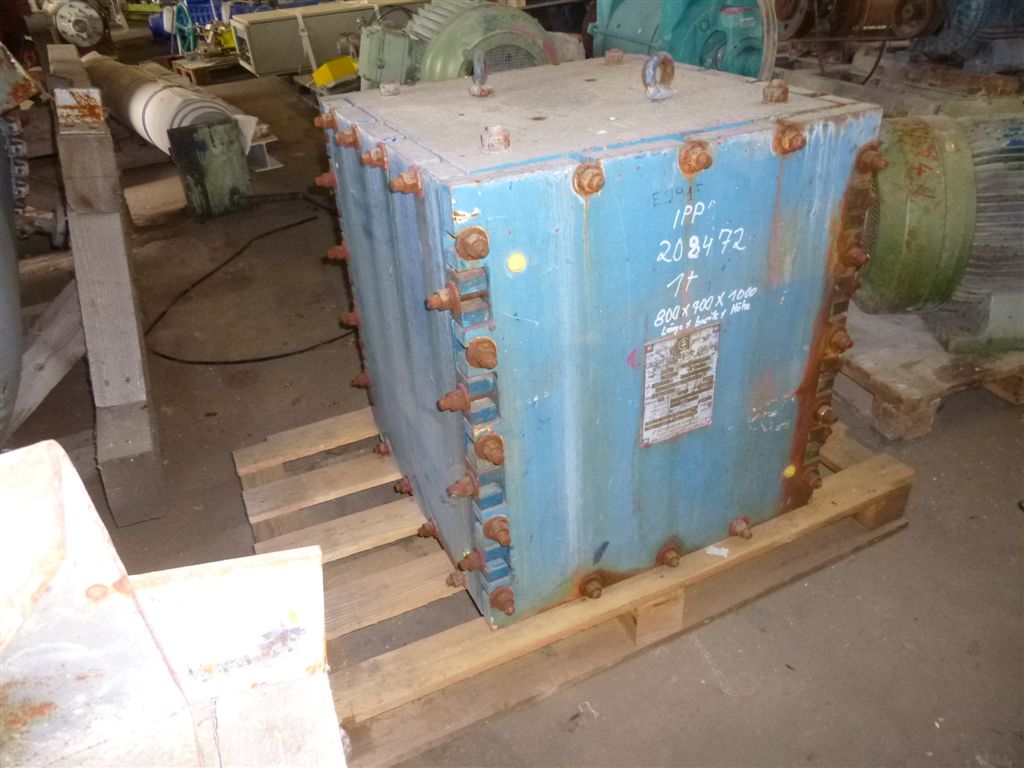

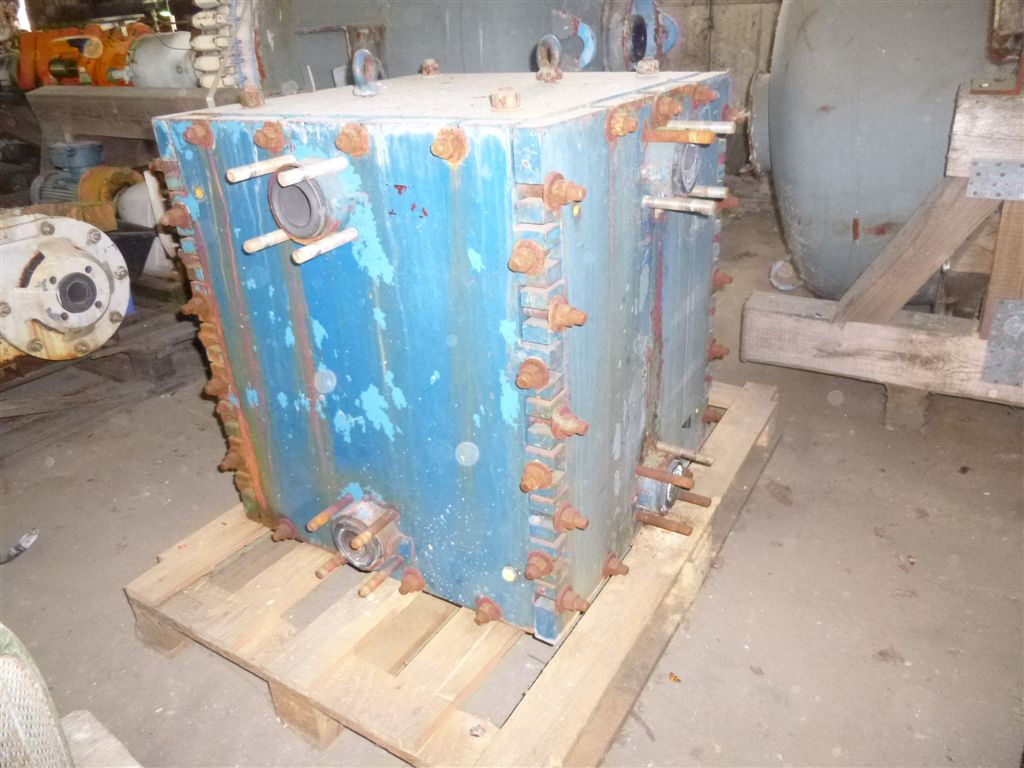

Graphite Block Heat Exchanger - IPP# 208472

Type: Heat Exchanger

Subtype: Block

Manufacturer: Le-Carbone Lorraine

Model: NC-210G

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.6 m² (17.2 ft²)

Orientation: Vertical

cyclindrical polybloc heat exchanger, Passes (process side): 5 Passes (service side): 6 Blocks: 4

Shell Pressure: 6 bar (87 psi). Shell Temperature: 150 °C (302 °F). Shell Material: Carbon Steel. Process Pressure: 6 bar (87 psi). Process Temperature: 100 °C (212 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Le-Carbone Lorraine

Model: NC 3166

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 10 m² (107.6 ft²)

Orientation: Vertical

cyclindrical graphite type: BS Liquid capacity 151.6 liter 12 blocks, passes passes service side 3, process 1

Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Length: 6,150 mm (242.1 in). Nozzle Schedule: openings: (1)=50mm inside diameter, (2)=80mm inside diameter, (2)=60mm inside diameter.. Process Pressure: 9 bar (130.5 psi). Process Temperature: 165 °C (329 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Sigri GmbH

Model: SD63-0720

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.1 m² (76 ft²)

Orientation: Vertical

• Estimated surface area to be 76 ft 2
• cylindrical pressure service side 5 atu @ 26 degrees C28 liters

Shell Temperature: 100 °C (212 °F). Shell Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 240 mm (9.4 in). Head Material: Carbon Steel. Length: 1,800 mm (70.9 in). Nozzle Schedule: tube side: (2) DN40; Shell side: (1) DN32, (1) DN40, (1) DN50. Block Type: Karbate. Process Pressure: 5 bar (72.5 psi). Pack Material: Graphite. Process Temperature: 100 °C (212 °F).

Type: Heat Exchanger

Subtype: Block

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.96 m² (21.1 ft²)

cubic block
