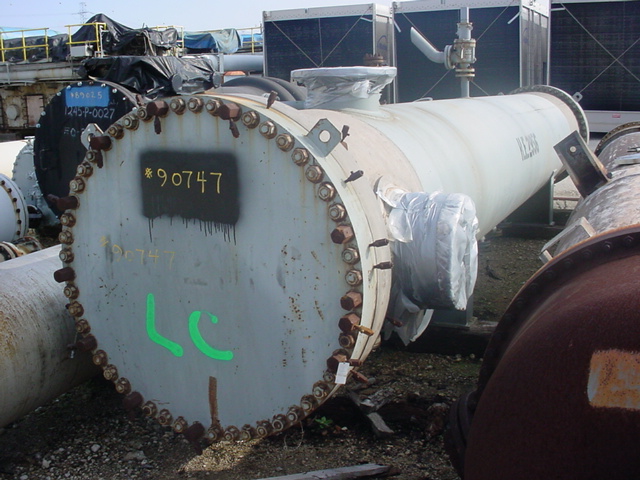

Name: Stainless Steel 304 Shell and Tube Heat Exchanger
Brand: O'Neils Welding and Fab
SKU: 207968

Overview

Type:

Heat Exchanger

Subtype:

Shell and Tube

Manufacturer:

O'Neils Welding and Fab

Model:

NEN

Condition:

Used

Material:

Stainless Steel 304

Capacity

Heat Transfer Surface Area:

458.8 m² (4,939 ft²)

Dimensions

Orientation:

Horizontal

Length:

8,534 mm (336 in)

Shell

Shell Pressure:

11.7 bar (170 psi)

Shell Temperature:

260 °C (500 °F)

Shell Material:

Carbon Steel

Shell Diameter:

1,067 mm (42 in)

Tube

Tube Pressure:

42.5 bar (616 psi)

Tube Temperature:

204.4 °C (400 °F)

Tube Material:

Stainless Steel 304

Tube-side Passes:

Tube Number:

1,286

Tube Diameter:

19.1 mm (0.75 in)

Tube Length:

6,096 mm (240 in)

Tube Thickness:

1.52 mm (0.06 in)

Other Specifications

Vacuum:

Yes

Head Material:

Stainless Steel 304

Nozzle Schedule:

- Openings: Shell (2) 14"; Heads - (2) 18"

Additional Info:

(20) baffles on 10" spacing 1" SQ pitch

Shell and Tube Heat Exchanger 458.8 m² (4,939 ft²) Stainless Steel 304 For Sale - IPP# 207968
