Name: 4,650 m3/h (2,700 CFM) Dryer-Flash
Brand: Aljet
SKU: 203553

Overview

Type:

Dryer-Flash

Manufacturer:

Aljet

Model:

SBDF-50 CF-3-N/2

Condition:

Used

Capacity

Air Flow:

4,650 m3/h (2,700 CFM)

Other Specifications

Evaporation Rate:

64.6 kg/h (142.5 lb/h)

Pressure:

1.01 bar (14.7 psi)

Temperature:

60 °C (140 °F)

Heating Type:

Steam

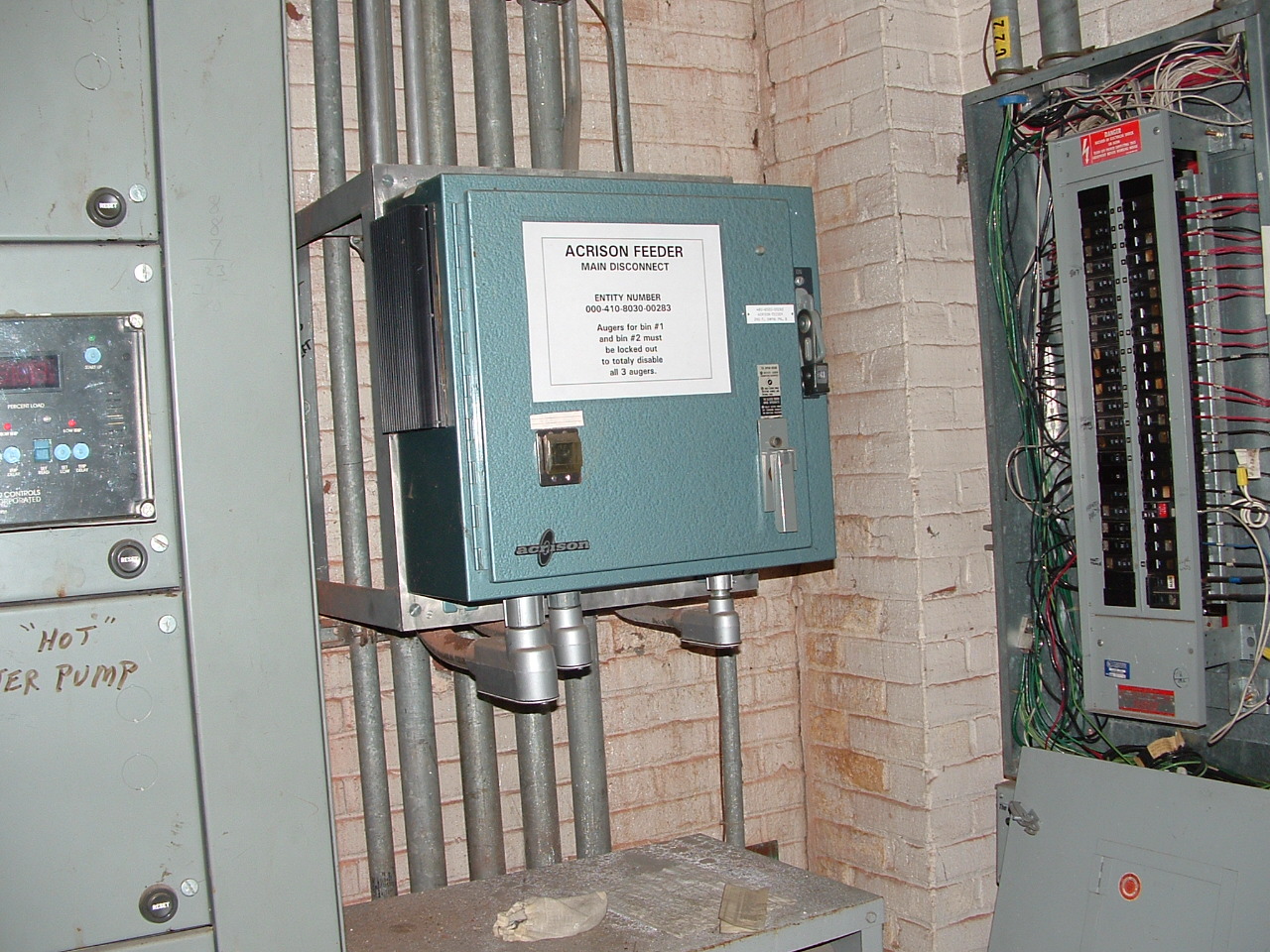

Feeder:

Yes

Product Feed Rate:

1,050 kg/h (2,350 lb/h)

Outlet Moisture %:

0.3

Dimensions

Diameter:

304.8 mm (12 in)

Additional Info:

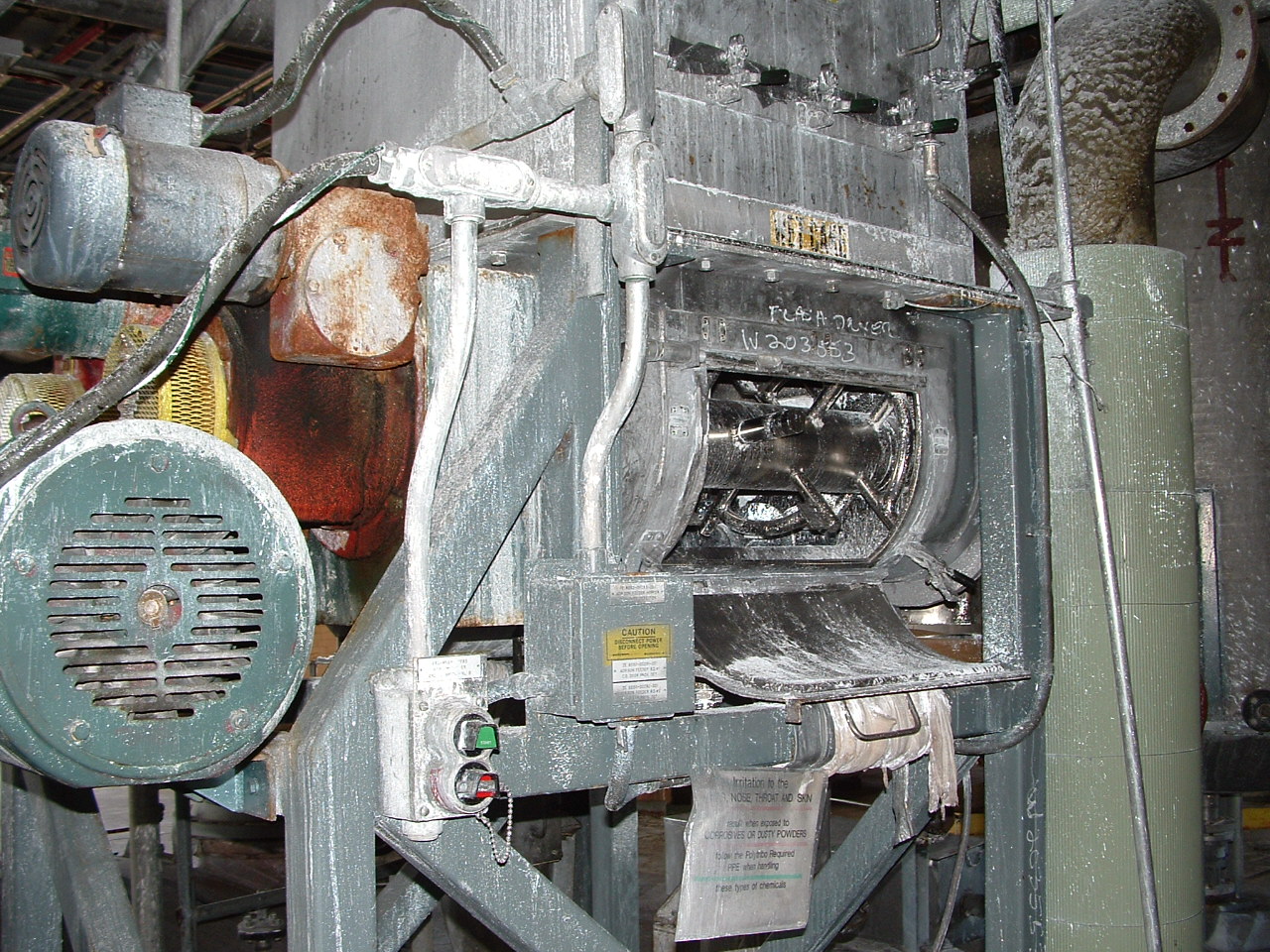

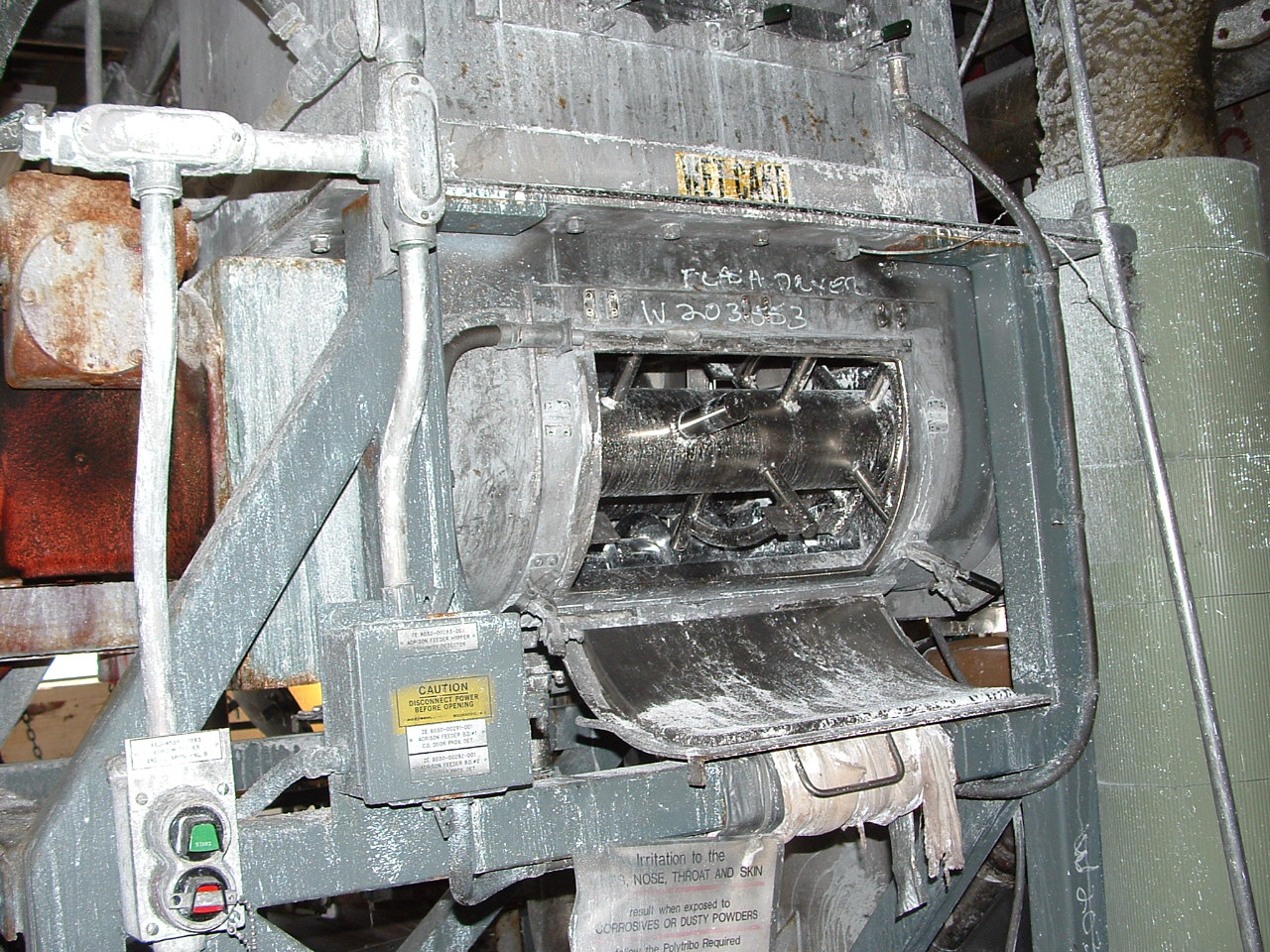

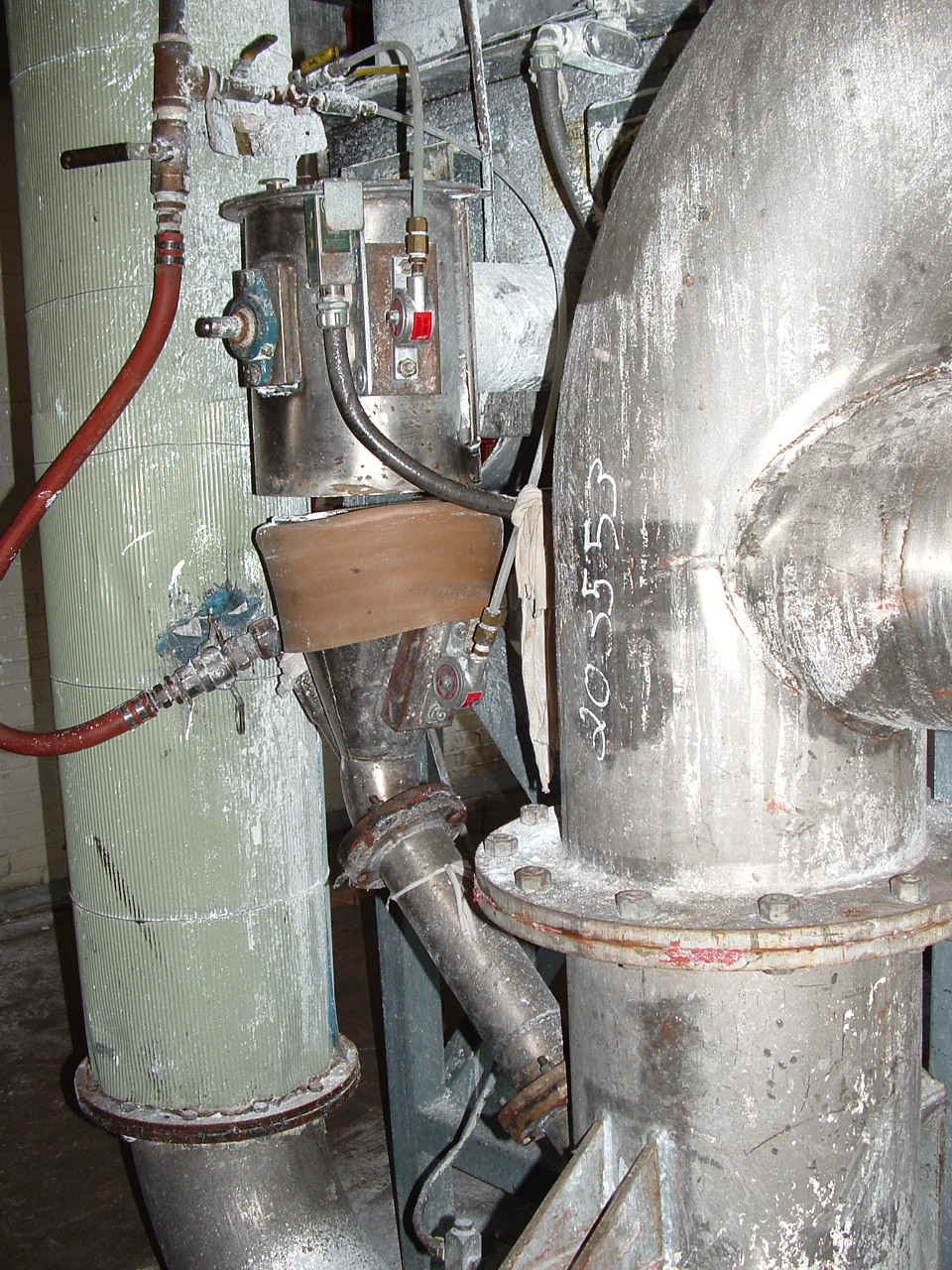

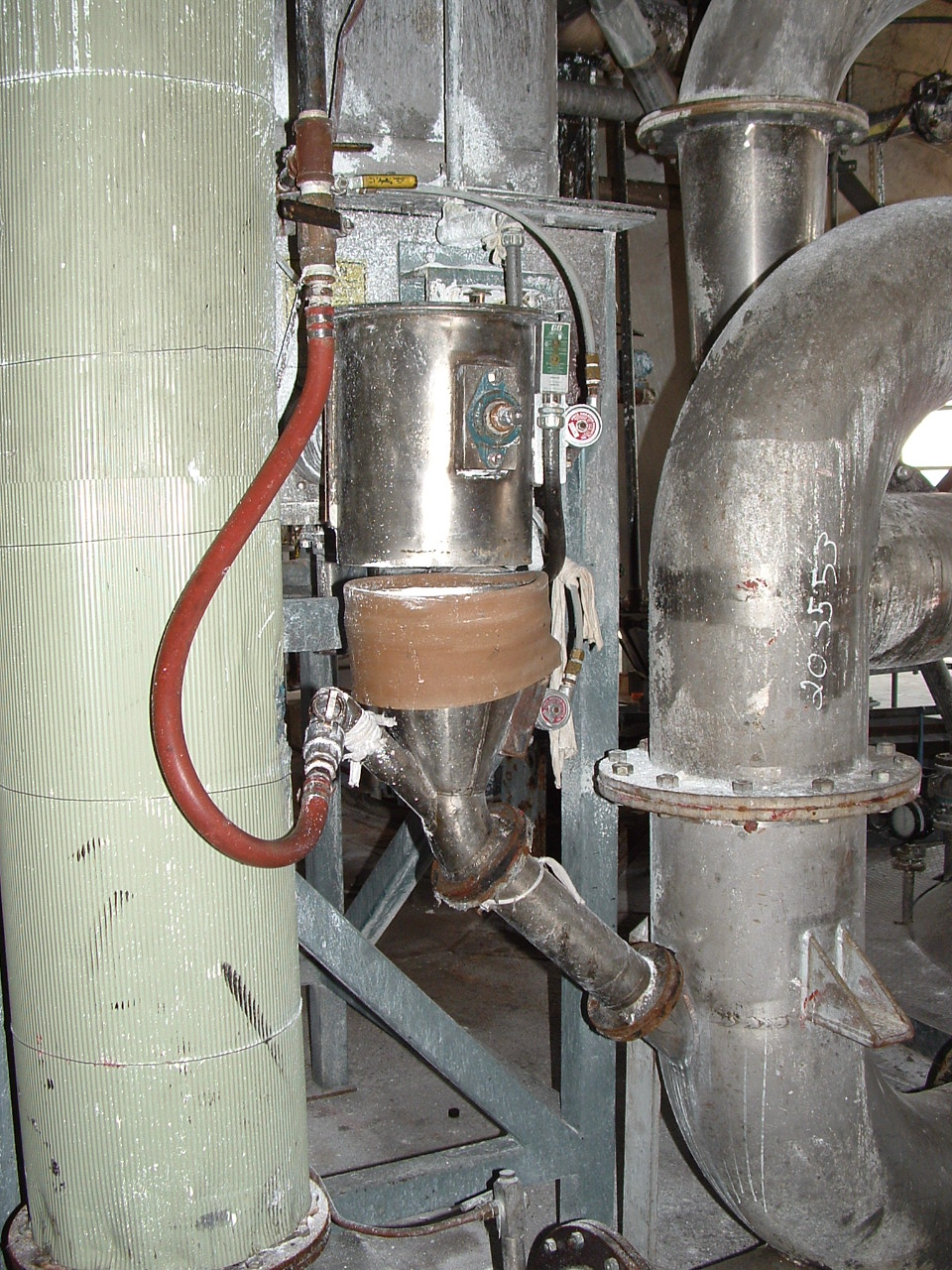

2500 lbs/ hour feed, 2357.5 lbs/hr product feed rate, .3 to .4% product moisture. with integral internal classifier, 1.75" venturi feed injector.

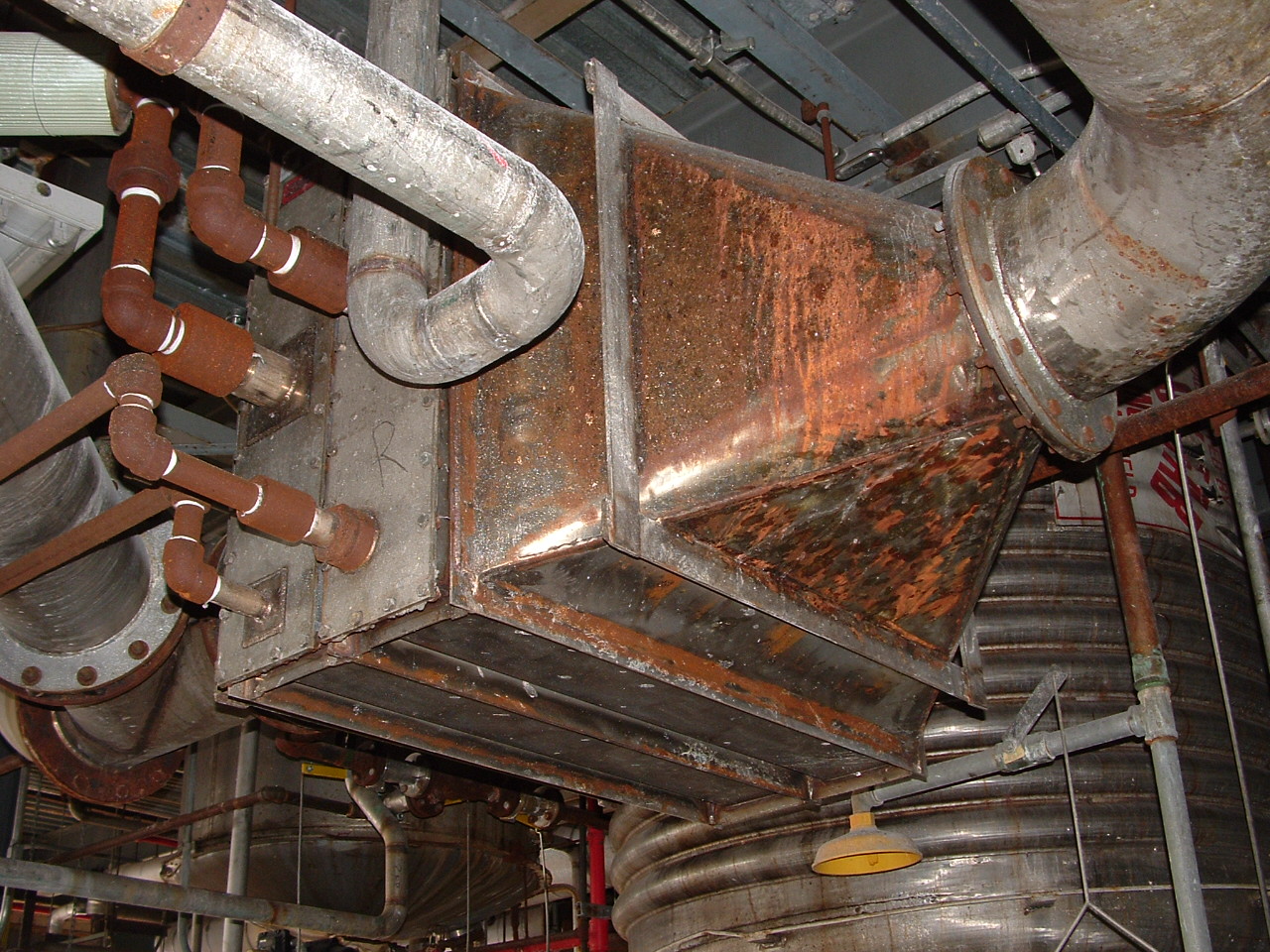

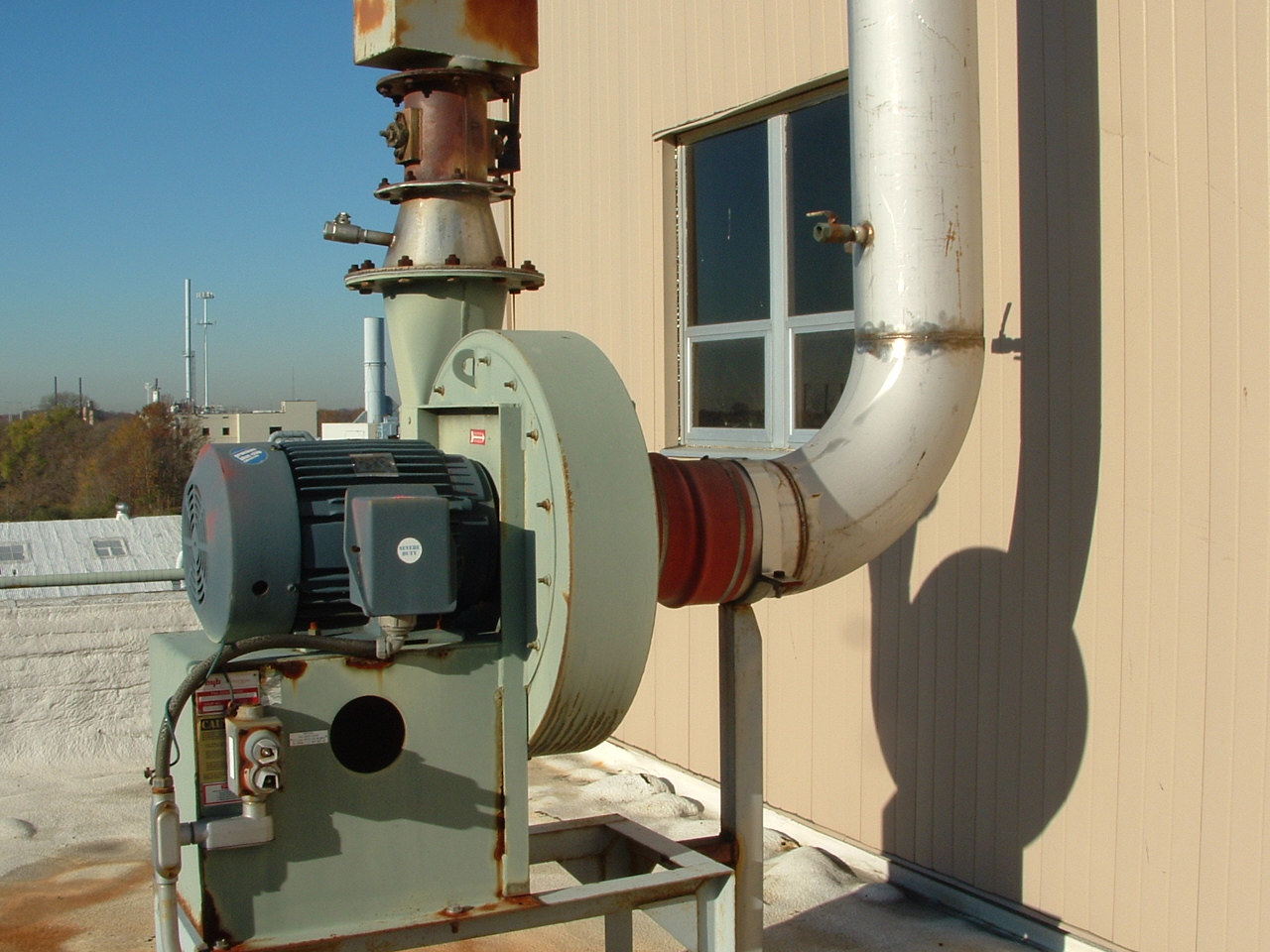

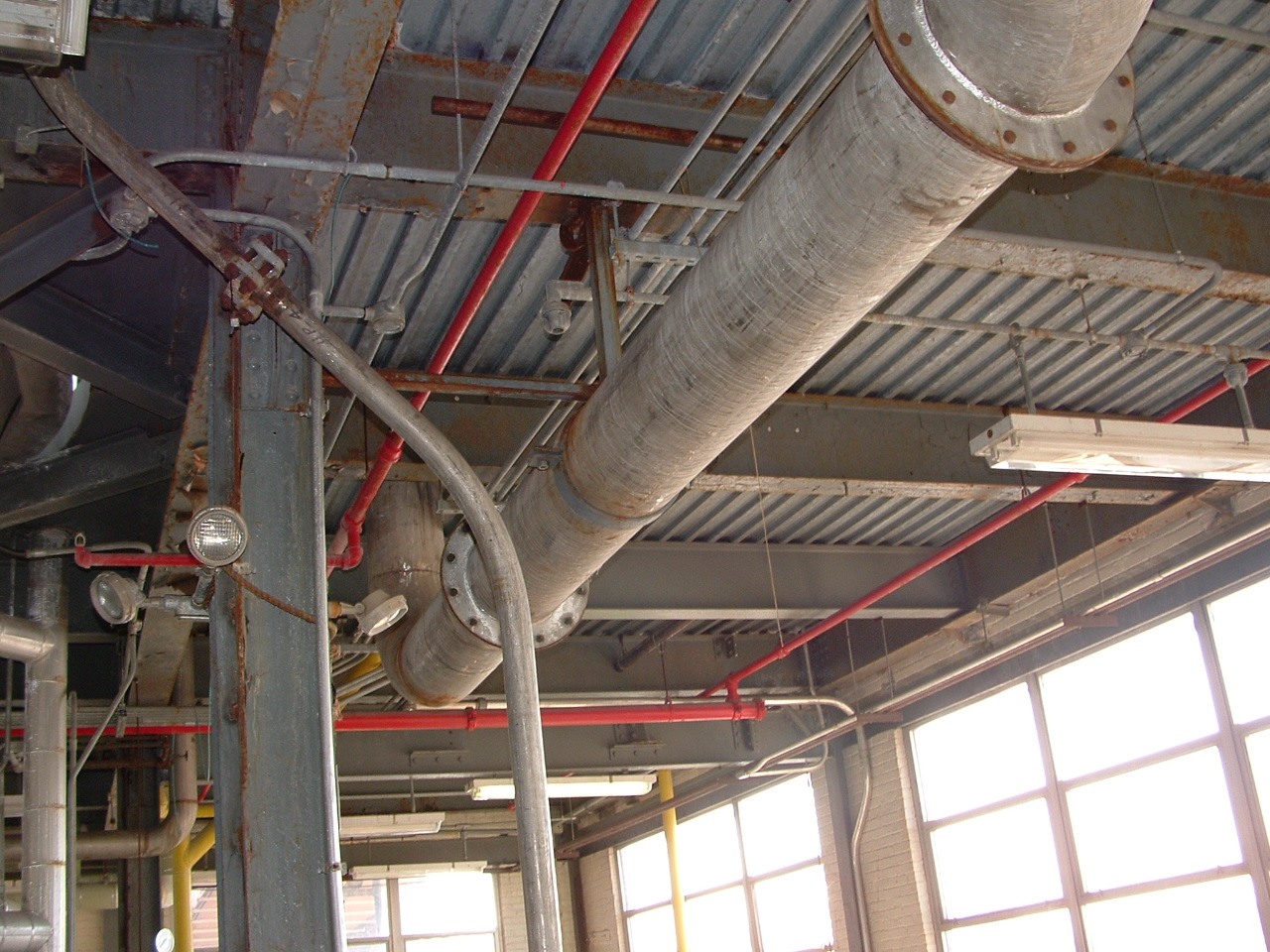

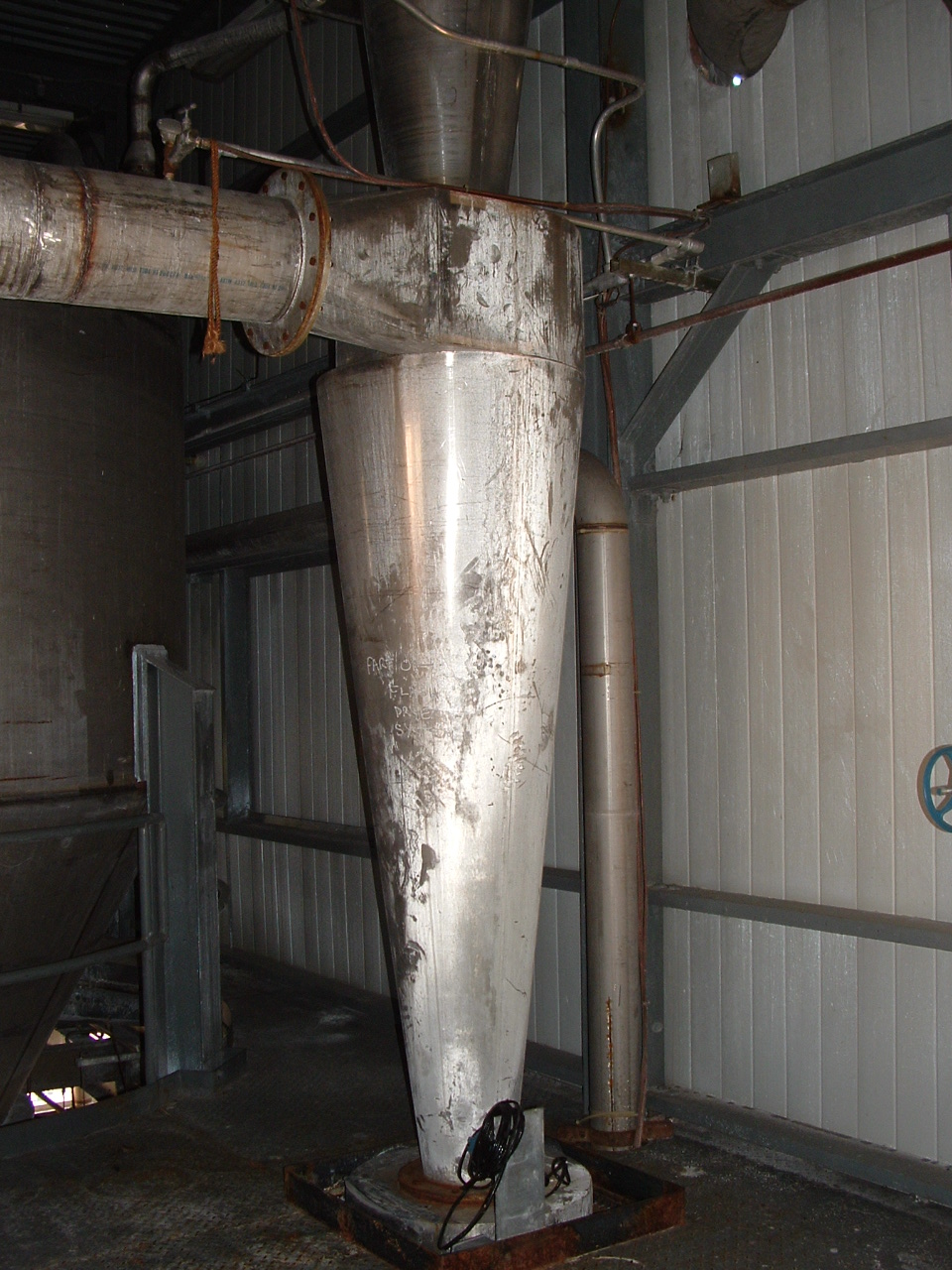

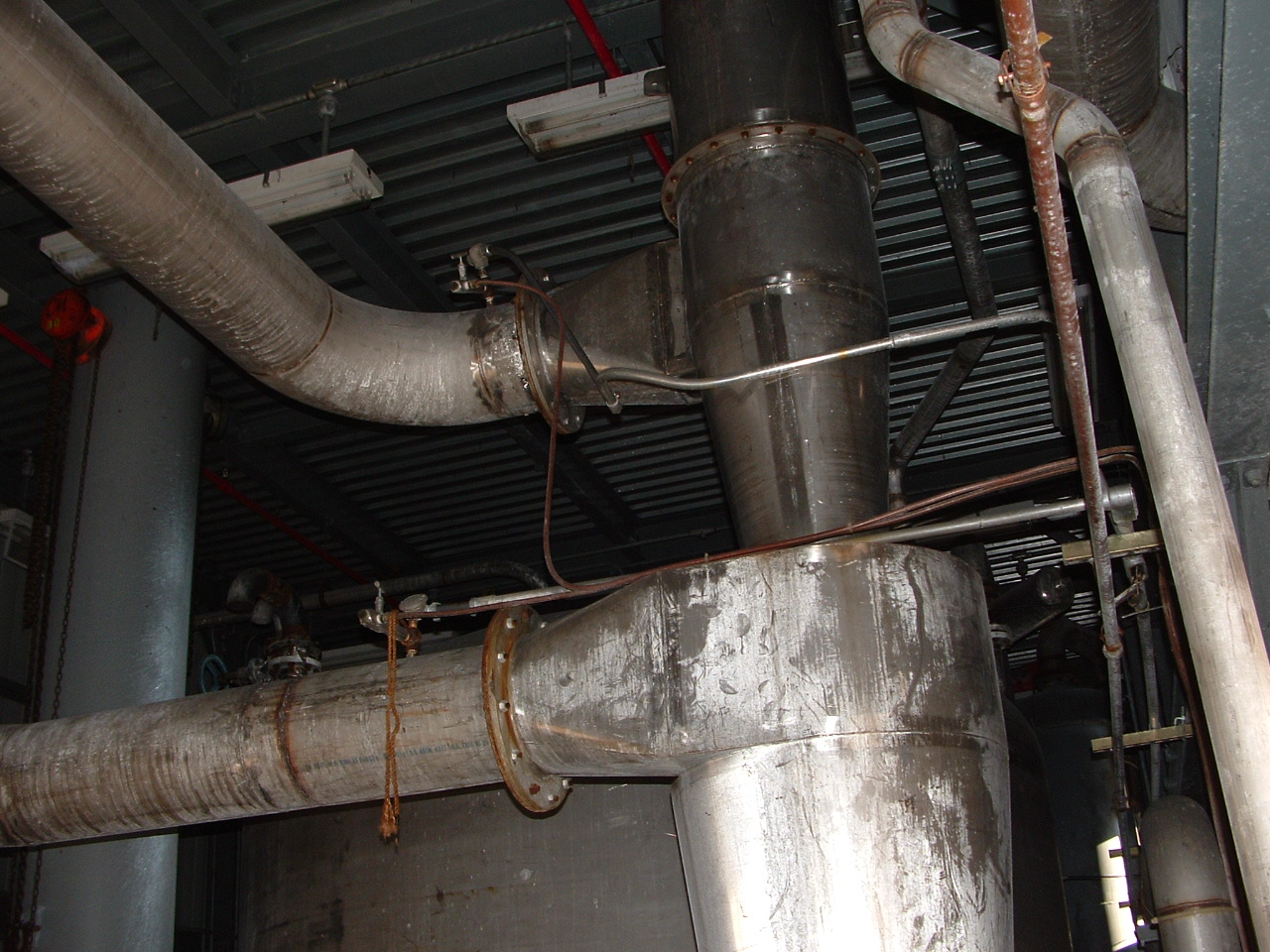

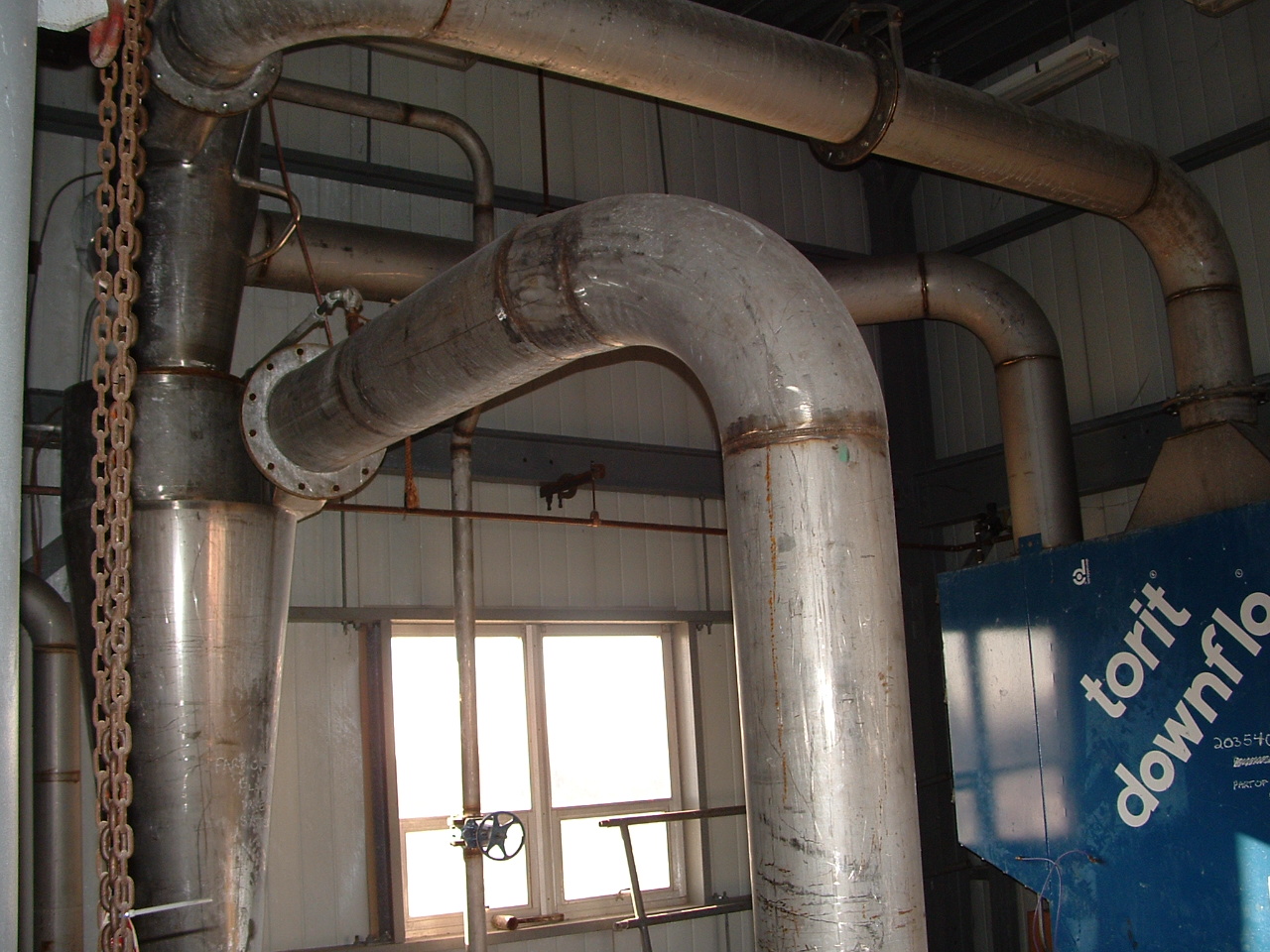

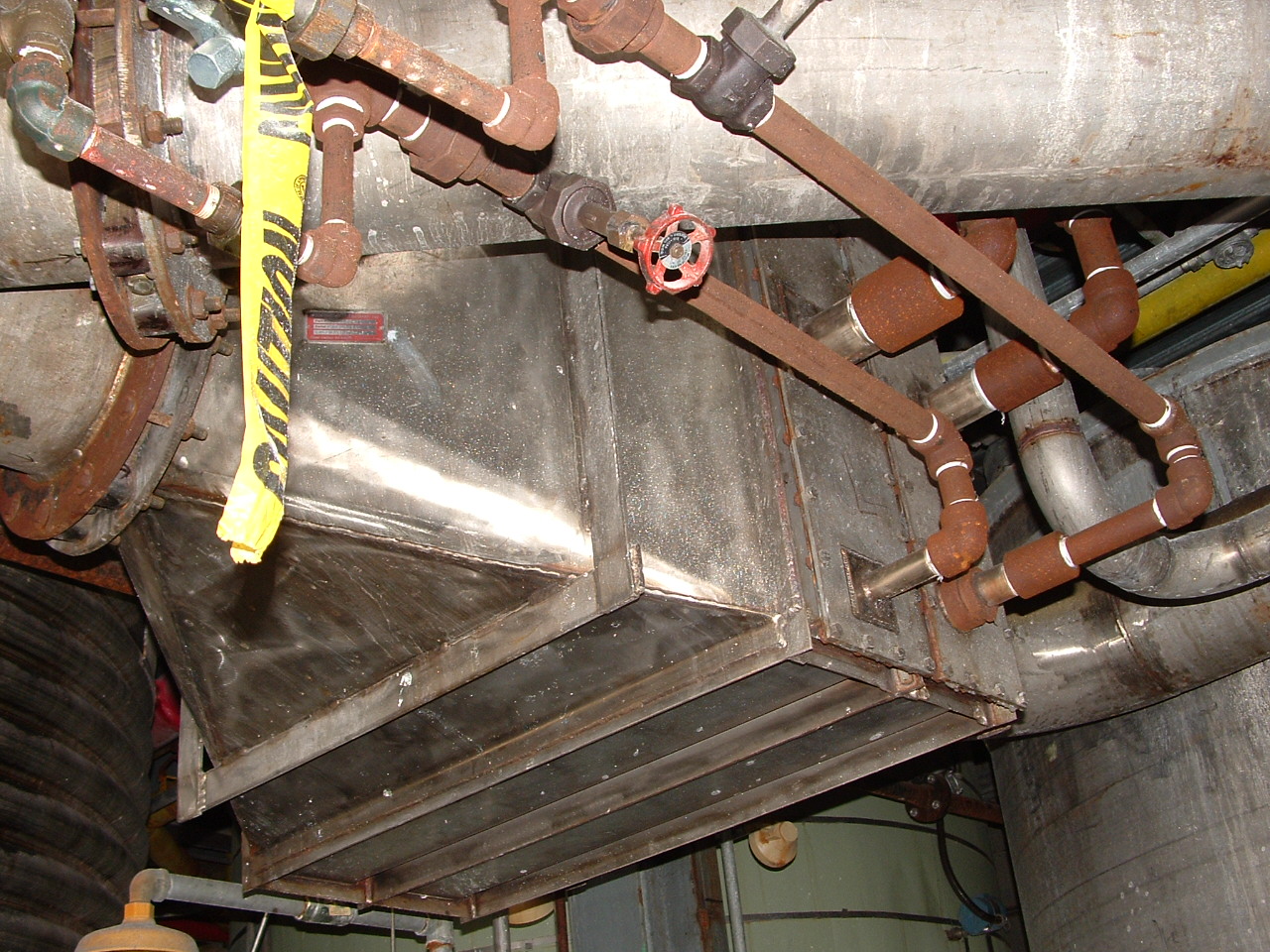

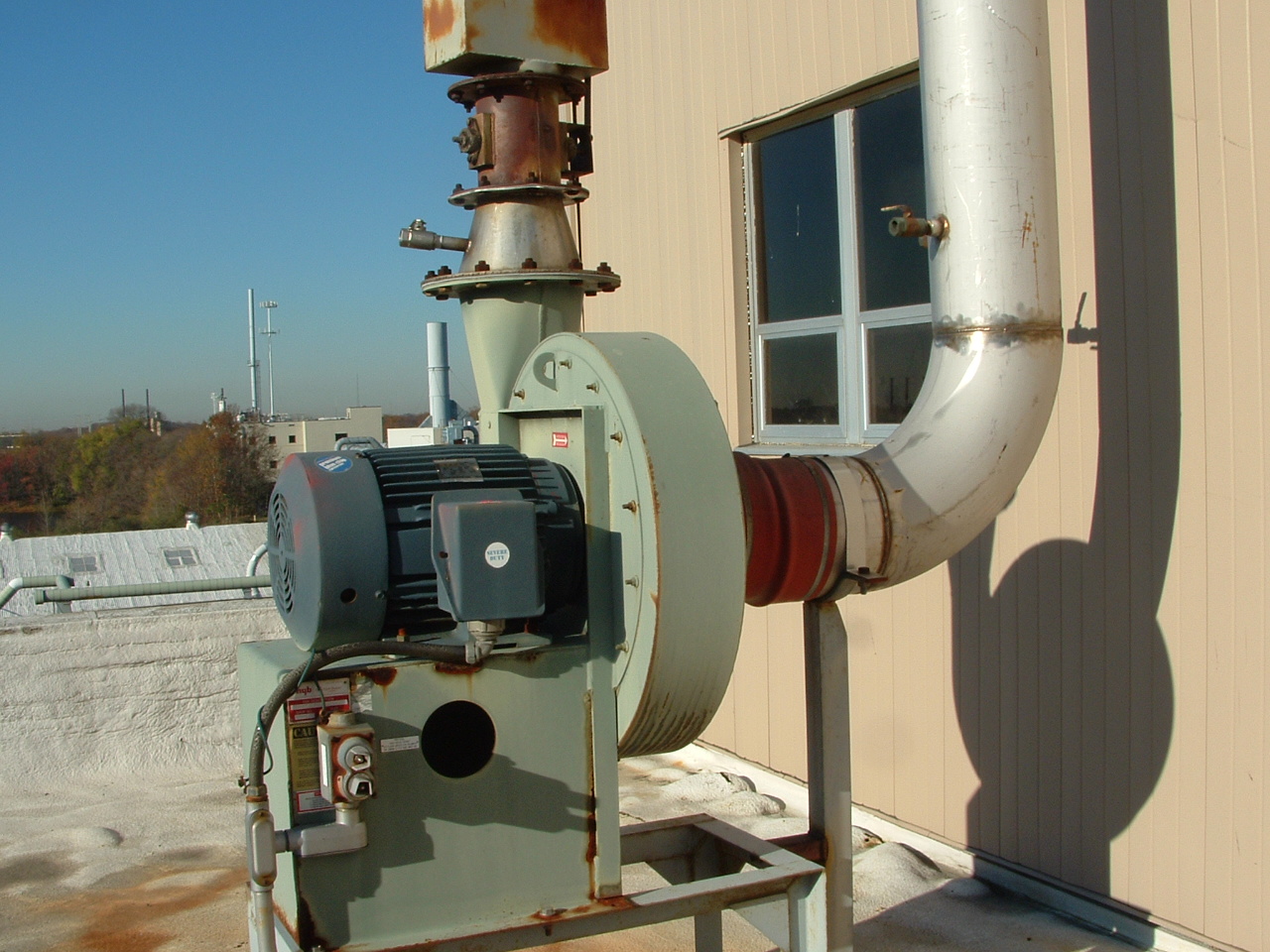

Cyclone collector discharge, model 30, with 10 CuFt Vortex breaking bin and 304 SS rotary airlock on cyclone bottom. Blowers include (1)American Fan Turbo Pressure Blower, model VP-6-08-25B, driven by a 30HP TEFC motor and (1)American Fan Turbo Pressure Blower, driven by a 25HP TEFC motor. Dryer heated through an American Standard Steam Coil air heater with 304SS headers. All 304SS interconnecting 12" diameter ductwork.
