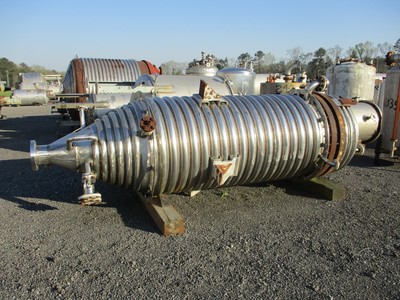

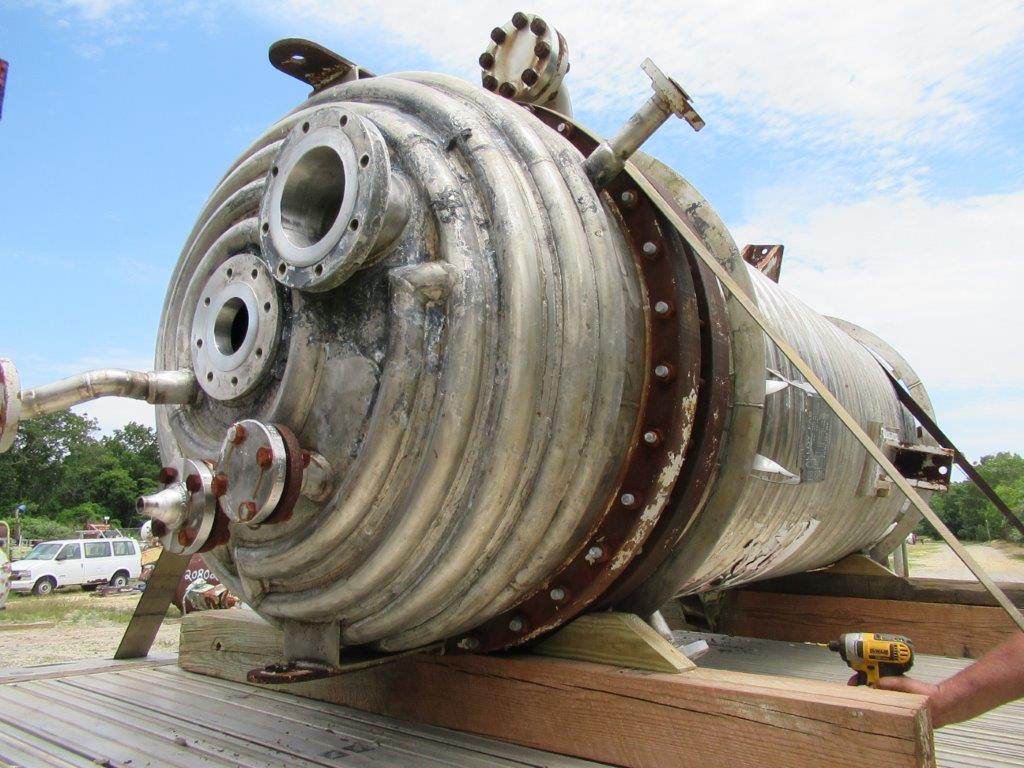

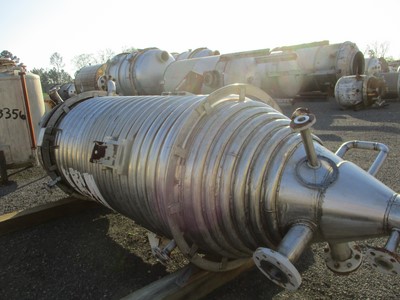

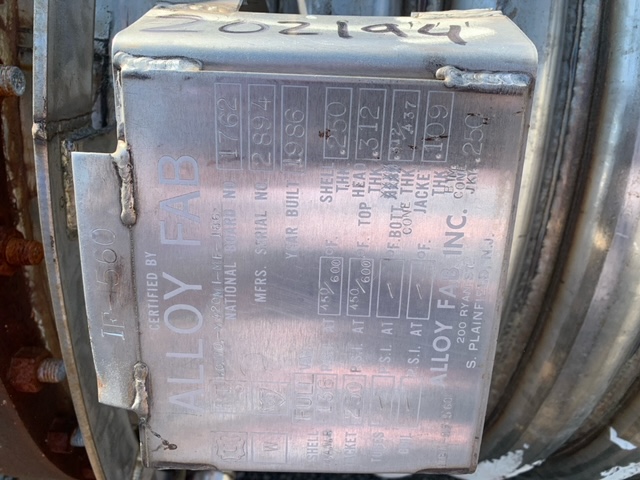

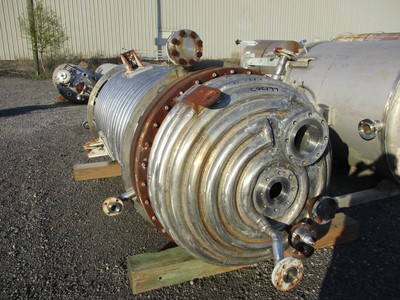

Pressure Leaf Filter Alloy Fab Stainless Steel 316 - IPP# 202194

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Seitz

Model: Radium RZ60A/6GCW

Condition: Used

Material: Stainless Steel 316

Filtration Area: 5.3 m² (56.5 ft²)

Orientation: Vertical

Internal (390 liter) Jacket (50 liter) (21) stainless steel plates 600mm Diameter, 750mm diameter x 1000mm straight side, Cake volume: 105 liter

Pressure: 6 bar (87 psi). Temperature: 133 °C (271.4 °F). Jacket: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 133 °C (271.4 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Sparkler

Model: 18-S-7

Condition: Used

Material: Stainless Steel 316

Filtration Area: 1.05 m² (11.3 ft²)

Pressure: 4.1 bar (60 psi)

0.141 " tank thickness with scavenger plate 0.414 CuFt cake capacity 7 plates (number of plates included)

Temperature: 176.7 °C (350 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: BHS Werk

Model: 760/80/15+1

Condition: Used

Material: Stainless Steel 316

Filtration Area: 6.3 m² (67.8 ft²)

Diameter: 760 mm (29.9 in)

1090 liter - volume measurement in liters jacketed - type of equipment centrifugal discharge pressure leaf filter - type of filter Rated 72 PSI @ 302 degrees F internal; 72 psi, 90 liter @ 302 degrees F in the jacket (15) plates - number of plates in the filter on 80 mm spacing - distance between plates 55mm cake thickness Vessle is 1000 mm diameter. 0.42KW drive for centrifugal cake discharge

Pressure: 5 bar (72 psi). Temperature: 150 °C (302 °F). Jacket: Yes. Jacket Pressure: 5 bar (72 psi). Jacket Temperature: 150 °C (302 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap Ag (Switzerland)

Model: 5213/25

Condition: Used

Material: Stainless Steel 316

Filtration Area: 15 m² (161.5 ft²)

Diameter: 1,100 mm (43.3 in)

Test pressure: 11.9 bar centrifugal discharge Total capacity 539 gals (448 Imperial gals) Unit has (20) 39" diameter discs Type A for wet cake discharge.

Pressure: 6.9 bar (100.1 psi). Jacket: Yes. Jacket MOC: Carbon Steel.
