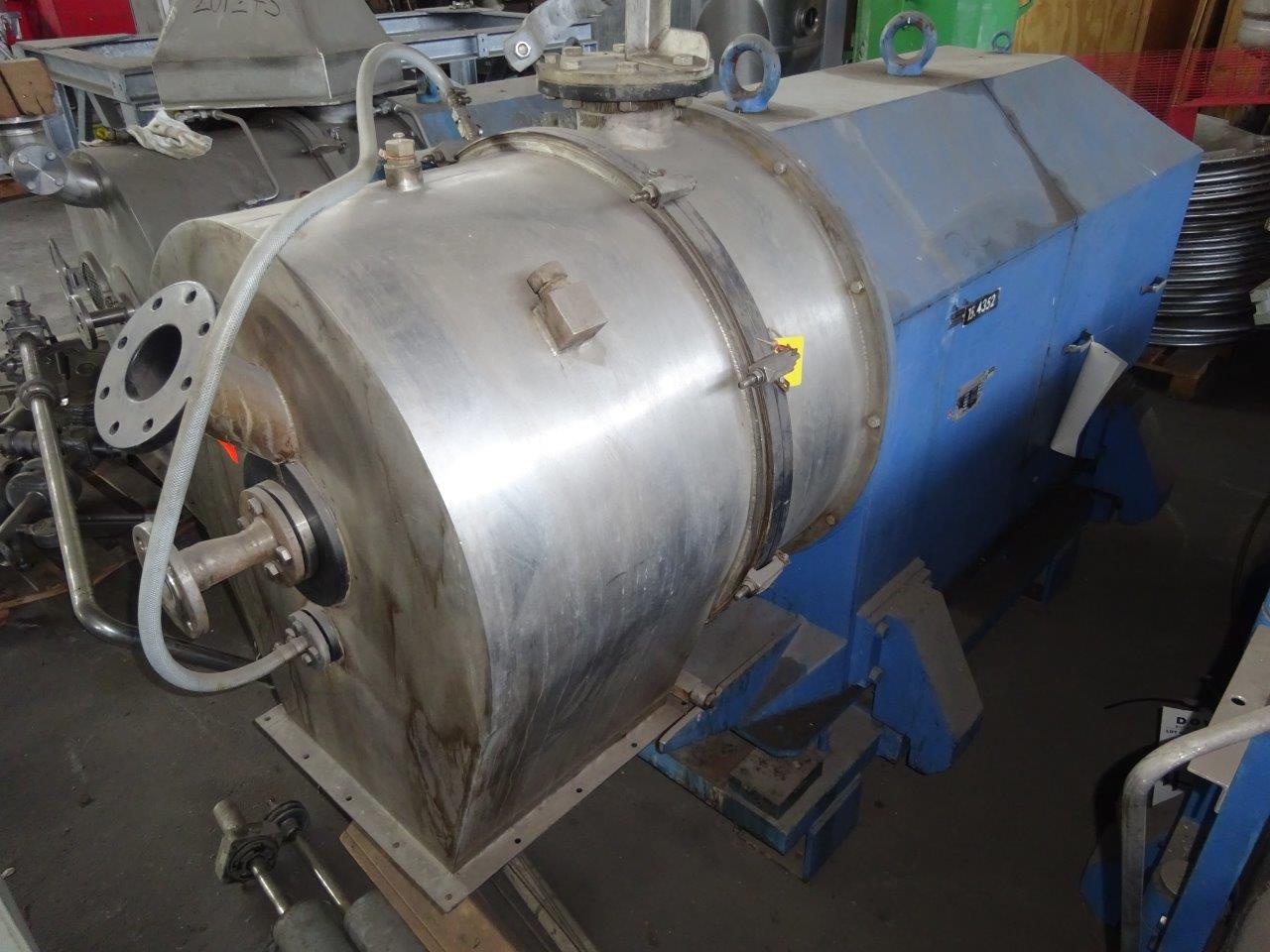

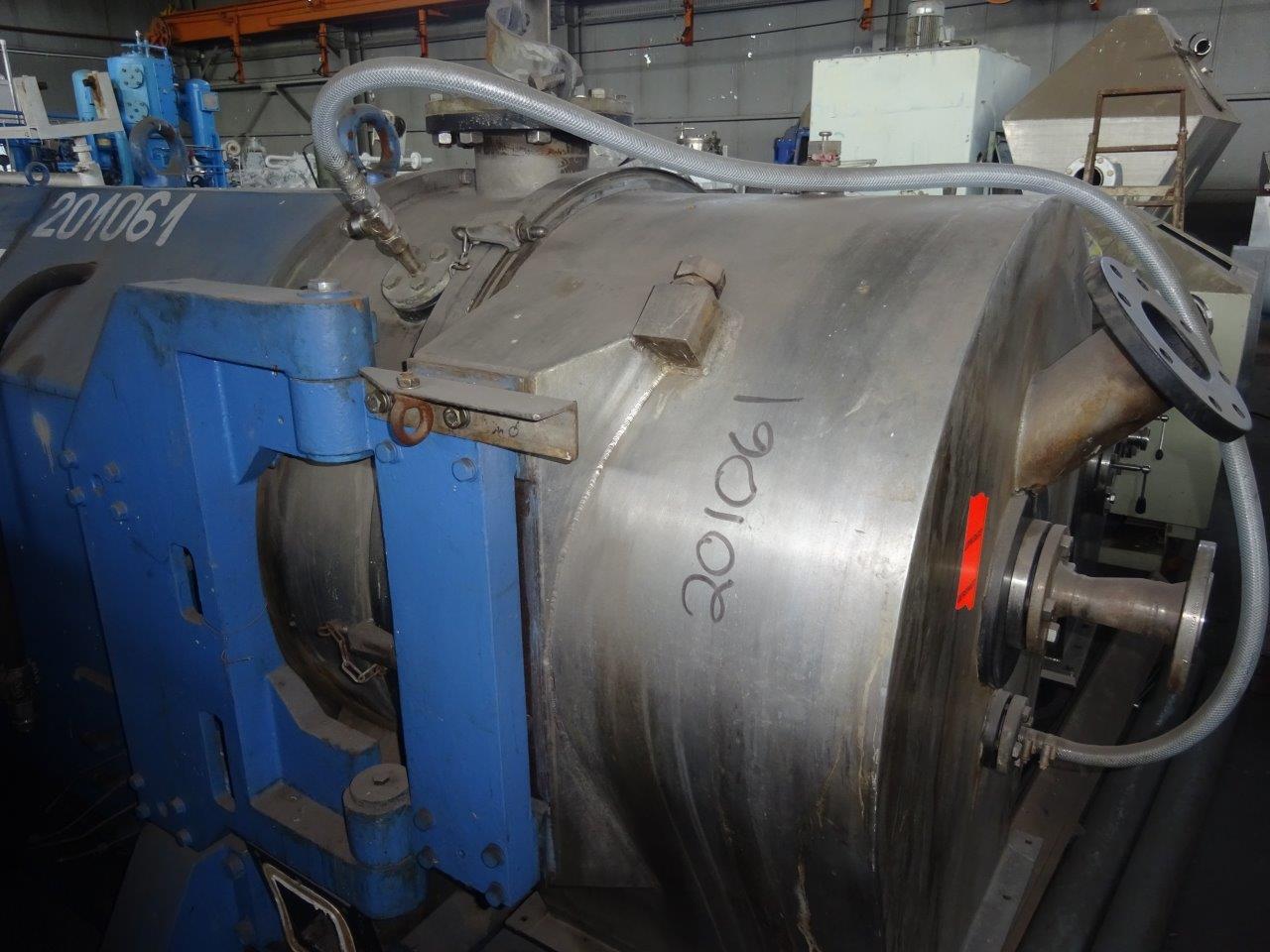

Halar Lined Heinkel HF 600 Centrifuge-Inverting Filter - IPP# 201061

Type: Centrifuge-Inverting Filter

Manufacturer: Heinkel

Model: HF 600

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 600 mm (23.6 in)

Basket Depth: 220 mm (8.7 in)

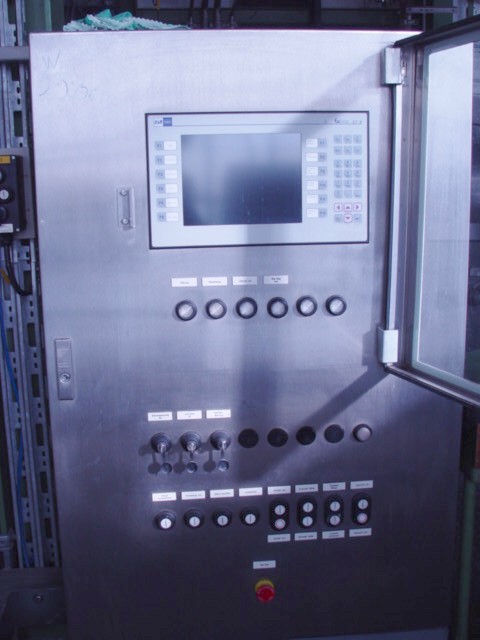

cake capacity 55 liter centrifugal force: 1250 xg with translation powe rpack, with filtrate discharge tank 875 mm diameter x 700 mm straight side with a 500 mm top opening,, mounted on stand, with control cabinet and stairs

Filtration Area: 0.42 m² (4.5 ft²). Speed-RPM Maximum: 1,936. G Force: 1,250. Load Weight: 110 kg (242.5 lb). Main Drive Motor Power: 30 kW (40.2 HP). Controls: Yes. Washing: Yes.

Type: Centrifuge-Inverting Filter

Manufacturer: Heinkel

Model: HF 600

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 600 mm (23.6 in)

Basket Depth: 220 mm (8.7 in)

Inverting filter centrifuge Cake capacity: 52.2 liter Centrifugal force: 1200 xg With filtrate discharge tank 875 mm diameter x 700 mm straight side with a 500 mm top opening with translation powerpak. Control panel. Floor space required: 290 mmL x 1750 MMW x 1410 mm H

Filtration Area: 0.45 m² (4.8 ft²). Speed-RPM Maximum: 1,936. G Force: 1,200. Load Weight: 110 kg (242.5 lb). Main Drive Motor Power: 30 kW (40.2 HP). Controls: Yes. Washing: Yes.

Type: Centrifuge-Inverting Filter

Manufacturer: Heinkel

Model: HF-600

Condition: Used

Material: Stainless Steel 316L

Basket Diameter: 600 mm (23.6 in)

Basket Depth: 220 mm (8.7 in)

316L stainless steel hinged front chamber carbon steel housing hydrostatic driven

Filtration Area: 0.42 m² (4.5 ft²). Speed-RPM Maximum: 1,936. G Force: 1,250. Load Weight: 65 kg (143.3 lb). Main Drive Motor Power: 3 kW (4 HP). Washing: Yes.

Type: Centrifuge-Inverting Filter

Manufacturer: Heinkel

Model: HF-600.1

Condition: Used

Material: Hastelloy - C22

Basket Diameter: 600 mm (23.6 in)

Basket Depth: 220 mm (8.7 in)

explosion class E Exde II CT4, non-wetted parts 316L stainless steel (1.4571) Teflon seals inverting mechanism driven by 5.5 kw, 3/50/500 volt, 1500 rpm E Exd II CT4 motor, feed pipe with 1.5kw, 3/50/500 volt, 1500 rpm E Exd II CT4 motor, hinged front door, CE and TUV certified

Filtration Area: 0.45 m² (4.8 ft²). Speed-RPM Maximum: 1,940. G Force: 1,250. Load Weight: 65 kg (143.3 lb). Main Drive Motor Power: 22 kW (29.5 HP). Controls: Yes. Washing: Yes.
