Dryer-Rotary Hot Air 610 mm (24 in) Stainless Steel 304 For Sale - IPP# 105920

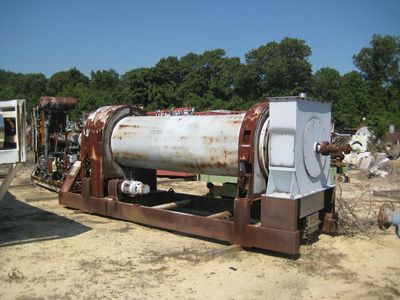

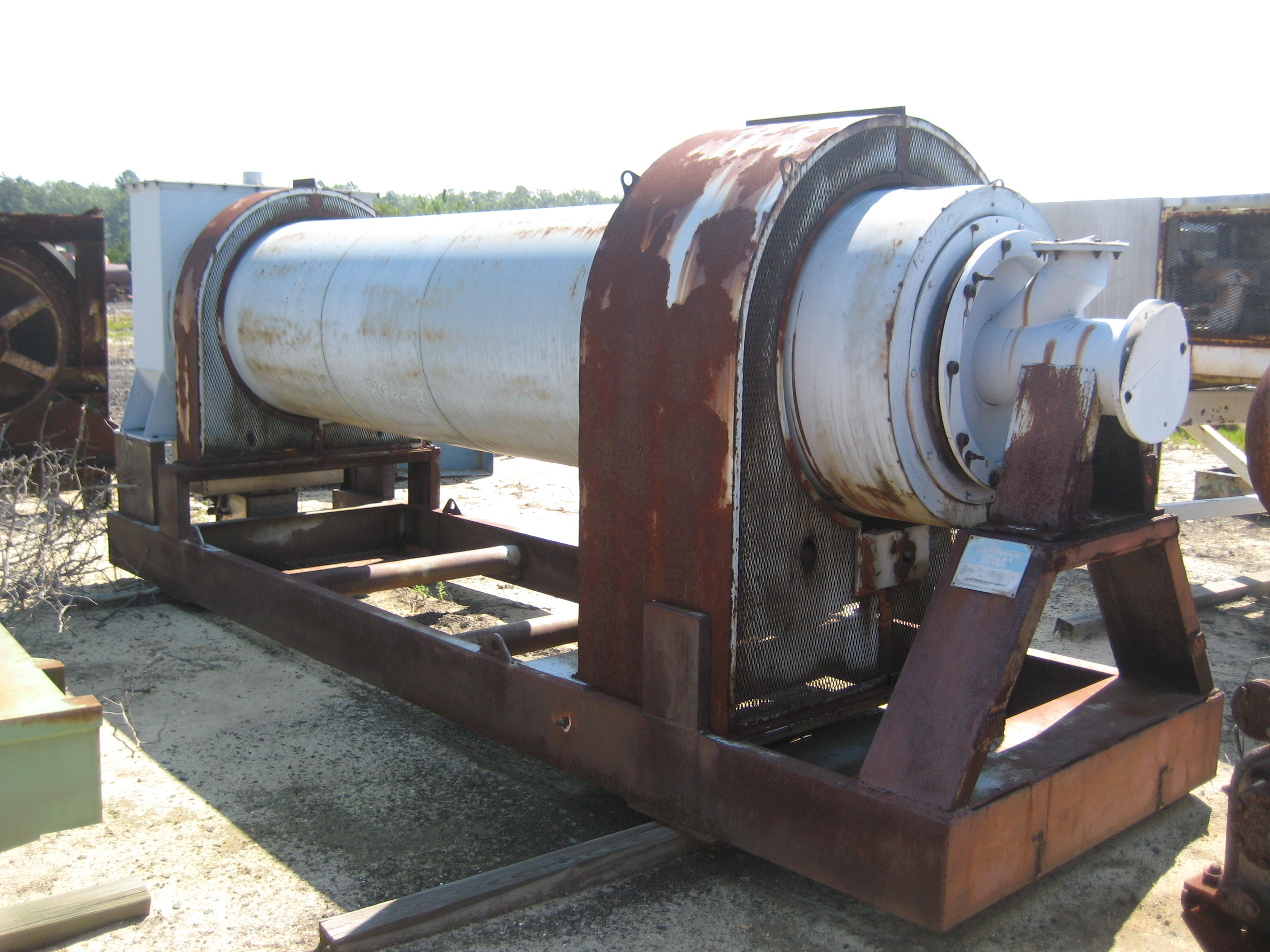

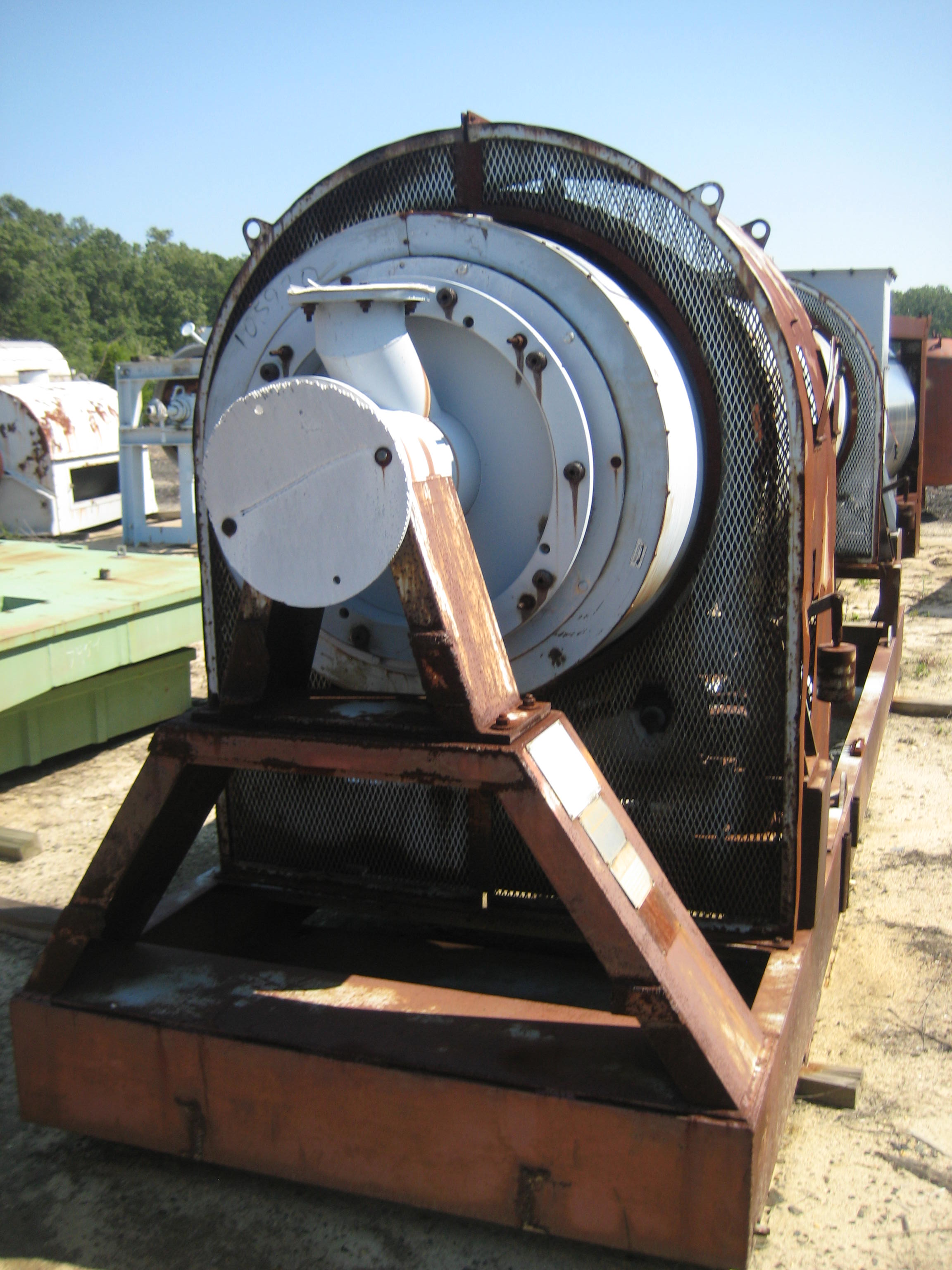

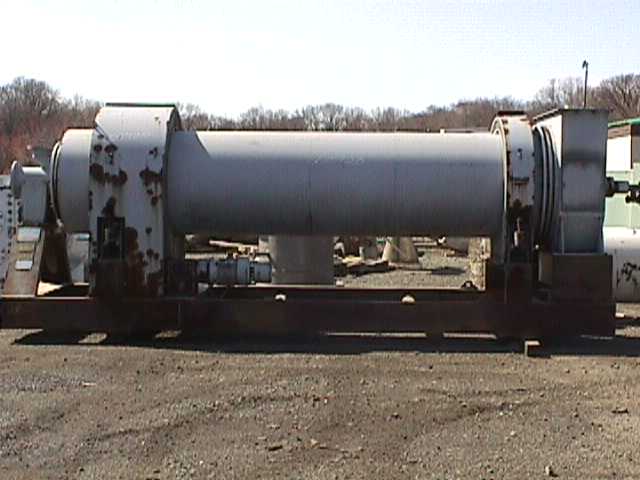

Name: 610 mm (24 in) Stainless Steel 304 Dryer-Rotary Hot Air

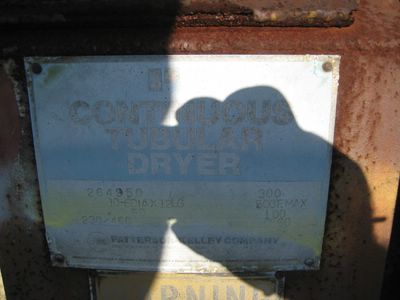

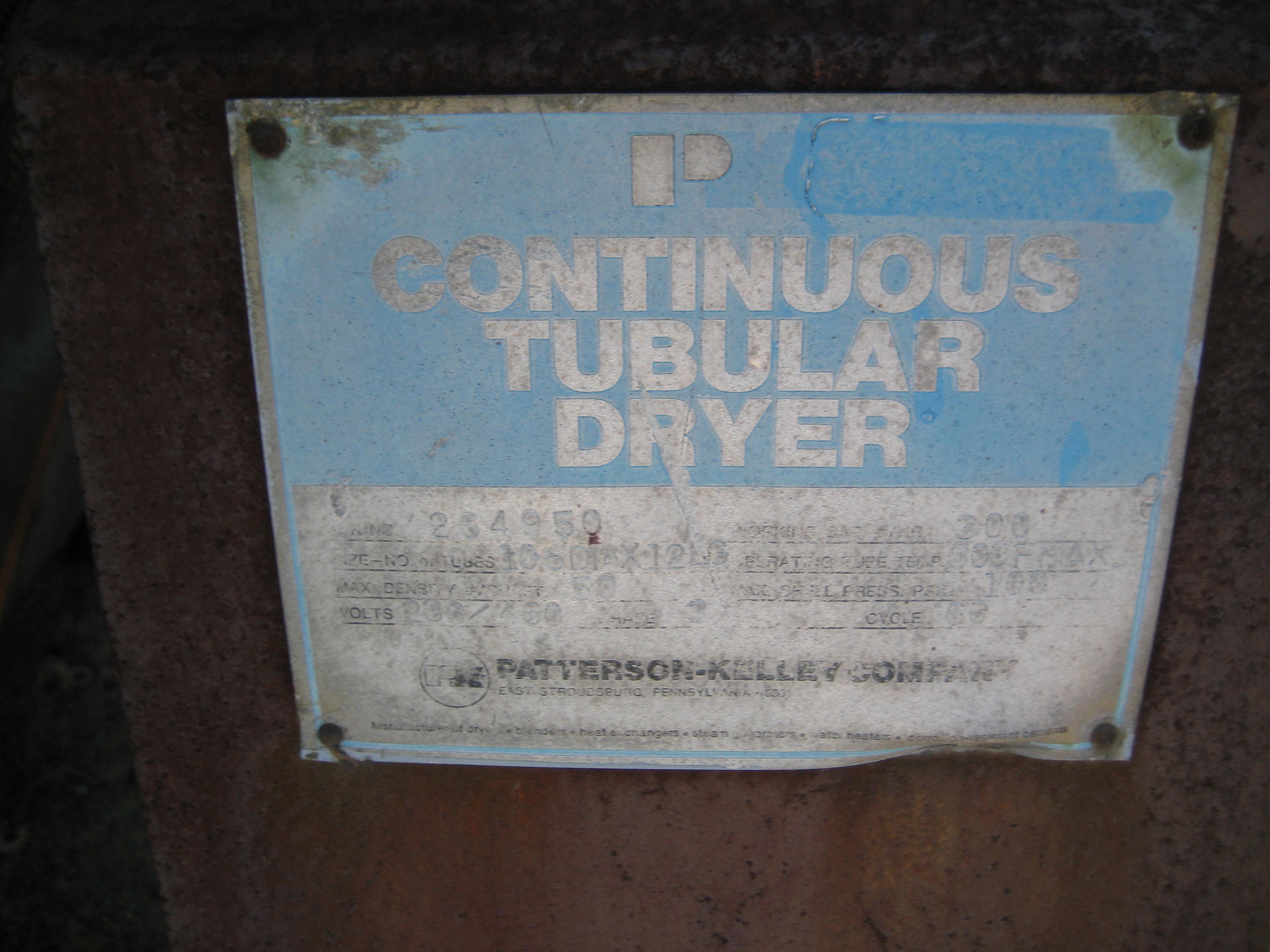

Brand: Patterson Kelly
SKU: 105920

Overview

Type:

Dryer-Rotary Hot Air

Manufacturer:

Patterson Kelly

Condition:

Used

Material:

Stainless Steel 304

Capacity

Diameter:

610 mm (24 in)

Dimensions

Length:

3,650 mm (144 in)

Other Specifications

Temperature:

260 °C (500 °F)

Additional Info:

Max tube operating temp 500 deg F. Shell rated 100 psi. Has (10) 6" dia x 12' long 304SS tubes w/support rods and removable suspension blades centered in each tube. 180 square feet surface area of tubes. 65.9 output rpm gear reducer 8" dia feed nozzle. 8" x 8" discharge w/discharge hood.
